Author: Site Editor Publish Time: 2025-06-18 Origin: Site
Sleeve anchors give you a reliable means of anchoring objects to concrete, brick, or block. You often see these types of fasteners when you need strong support in construction or repairs. Different types of sleeve anchors include standard, hex nut, acorn nut, flat head, heavy-duty, corrosion-resistant, and drop-in. Each type has special features that fit unique jobs. When you compare sleeve anchors to wedge anchors, you find that both offer strong holding power, but sleeve anchors can work in softer materials.
The table below shows how sleeve anchors improve strength in concrete:
Anchor Diameter | Concrete Type | Pull-Out Strength Improvement |
|---|---|---|
M12 | Normal-strength | 1.25 times |
M16 | Normal-strength | 1.42 times |
Wedge anchors and sleeve anchors both meet strict standards, so you get safety and performance you can trust.
Standard sleeve anchors give you a reliable way to fasten objects to concrete, brick, or block. You can use them for many jobs, from hanging shelves to securing heavy equipment. These anchors expand inside the hole when you tighten the nut, gripping the base material tightly. Standard sleeve anchors work well in both solid and hollow materials.
Tip: Standard sleeve anchors keep their strength even in cracked concrete and during earthquakes. Tests show that M10 steel sleeve anchors can handle an average tensile load of 27.92 kN. Their shear capacity increases with deeper embedment and stronger concrete, but only up to a certain point.

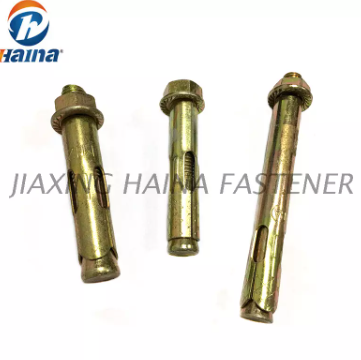

Hex nut sleeve anchors have a hexagonal nut on top. This design lets you use a wrench for easy tightening. You often choose hex nut anchors for projects where you need a strong, secure hold, such as mounting machinery or heavy fixtures. The hex nut shape gives you better grip and control during installation.
You can use hex nut sleeve anchors in places where you need to remove or adjust the anchor later. The hex nut makes this process simple.
Acorn nut sleeve anchors come with a rounded, dome-shaped nut. This nut covers the exposed threads, giving a smooth and finished look. You might pick acorn nut anchors for handrails, signs, or anywhere you want a neat appearance. The acorn nut also protects against snagging or injury from sharp threads.
Acorn nut sleeve anchors work best in visible areas where safety and looks matter.
They offer the same strong grip as other sleeve anchors.
Flat head sleeve anchors have a countersunk head. This means the anchor sits flush with the surface after installation. You use flat head anchors when you want a smooth finish, such as for door frames, window frames, or metal plates.
Flat head sleeve anchors help prevent tripping or catching on the anchor. They also make cleaning and maintenance easier because nothing sticks out.
Heavy-duty sleeve anchors give you extra strength for tough jobs. You use them for structural supports, large machinery, or safety barriers. These anchors have thicker sleeves and stronger materials.
Heavy-duty sleeve anchors resist high loads and harsh conditions.
You can trust them for critical applications where safety is key.
Anchor Type | Failure Rate / Incidence | Ultimate Load (N) | Main Failure Mode | Notes on Performance |
|---|---|---|---|---|
Q-Fix | 1.6% | ~145 | Suture breakage | Best in high-density materials |
JuggerKnot | 10.4% | 239-519 | Anchor pullout | More displacement than Q-Fix |
Y-Knot | Rare cysts | ~146 | Anchor pullout | Varies by bone site |
Iconix | N/A | 313-458 | Mixed (pullout, tear) | Comparable to control anchors |
Control | Low | Up to 431 | Suture breakage | Often outperforms ASAs in some uses |
Note: The table above shows how different anchor types perform under stress. Heavy-duty sleeve anchors often match or exceed the strength of other mechanical expansion fasteners, especially in strong base materials.
Corrosion-resistant sleeve anchors use materials like stainless steel or special coatings. You choose these anchors for outdoor use or damp environments. They resist rust and last longer than regular anchors.
Corrosion-resistant sleeve anchors need less maintenance.
They keep their strength and shape even after years in harsh weather.
Studies show that corrosion-resistant sleeves reduce deflection by about 45% compared to regular anchors. Over 50 years, they lose less strength, which means you spend less time and money on repairs.
Drop-in sleeve anchors work differently from other types. You insert them into a pre-drilled hole, then use a setting tool to expand the anchor inside the hole. Drop-in anchors give you immediate holding power, so you can load them right away.
Drop-in sleeve anchors work well for hanging pipes, ductwork, or suspended ceilings.
They fit standard hole sizes, making installation quick and easy.
Drop-in sleeve anchors cost less to install than chemical anchors. They also work better if you worry about installer mistakes, since they do not need special mixing or curing.
Comparison with Wedge Anchors:
You may wonder how sleeve anchors compare to wedge anchors. Both types give you strong, reliable holds in concrete and masonry. Wedge anchors use a wedge-shaped end that expands when you tighten the nut. This design gives wedge anchors very high holding power, especially in solid concrete.
Sleeve anchors work better in softer or hollow materials, where wedge anchors might not grip as well.
Wedge anchors often require deeper holes and more precise installation.
Sleeve anchors offer more head styles and finishes, so you can match them to your project’s needs.
If you need a mechanical expansion fastener for a wide range of materials, sleeve anchors give you more flexibility. Wedge anchors remain the top choice for maximum strength in solid concrete.
Summary Table: Sleeve Anchors vs. Wedge Anchors
Feature | Sleeve Anchors | Wedge Anchors |
|---|---|---|
Best for | Concrete, brick, block (solid/hollow) | Solid concrete only |
Head styles | Hex, acorn, flat, countersunk | Mostly hex |
Installation | Easier in varied materials | Needs precise hole depth |
Load capacity | High, but less than wedge anchors | Highest in solid concrete |
Removal | Easier to remove or adjust | Permanent, harder to remove |
Corrosion resistance | Available in special versions | Available in stainless steel |
When you choose between the types of sleeve anchors and wedge anchors, think about your base material, load needs, and the look you want.
You can see how sleeve anchors work by looking at their design. Each anchor has a metal sleeve that expands when you tighten the bolt or nut. This expansion grips the base material, giving you an effective and secure hold. The design of sleeve anchors lets you use them in concrete, brick, or block, while wedge anchors work best in solid concrete.
Design features like embedment depth and anchor diameter play a big role in performance. When you increase the embedment depth, you shift the failure mode from concrete breakout to pull-through or steel failure. Larger anchor diameters boost the load capacity, but they may reduce ductility. If you use steel fiber-reinforced concrete, you can improve ductility and post-peak tensile behavior, but you do not always get a higher ultimate load capacity. The way fibers are placed and their length compared to embedment depth also matter. You get the best results when the embedment depth is greater than the fiber length, which helps create a strong and stable connection.
The materials used in sleeve anchors affect their strength and durability. Most sleeve anchors use steel, but you can find versions with stainless steel or special coatings for extra protection. Studies show that adding steel aggregates to the resin anchoring agents increases compressive and shear strength. For example, steel grits can raise compressive strength by 8.4% and shear strength by 17%. Larger and more steel aggregates also increase the ultimate anchoring force and circumferential strain. These changes help sleeve anchors last longer, especially in tough environments. Wedge anchors also use strong materials, but sleeve anchors offer more options for corrosion resistance.
Material Feature | Performance Impact |
|---|---|
Steel aggregates | Higher compressive/shear strength |
Stainless steel/coating | Better corrosion resistance |
Larger aggregates | Increased anchoring force |
You can choose from several head styles when you use sleeve anchors. Common types include hex, acorn, and flat heads. Each style fits different needs. For example, hex heads let you use a wrench for easy tightening, while acorn heads give a smooth finish and protect against injury. Flat heads sit flush with the surface, which helps prevent tripping.
Tests comparing head styles show that new designs, like sliding block anchors, can handle higher loads than traditional T-head bolts. The sliding block design spreads stress better and increases the maximum load capacity. While wedge anchors usually come with a hex head, sleeve anchors give you more choices to match your project.
Tip: Pick the head style that matches your installation needs and the look you want. This helps you get the best performance and appearance.
You see sleeve anchors used in many construction applications. These fasteners help you attach steel beams, support columns, and heavy machinery to concrete or brick. The construction industry relies on sleeve anchors because they work well in both solid and hollow materials. You often choose them over wedge anchors when you need flexibility for different base materials.
Sleeve anchors hold a 50% market share in the industrial sector.
The U.S. construction industry spent $1.57 trillion in 2021, showing a huge demand for reliable fasteners.
Mechanical anchors, including sleeve anchors, are expected to grow from $1.5 billion in 2024 to $2.3 billion by 2033.
You can trust sleeve anchors for their versatility and cost-effectiveness. Advanced manufacturing and digital tools now improve their quality and reliability. You may notice that wedge anchors remain the top choice for solid concrete, but sleeve anchors give you more options for different substrates.
You often need to mount medium- to heavyweight fixtures in homes, offices, or factories. Sleeve anchors make this job safe and easy. You use them to secure shelves, handrails, signs, and even large equipment.
Sleeve anchors expand inside the hole, locking the fixture in place.
You can pick from standard, hex nut, acorn nut, or flat head types to match your application.
The installation process includes drilling, inserting, tightening, and checking for a secure fit.
Tip: Always follow the correct steps during installation. This ensures the anchor holds the fixture safely and prevents accidents.
Wedge anchors also work for fixtures, but you may find them harder to remove or adjust. Sleeve anchors let you change or move fixtures with less effort.
Outdoor applications often expose anchors to rain, humidity, and temperature changes. You want fasteners that resist rust and last for years. Corrosion-resistant sleeve anchors, made from stainless steel or with special coatings, perform well in these conditions.
Coastal regions and harsh environments benefit from these anchors.
Construction codes in Europe, the Middle East, and Africa now require high-grade stainless steel anchors for safety and sustainability.
You may wonder when to use sleeve anchors outside instead of wedge anchors. Choose sleeve anchors if you need flexibility for different materials or want easier removal. Wedge anchors still offer the highest strength in solid concrete, but sleeve anchors give you more head styles and finishes for outdoor projects.
Note: Customizing sleeve anchors for specific substrates and loads improves their effectiveness across all applications.
You should always start by thinking about your project’s needs. The load capacity of your anchor matters most. If your project involves heavy loads or safety-critical items, you need to select the right sleeve anchor that matches those demands. Studies show that non-uniform force distribution can affect anchor performance. Using equal stress tensioning equipment can help you get better results and reduce prestress loss. For projects with uneven loads, you may need to adjust your anchor choice or use special tensioning methods.
Parameter/Factor | Effect on Performance | Impact |
|---|---|---|
Taper difference (0.1°) | Lowers peak shear stress | Up to 40.7% higher bearing capacity |
Preload | Reduces anchor slippage | Improves slippage load |
Adhesive layer | Delays fatigue damage | 61.4% more fatigue resistance |
You need to know what material you will anchor into. Sleeve anchors work well in concrete, brick, and block. They fit light to medium-duty jobs. If you use them in drywall or softer materials, check the anchor’s load capacity. Shield anchors may work better for heavy-duty needs in dense concrete. The table below compares sleeve anchors with shield anchors:
Feature | Sleeve Anchors | Shield Anchors |
|---|---|---|
Strength | Light/Medium loads | Heavy loads |
Material Compatibility | Versatile | Best for dense materials |
Installation | Easier | Needs precise drilling |
Knowing when to use sleeve anchors helps you avoid problems and keeps your project safe.
Environmental conditions can change how sleeve anchors work. If you install anchors outdoors or in damp places, choose corrosion-resistant types. The thickness of the sleeve and the condition of the surrounding material also matter. For example, damage to the rock or concrete can lower the anchor’s strength. You should always match the anchor’s material and thickness to the environment for the best results.
Tip: In harsh environments, stainless steel anchors last longer and keep their strength.
A good installation process makes your anchor strong and safe. Here is a step-by-step guide you can follow:
Drill the hole at least 1/2 inch deeper than the anchor’s embedment.
Clean the hole to remove dust and debris.
Insert the sleeve anchor until the washer touches the fixture.
Tighten the nut by hand, then use a wrench. Do not over-tighten.
Test the anchor by applying a load to check security.
Proper installation techniques, like using the right tools and following manufacturer instructions, help you avoid anchor failure. Always check your work to make sure the anchor holds as expected.
You now know the main types of sleeve anchors and when to use each one.
Standard and hex nut anchors work for most jobs.
Acorn and flat head anchors give a clean look and extra safety.
Heavy-duty and corrosion-resistant anchors handle tough loads and harsh weather.
Drop-in anchors fit special needs like hanging pipes.
Always match the anchor to your project and environment. For safety, check building codes or ask a professional before you start. Proper installation keeps your work secure.
You need to match the anchor size to your fixture and base material. Check the manufacturer’s chart for load ratings. Always drill the hole to the correct diameter and depth for the anchor you select.
Yes, you can remove most sleeve anchors. Unscrew the nut or bolt, then pull out the anchor. Some anchors may leave the sleeve in the hole. You can patch the hole if needed.
The weight a sleeve anchor holds depends on its size, material, and the base. For example, a 3/8-inch steel anchor in concrete can support up to 1,200 pounds. Always check the product’s load chart before use.
Sleeve anchors give you much higher strength than plastic wall plugs. You should use sleeve anchors for heavy loads or masonry. Plastic wall plugs work best for light-duty jobs in drywall or plaster.
