Author: Site Editor Publish Time: 2025-06-09 Origin: Site
When working with concrete, wedge anchors are a reliable solution for securing materials. But what if you need to remove one? Whether you're replacing fixtures or renovating, removing a wedge anchor can seem daunting.
In this post, you'll learn the tools and steps required to safely and efficiently remove a wedge anchor. We’ll guide you through the process and offer helpful tips to avoid common challenges.

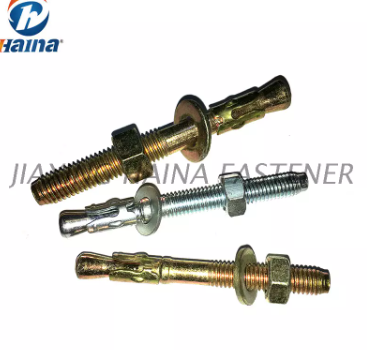

A wedge anchor is a heavy-duty mechanical fastener commonly used for securing materials to solid concrete surfaces. It's a four-part fastener that includes the threaded anchor body, an expansion clip, a nut, and a washer. The wedge anchor bolts are inserted into pre-drilled holes in concrete, and as the nut is tightened, the expansion clip is drawn upwards, creating a wedge effect that secures the anchor against the concrete. This expansion mechanism ensures a tight grip, making the anchor resistant to both pull-out and shear forces.
When you install a wedge anchor, the threaded body is placed into a hole drilled in concrete. As the nut is tightened, the anchor body is pulled upwards, causing the expansion clip to widen and press against the sides of the concrete hole. This creates a mechanical bond that provides a firm and secure hold. The more the nut is tightened, the stronger the grip becomes. This action ensures that the wedge anchor holds the object firmly in place.
Wedge anchors are often used in situations where heavy materials, like machinery or structural supports, need to be fastened securely to concrete, making them a reliable choice in both residential and industrial construction.
There are various reasons why you might need to remove a wedge anchor from concrete:
Renovations and Upgrades: When renovating or upgrading a structure, you may need to replace old fixtures or move machinery that was previously secured with wedge anchors.
Repositioning Fixtures: Sometimes you may need to reposition fixtures, handrails, or equipment to better suit the layout of a room or area. In such cases, removing the existing wedge anchor becomes necessary.
Damaged Anchors: If a wedge anchor has become damaged, worn out, or corroded, it may need to be removed and replaced for safety and performance reasons.
Inspection or Maintenance: Over time, anchors may need to be inspected for structural integrity or adjusted to meet new requirements. This could involve removing the existing anchors.
Understanding when and why you need to remove a wedge anchor is essential for ensuring the safety and stability of the structure you are working with.
Before starting the process of removing a wedge anchor, it’s essential to gather the correct tools. Using the right tools not only speeds up the job but also ensures that the process is completed safely and without causing damage to the surrounding concrete.
Hammer and Punch/Drift Pin: These tools are used to drive the wedge anchor out of the concrete. The punch helps you apply direct force to the anchor without damaging the surrounding material.
Wrench: If the wedge anchor is secured with a nut, you’ll need a wrench to loosen and remove the nut. Make sure you don’t damage the threads when removing the nut.
Carbide Drill Bit: If the wedge anchor is particularly stubborn or rusted, you may need to use a carbide drill bit to drill out the anchor. This tool is essential for removing anchors that cannot be manually pried out.
Impact Driver (Optional): For tougher cases where the wedge anchor is particularly tight or rusted, an impact driver can provide additional force to break it loose.
Gloves: Always wear gloves to protect your hands from sharp edges and debris during the removal process.
Safety Goggles: Safety goggles protect your eyes from flying debris that might occur when using the hammer or drill.
Dust Mask: If drilling is required, a dust mask is crucial to prevent inhalation of dust particles from the concrete and anchor material.
Having the right equipment ensures that the wedge anchor removal process goes smoothly and safely.
Removing a wedge anchor is not as difficult as it might sound. By following the correct steps, you can efficiently remove the anchor and prepare the hole for a new installation if needed. Here’s a step-by-step guide to help you through the process:
Before you begin the removal process, take the time to assess the condition of the wedge anchor and the surrounding concrete. Check for signs of corrosion, rust, or other damage. If the anchor appears to be in good condition, the removal process will be much simpler. However, if it is severely rusted or embedded deeply in the concrete, you might need to take additional steps.
Additionally, inspect the surrounding concrete for cracks or any signs of structural weakness. If the concrete is compromised, proceed with caution, as forceful removal could cause further damage.
If the wedge anchor is still secured with a nut, begin by loosening it. Use a wrench to turn the nut counterclockwise until it is loose enough to remove. In cases where the nut is stuck or rusted, you may need to apply a penetrating oil to loosen it. Be careful not to damage the threads of the wedge anchor bolts as you remove the nut.
Once the nut is removed, you can proceed with driving the wedge anchor out of the hole. Use a hammer and a punch or drift pin to tap the anchor out. Gently tap the wedge anchor body with the hammer until it loosens. This should help dislodge the anchor from the concrete hole.
Be cautious during this step, as applying too much force can crack the concrete or cause unnecessary damage. The goal is to tap gently and apply consistent force until the anchor starts to loosen.
In some cases, especially with rusted or deeply embedded anchors, tapping with a hammer and punch might not be enough. In such cases, you can use a carbide drill bit to drill through the center of the anchor. Begin by carefully drilling a hole in the center of the wedge anchor to weaken it and make it easier to remove.
Once the anchor has been drilled, use a hammer and punch to remove the remaining pieces from the hole. Drilling should only be used as a last resort when other methods fail.
After successfully removing the wedge anchor, the next step is to clean the hole. Use a vacuum, wire brush, or compressed air to remove any dust or debris left behind. A clean hole is vital for ensuring the proper installation of a new anchor if needed.
Cleaning the hole also prevents any remaining debris from obstructing the expansion mechanism of a new wedge anchor when it’s inserted.
Even though removing a wedge anchor is typically a straightforward process, certain challenges can arise. Here are some of the most common issues you may face:
If the wedge anchor is rusted or deeply embedded in the concrete, it can be difficult to remove. In these cases, using an impact driver or a powerful hammer may help loosen the anchor.
When removing an anchor, it’s possible to inadvertently damage the concrete. If you’re using too much force or tapping too hard, the surrounding material can crack. To minimize this risk, always use controlled, steady motions and avoid excessive force when tapping with the hammer.
Sometimes, the expansion clip inside the wedge anchor may become wedged so tightly into the concrete that it’s hard to remove. If you encounter this problem, drilling through the anchor may be the most effective solution.
After removing the wedge anchor, it's essential to ensure that the surrounding concrete remains intact and that the area is ready for a new wedge anchor installation.
To avoid damaging the concrete during the removal process, use the correct tools and techniques. Tapping gently and using the right amount of force will help prevent any unnecessary cracks or chips in the concrete.
If the hole is clean and undamaged, it might be possible to reuse it for a new wedge anchor. However, if the hole has been enlarged or damaged during removal, you’ll need to drill a new hole for the new anchor.
After removing the wedge anchor, inspect the concrete for any cracks, chips, or other signs of structural weakness. If the concrete has been compromised, repair the area before proceeding with a new installation.
Removing a wedge anchor is manageable with the right tools and techniques. Whether you're handling concrete wedge anchors or using a wedge anchor removal tool, this guide covers all the necessary steps. By following proper procedures, you can ensure safe removal and prepare for a new wedge anchor installation. Haina offers a wide range of high-quality wedge anchors. If you have any needs, feel free to consult with our experts.
A: No, wedge anchors are typically designed for single-use only. Once removed, they should be replaced with a new one to ensure safety and reliability.
A: If you damage the concrete during removal, you may need to repair the hole before you can install a new wedge anchor.
A: Proper installation and maintenance can help minimize issues. Use corrosion-resistant wedge anchors, ensure the correct size is chosen for the job, and check the surrounding concrete regularly.
A: Yes, you can replace a wedge anchor with a different type of anchor if the new anchor fits the hole size and is appropriate for the application.
