Author: Site Editor Publish Time: 2025-06-16 Origin: Site
When working with concrete, securing fixtures or machinery is essential. Using the right drill bit for a 1/2 wedge anchor can make all the difference.
In this post, we’ll discuss the best drill bit size for 1/2 wedge anchor, why it’s crucial for secure installation, and provide a step-by-step guide to ensure durability and proper installation.

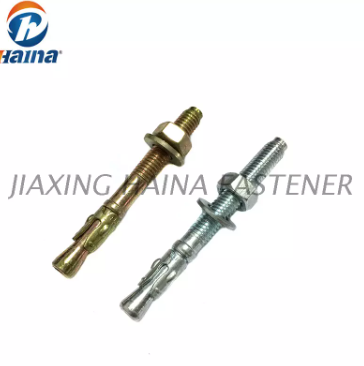

A wedge anchor is a mechanical device used to secure objects to concrete surfaces. Its design features a threaded shaft, a wedge-shaped end, and a nut and washer. The expansion of the anchor happens when the nut is tightened, pulling the wedge end into the fixture, thereby creating a secure bond with the surrounding concrete. Wedge anchors are suitable for a variety of applications, from securing machinery to structural supports or even handrails.
The 1/2 wedge anchor is a common size used in many construction and DIY projects due to its balance of strength and ease of installation. However, for it to work effectively, the correct drill bit size is necessary to ensure that the anchor fits and performs optimally.
Using the correct drill bit size for 1/2 wedge anchor is essential for a successful installation. The purpose of the drill bit is to create a hole in concrete that is just the right size to allow the wedge anchor to fit securely. If the hole is too small, the anchor won't fit properly, and if the hole is too large, the anchor won’t expand enough to hold the fixture securely.
The ideal drill bit size for a 1/2 wedge anchor is 5/8 inches. Here’s why this size works best:
Ensures Proper Expansion: A 5/8-inch drill bit allows the anchor’s wedge to expand correctly, ensuring a secure hold within the concrete.
Allows for Precision: This size accounts for minor variations in anchor and hole sizes, ensuring the installation is tight and secure.
Prevents Anchor Slippage: A correctly sized hole ensures that the wedge anchor will be able to grab onto the concrete surface firmly, preventing any unwanted movement or slippage over time.
The 1/2 wedge anchor refers to the diameter of the anchor itself, but the size of the hole needed for installation is slightly larger. The 5/8-inch drill bit size allows the wedge anchor to have enough room to expand without being loose. It’s always important to match the drill bit size to the anchor size for optimal installation results.
When installing wedge anchors, the choice of drill bit is crucial. The drill bit for wedge anchors should be selected based on its material and durability to handle the hard concrete surfaces effectively. For 1/2 wedge anchors, it’s essential to use a high-quality drill bit specifically designed for drilling into concrete.
The best drill bits for concrete are carbide-tipped drill bits. These are designed to withstand the tough task of drilling through hard materials like concrete. Here’s why carbide-tipped bits are ideal for wedge anchor installation:
Durability: Carbide-tipped bits are incredibly durable and resistant to wear. They maintain their sharpness even after prolonged use, ensuring consistent performance.
Heat Resistance: These drill bits resist heat buildup, preventing them from becoming dull during drilling and allowing for precise hole creation.
Efficiency: Carbide bits are highly efficient at cutting through concrete, making the process faster and less strenuous on the user.
The length of the drill bit also plays an important role in the installation. When drilling for wedge anchors, the hole must be deep enough to allow the anchor to fit and expand fully. For 1/2 wedge anchors, the depth of the hole should be at least 1/2 inch deeper than the length of the anchor. This extra depth ensures that the anchor is embedded deep enough into the concrete for secure fastening.
Now that we’ve covered drill bit selection and size, let’s look at the process for installing wedge anchors. A well-installed wedge anchor will provide a secure and long-lasting connection between fixtures and concrete surfaces.
Before you start drilling, carefully measure and mark the exact spot where the wedge anchor will be placed. Accurate placement ensures that the fixture will align properly with the anchor, preventing any misalignment issues during installation. Double-check your measurements to ensure precision.
Using a 5/8-inch carbide-tipped drill bit, start drilling at a slow speed. It’s important to use a hammer drill or rotary hammer drill for drilling into concrete, as these tools provide the necessary impact and rotation to drill effectively.
Drill at the right depth: As mentioned earlier, the hole should be at least 1/2 inch deeper than the length of the 1/2 wedge anchor.
Ensure precision: The hole should be straight and perpendicular to the surface. A slightly angled hole may prevent the anchor from fitting properly and securely.
After drilling, it’s crucial to clean the hole to remove any debris, dust, or particles. Leftover dust can interfere with the expansion of the wedge anchor and reduce its holding power.
Use compressed air, a vacuum, or a dust extractor to clear the hole.
Ensuring the hole is clean will improve the wedge anchor’s ability to expand and grip the concrete surface firmly.
Insert the wedge anchor into the drilled hole. For 1/2 wedge anchors, ensure that the wedge anchor bolts are inserted with the wedge end facing the concrete surface. This is crucial because the wedge expansion is what creates the strong hold in the concrete.
Position the washer over the anchor and thread the nut onto the anchor.
Make sure the anchor is fully inserted before moving to the next step.
Using a torque wrench, tighten the nut onto the wedge anchor. Tightening the nut will cause the wedge end of the anchor to expand, ensuring a tight grip on the concrete surface.
Apply the recommended torque to secure the anchor. This helps avoid over-tightening, which can damage the concrete or anchor, and under-tightening, which could result in a loose fit.
Even when equipped with the right tools and proper preparation, several common mistakes can significantly affect the wedge anchor installation process. Being aware of these pitfalls and taking steps to avoid them will ensure your installation is secure and durable.
One of the most frequent mistakes during wedge anchor installation is using the wrong drill bit size. For 1/2 wedge anchors, the recommended drill bit size is 5/8 inches. If you use a drill bit that is too small, the wedge anchor won’t fit into the hole properly. A tight fit could prevent the anchor from expanding and securing the fixture correctly. On the other hand, if the hole is too large, the anchor will not expand sufficiently to hold the fixture in place. It is essential to use the correct drill bit size to achieve a secure fit and ensure the anchor's expansion mechanism works as intended.
Cleaning the drilled hole is an often-overlooked step, but it’s crucial for a successful wedge anchor installation. Dust, debris, and loose concrete particles can accumulate in the hole during the drilling process. If not cleaned out, these contaminants can interfere with the anchor’s expansion, reducing its ability to secure itself properly in the concrete. A clean hole ensures that the wedge anchor fits tightly and that the expansion mechanism works efficiently, providing a strong and durable hold. To clean the hole, use a vacuum, compressed air, or a dust extractor to remove all debris before inserting the anchor.
Properly tightening the wedge anchor is crucial for the anchor’s performance and the safety of the installation. Over-tightening the nut can lead to damage, such as cracking the concrete or stripping the threads on the anchor. On the other hand, under-tightening can result in a loose fit, causing the anchor to slip over time and potentially leading to the failure of the fixture. Always follow the manufacturer’s torque specifications for the correct tightening procedure. Using a torque wrench ensures that you apply the right amount of pressure and achieve a secure, long-lasting installation.
In summary, wedge anchors are crucial for securing fixtures to concrete, and using the correct drill bit size for 1/2 wedge anchor is essential for a secure fit. A 5/8-inch drill bit ensures proper anchor expansion. By following correct installation steps, you can achieve a long-lasting, secure connection with your wedge anchors.
Haina offers a wide range of high-quality wedge anchors. If you have any needs, feel free to consult with our experts.
For a 1/2 wedge anchor, use a 5/8-inch drill bit. This size ensures the anchor fits securely and expands properly.
The depth of the hole should be at least 1/2 inch deeper than the anchor’s embedment depth to ensure that the anchor is fully seated and secure in the concrete.
Common sizes for wedge anchors include 1/4 wedge anchors, 3/8 wedge anchors, and 1/2 wedge anchors. Each of these anchors requires a specific drill bit size to ensure a proper fit.
To check the hole depth, use a measuring tool to confirm that the hole is at least 1/2 inch deeper than the required embedment depth for your specific wedge anchor.
No, different wedge anchors require different drill bit sizes. For 1/2 wedge anchors, a 5/8-inch drill bit is recommended, while smaller anchors like 3/8 wedge anchors require smaller drill bits.
