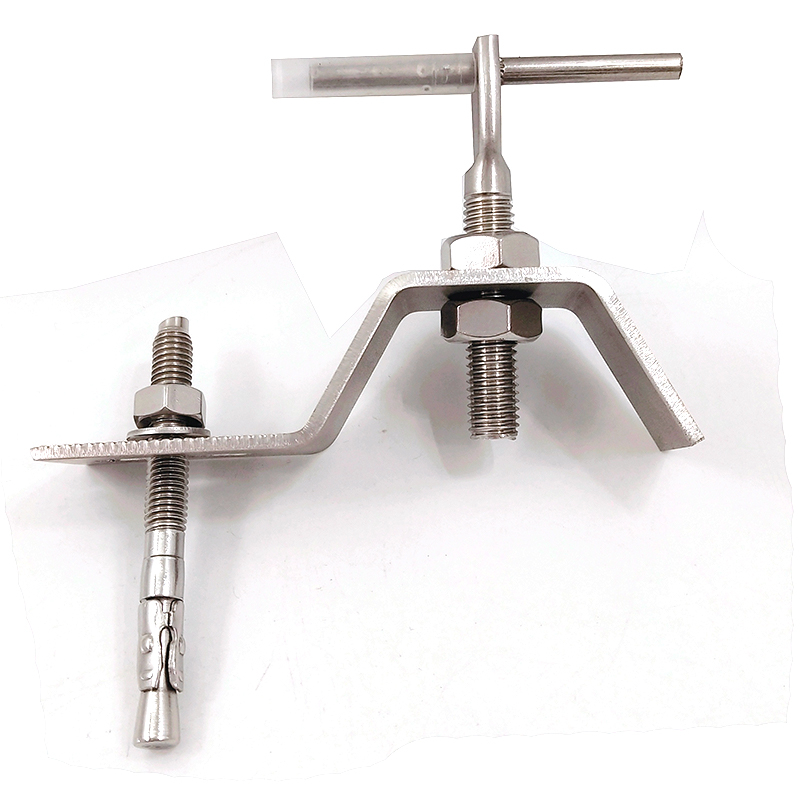

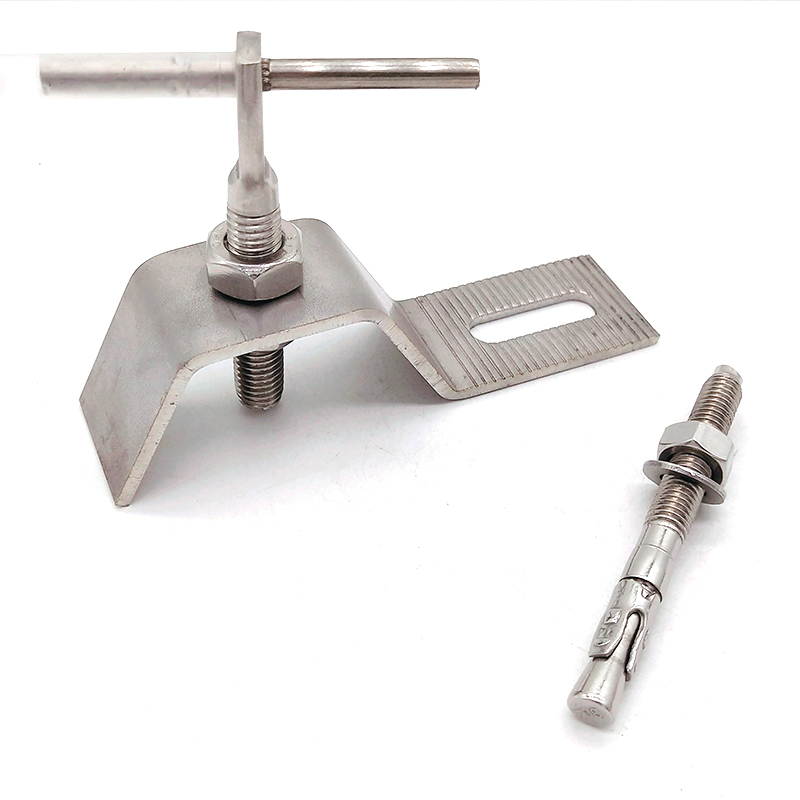

Wedge Anchor
HNF
2020092703
product feature
This product has long thread and is easy to install. It is usually used in heavy load facilities.
To get a reliable, huge tightening force, you have to make sure that the clip ring that's attached to the gecko is fully inflated.
And the expansion clip ring should not fall off the rod or distort in the hole.
The calibrated tension values were all tested under the condition of cement strength 260~300kgs/cm2, and the maximum safety load should not exceed 25% of the calibrated value.
application fields
Suitable for concrete and dense natural stone, metal structure, metal profile, bottom plate, support plate, bracket, baluster, window, curtain wall, machine, girder, girder, bracket, etc.
Advantage
1. Anchors are fixed directly on to concrete walls with expansion bolts.
2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load
bearing carrying half.
3. The weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining
against wind suction and pressure.
4. In vertical joints installation slabs are pinned at the left and right
sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab.
Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top
are restraint anchors holding the slabs and restraining against wind suction and pressure.
Products name | Stainless Steel Sleeve Anchor Curtain Wall Wedge Anchor for Stone Cladding Marble Angle Fixing | ||||||
Standard: | DIN,ASTM/ASME,JIS,EN,ISO,AS,GB | ||||||
Material | Stainless Steel: SS304, SS316; Aluminum | ||||||
Finishing | plain, polishing, hot dip galvanized ( HDG ) | ||||||
Applied Cladding | Stone, granite, marble, tile, terracotta, ceramics, glass, aluminum | ||||||
Type | T type, L type, Y type, R type, SE type | ||||||
Production Process | Cold Froging,Hot Forging,Machining and CNC for Customized fastener | ||||||
Customized Products Lead time | Busy season:15-30days,Slack seaon:10-20days | ||||||
Fress Samples for standard fastener | |||||||
For more information visit: www.hainafastener.com |
Wedge Anchor Material and Chemical Composition:
Material NO. | C | Si | Mn | P | S | Ti |
Q500 | 0.18 | 0.6 | 0.03 | 0.06 | 0.025 | 0.2 |
Q345 | 0.2 | 0.5 | 0.035 | 0.045 | 0.035 | 0.2 |
Q550 | 0.18 | 0.6 | 0.03 | 0.045 | 0.03 | 0.2 |
About us
Jiaxing Haina Fastener co. Ltd was established in 2010, located in the hometown of fasteners jiaxing city. We solemnly commitment, first-grade quality, timely delivery guaranteed Reasonable price and service paramount, forward to the operation principle of quality first and customer first, pursuit of excellence to create first-class brand, our aim is brand promoting development, management promoting earnings, warmly greeting home and abroad new and old customers to communicate and cooperate to seek greater success and brilliant future.
Certification
Through scientific management, Jiaxing Haina fastener Ltd company has been obtained
ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of
Make in China.
