Author: Site Editor Publish Time: 2025-06-14 Origin: Site

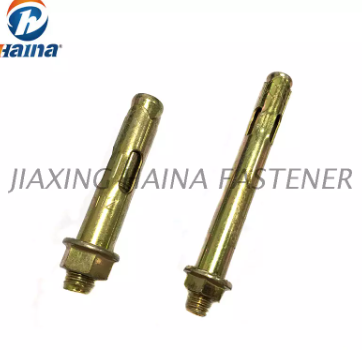

Sleeve anchors hold things to hard surfaces like concrete or brick. These fasteners expand in a drilled hole to stay tight. They work well even with repeated loads, as tests show they perform predictably. But, if installed wrong, the concrete can crack or break. Following the instructions helps keep them safe and effective on different materials.
Sleeve anchors are tools used to attach things to hard surfaces like concrete, brick, or stone. They are made of several important parts that work together to hold objects tightly:
Part | What It Does |
|---|---|
Nut | Holds the anchor firmly in place. |
Washer | Spreads out pressure and protects the surface from damage. |
Metal Sleeve | Expands to grip the hole when installed. |
Threaded Stud | A rod that tightens and makes the sleeve expand. |
Types of Heads | Shapes like hex, flat, or round; they don’t change strength. |
Each piece is important for keeping the anchor secure. The metal sleeve is key because it expands inside the hole, locking the anchor in place.
Knowing how sleeve anchors work helps you use them correctly. These fasteners hold things by expanding inside a drilled hole. Here’s how they work:
Drill a hole into the hard surface, like concrete or brick.
Put the sleeve anchor into the hole.
Tighten the bolt, which pulls the cone-shaped end upward.
This makes the sleeve spread out and press against the hole’s walls.
This process keeps the anchor tight, even with heavy weight or repeated use.
Pick the right sleeve anchor based on your project. Different designs work best for different jobs:
Hex Head Sleeve Anchors: Great for general use and easy to tighten with a wrench.
Flat Head Sleeve Anchors: Best for smooth finishes where the head sits flush.
Acorn Head Sleeve Anchors: Look nice while staying strong.
Round Head Sleeve Anchors: Used when a rounded finish is needed.
All types work by expanding to hold objects securely to solid surfaces.
Before you begin, gather the necessary tools to ensure a smooth installation process. Having the right equipment will save time and help you achieve proper installation. Here’s what you’ll need:
Drill: A hammer drill works best for concrete or masonry surfaces.
Drill Bits: Use a carbide-tipped bit that matches the diameter of the sleeve anchor.
Vacuum or Air Blower: For cleaning out dust and debris from the drilled hole.
Wrench or Socket Set: To tighten the sleeve anchor bolt securely.
Tape Measure: To measure the correct depth and placement of the hole.
Marker or Pencil: For marking the drilling spot.
Tip: Double-check that your tools are in good working condition before starting. Using a dull drill bit or a faulty wrench can make the process harder and less effective.
Drilling the hole is a critical step in this step-by-step guide. Follow these instructions to ensure accuracy:
Mark the Spot: Use a marker or pencil to indicate where you want to install the sleeve anchor. Ensure the location aligns with your project’s requirements.
Select the Right Drill Bit: Match the drill bit size to the diameter of the sleeve anchor. This ensures a snug fit.
Set the Depth: Measure the length of the sleeve anchor and mark the drill bit with tape to avoid drilling too deep.
Drill the Hole: Hold the drill perpendicular to the surface. Apply steady pressure and drill to the marked depth.
Note: Avoid wobbling the drill, as this can create an uneven hole and compromise the anchor’s grip.
Cleaning the hole is often overlooked but plays a vital role in ensuring the sleeve anchor holds securely. Dust and debris can prevent the anchor from expanding properly. Here’s how to clean the hole effectively:
Use a Vacuum or Air Blower: Remove all loose particles from the hole. A clean hole ensures the sleeve anchor expands evenly.
Inspect the Hole: Check for any remaining debris or irregularities. If needed, repeat the cleaning process.
Test Fit: Insert the sleeve anchor into the hole to confirm it fits snugly.
Pro Tip: Never skip this step. A poorly cleaned hole can weaken the anchor’s grip and reduce its load-bearing capacity.
By following these steps, you’ll set a strong foundation for the rest of the installation process. This step-by-step guide ensures that you install sleeve anchors correctly and securely.
After cleaning the hole, place the sleeve anchor inside. This step ensures it fits tightly and lines up correctly. Follow these simple steps for proper placement:
Check the Anchor: Look for any damage or flaws. A broken anchor won’t expand properly.
Position the Anchor: Make sure the threaded stud faces outward. This lets you attach items securely later.
Push the Anchor In: Insert the sleeve anchor into the hole. Press firmly to ensure a snug fit. If it doesn’t go in smoothly, recheck the hole’s size and depth.
Tap Lightly: Use a hammer to gently tap the anchor until the washer and nut sit flat on the surface. Don’t hit too hard, as this could cause damage.
Tip: Choose the right type of sleeve anchor for your project. For example, hex head anchors are good for general use, while flat head anchors work best for flush finishes.
Always use sleeve anchors with materials like concrete. Follow safety rules, such as keeping proper spacing and depth, to avoid problems.
The last step is tightening the sleeve anchor bolt. This makes the anchor expand fully and hold the object firmly. Here’s how to do it:
Get the Right Wrench: Use a wrench or socket that fits the bolt size. This prevents slipping and ensures even tightening.
Tighten the Nut: Turn the nut clockwise. This pulls the cone-shaped end upward, making the metal sleeve expand against the hole walls.
Go Slowly: Tighten the bolt gradually. Don’t over-tighten, as this can damage the threads or material.
Test the Anchor: Once tight, gently pull on the attached object. It should stay firmly in place.
Note: Torque is important for proper tension. Most torque comes from friction at the bearing face and threads, while only 10% creates bolt tension. Surface finish and coatings can also affect torque.
Factor | Torque Contribution (%) |
|---|---|
Friction at bearing face | 50% |
Friction at thread contact | 40% |
Useful for bolt tension | 10% |
By following these steps, you’ll tighten the sleeve anchor correctly. This ensures it stays secure and supports heavy loads safely.
Picking the right sleeve anchor depends on a few things. Think about the surface material, the weight it will hold, and where you’ll install it. Hard surfaces like concrete or brick need strong, durable anchors. Softer materials can use lighter-duty anchors.
Check the size and diameter of the anchor. Bigger anchors hold more weight but need deeper holes. Measure the object’s thickness to ensure the anchor is long enough.
Anchor quality is also important. High-quality, ETA-approved anchors work better in tough conditions. These anchors keep most of their strength, even if installed poorly. Low-quality anchors can lose up to 76% of their strength when installed wrong. Using good anchors ensures safety and reliability.
Tip: Always read the manufacturer’s instructions to pick the right anchor for your project.
Knowing how much weight an anchor can hold is key. Each anchor has a limit. Going over this limit can make the anchor fail and cause accidents. Check the load capacity in the manufacturer’s guide.
Where you install the anchor matters too. For overhead setups, use stronger anchors. Horizontal installations may need anchors with special head shapes for better grip.
Spacing between anchors is also important. If they’re too close, the material can weaken, reducing strength. Keep enough space to spread the weight evenly.
Note: Use sleeve anchors for heavy loads or critical jobs. Strong anchors are safer for these tasks.
The environment can affect how well sleeve anchors work. Moisture, temperature changes, and chemicals can weaken them. For outdoor use, pick anchors made of stainless steel or galvanized steel to prevent rust.
Extreme temperatures can also cause problems. In freezing weather, anchors might not expand fully. In hot areas, use anchors that can handle heat without losing strength.
If the area has chemicals or saltwater, choose anchors with protective coatings. These coatings stop corrosion and make the anchors last longer.
Pro Tip: Check anchors regularly for damage. Replace any that show rust or wear to keep things safe.
Picking the right material and head type for your sleeve anchor is important. It helps make sure the anchor lasts and works well. Different options are better for certain jobs and environments. Let’s look at the main points.
The material of a sleeve anchor affects its strength and resistance to rust. Here are the common materials you’ll find:
Zinc-Plated Steel:
These anchors are good for indoor use. They resist rust in dry areas but can corrode in wet or outdoor spaces. Use them for light tasks like hanging shelves inside.
Stainless Steel:
Stainless steel anchors don’t rust easily, so they’re great for outdoor or damp places. They work well in bathrooms, kitchens, or near the ocean.
Galvanized Steel:
Galvanized steel anchors have a zinc coating to fight rust. They are good for outdoor use and can handle some moisture.
Carbon Steel:
Carbon steel anchors are very strong and used for heavy jobs. But they need a coating to stop rust in wet conditions.
Tip: For tough environments, like factories or places with chemicals, pick stainless steel or galvanized steel. These materials last longer.
The head type of a sleeve anchor changes how it looks and works. Here’s a simple guide to common head types:
Head Type | What It Looks Like | Best Use |
|---|---|---|
Hex Head | Six-sided head, easy to tighten with a wrench. | Everyday tasks where looks don’t matter much. |
Flat Head | Lies flat with the surface for a smooth finish. | Projects needing a clean look, like furniture or decorations. |
Acorn Head | Rounded, dome-shaped head for a polished appearance. | Decorative jobs where style is important. |
Round Head | Slightly raised, rounded head for a mix of strength and style. | Jobs needing both looks and durability. |
Each head type has a special purpose. Hex heads are strong and good for heavy tasks. Flat heads are better when you want the anchor to blend in.
Note: Match the head type to your tools. Using the wrong tool can damage the anchor or make it hard to install.
Think about the environment, weight the anchor will hold, and how it will look. For outdoor or wet areas, pick stainless steel or galvanized steel. For indoor jobs, zinc-plated steel works fine. Also, choose a head type that fits your project’s needs for strength and appearance.
By knowing these options, you can pick the best sleeve anchor for your job. This ensures your project is strong, long-lasting, and looks good.
Picking the wrong hole size is a frequent mistake. A hole that’s too small makes the anchor hard to fit. If the hole is too big, the anchor won’t expand properly. This can cause a weak hold and possible failure.
To fix this, use a drill bit that matches the anchor size. Check the manufacturer’s guide for exact measurements. Use a tape measure to ensure the hole is the right depth. A correct hole size helps the anchor fit tightly and work well.
Tip: Try placing the anchor in the hole before tightening. If it feels loose, check the hole size again and adjust.
Skipping hole cleaning can weaken the anchor’s grip. Dust and debris inside the hole stop the anchor from expanding fully. This makes the connection less secure.
After drilling, clean the hole with a vacuum or air blower. Look inside to make sure it’s clear of dirt. A clean hole helps the anchor expand evenly and hold firmly.
Pro Tip: Clean the hole right after drilling. This stops debris from settling and ensures a strong installation.
Using the wrong sleeve anchor can cause problems. Each anchor is made for specific materials, weights, and conditions. For example, zinc-plated anchors can rust outdoors.
Pick an anchor based on the material and environment. Stainless steel or galvanized anchors are better for wet or outdoor areas. Zinc-plated anchors work for light indoor tasks. Always check the weight limit and head type for your project.
Note: Follow the manufacturer’s instructions to pick the right anchor. This avoids mistakes and keeps your project safe.
Skipping safety rules when using sleeve anchors can be dangerous. These rules keep you, your project, and others safe. Not following them can cause accidents, damage, or even legal trouble.
Here are key safety rules to always follow:
Minimum Edge Distance: Keep anchors away from edges. Placing them too close can crack or weaken the material.
Anchor Spacing: Leave enough space between anchors. Crowding them can reduce strength and stability.
Load Limits: Don’t exceed the weight limit given by the manufacturer. Overloading can make the anchor fail and cause harm.
Proper Tools: Use the right tools for the job. Wrong tools can damage the anchor or surface.
Important: Always wear safety gear like goggles and gloves. This protects you from dust, debris, and sharp edges.
Not following these rules might cancel the warranty. If something breaks, you may not get help or a replacement.
To stay safe, read the instructions before starting. Check your tools, measurements, and materials twice. If unsure, ask an expert for advice.
By following safety rules, your installation will be strong and secure. This keeps everyone safe and avoids problems later.
Tip: Make safety your top priority. A little care now can save big issues later.
Always follow the maker’s instructions for sleeve anchors. These rules explain how much weight the anchor can hold, how deep to install it, and how tight to make it. Skipping these steps can cause weak installation or poor performance.
Before you begin, read the manual or product label carefully. Look for the right drill bit size and the minimum distance from edges. These details help the anchor stay secure and protect the material. If you’re confused, check the maker’s website or ask customer support for help.
Tip: Keep the manual nearby while working. It’s useful for quick answers and solving problems.
Check your sleeve anchors often to make sure they’re still strong and safe. Over time, weather or heavy use can loosen them or make them weaker.
Look for rust, cracks, or loose bolts. Use a wrench to see if the anchor is tight. If you find problems, replace the anchor right away to avoid accidents. For important projects, inspect the anchors every few months to keep them safe.
Pro Tip: Write down inspection dates and repairs in a log. This keeps you organized and ready for future checks.
Rust can make sleeve anchors weak and unsafe. To stop this, pick anchors made of stainless steel or galvanized steel for wet or outdoor areas.
Keep the area clean and dry when possible. If the anchors might get wet, add a protective coating or sealant to stop rust. In places with high moisture or chemicals, check the anchors more often to catch rust early.
Note: Preventing rust helps the anchors last longer and keeps your project safe.
Keeping sleeve anchors tight is important for their strength and safety. Over time, things like shaking, temperature changes, or heavy use can loosen them. Regular checks help keep them secure and working properly.
Sleeve anchors need the right tension to hold things tightly. If the material or threads loosen, the anchor’s grip weakens. Tightening them again restores strength and prevents accidents from loose anchors.
Here’s how to tighten sleeve anchors the right way:
Check the Anchor: Look for rust, cracks, or damage. Replace broken anchors.
Use Proper Tools: Pick a wrench or socket that fits the bolt size. This avoids slipping and ensures even tightening.
Follow Torque Rules: Tighten the bolt to the torque level in the manual. Don’t over-tighten, as it can cause damage.
Limit Tightening Times: Only re-tighten the anchor up to three times. Check the manual for exact advice.
Tip: Clean around the anchor before tightening. Dirt can stop it from holding properly.
To keep sleeve anchors in good shape, follow these tips:
Plan Inspections: Check anchors often, especially in areas with heavy use. Look for loose bolts or rust.
Prevent Loosening: Tighten anchors regularly to keep them strong. This is key for anchors under heavy loads or vibration.
Read the Manual: Follow the maker’s guide for tightening and care instructions.
Maintenance Task | How Often | Why It’s Important |
|---|---|---|
Check for damage | Every 3-6 months | Spot rust or wear early |
Tighten bolts | As needed (max 3x) | Keep tension and strength |
Replace bad anchors | Right away | Ensure safety and reliability |
By doing these steps, you’ll make sleeve anchors last longer and work better. Proper care and tightening keep your projects safe and steady.
Sleeve anchors are a reliable way to attach things to hard surfaces. They work well for many jobs, from small tasks to heavy-duty projects. Installing and taking care of them properly helps them last longer. Research shows that safety codes and tools might not always be accurate. For instance, tests found a 20% difference between real results and model predictions. Codes also guessed shear strength to be up to one-third higher than it really was.
Type of Evidence | What Was Found | Difference Noted | Final Thought |
|---|---|---|---|
Test Results | Predictions were off by 20%. | Codes guessed shear strength too high. | Codes may not fully measure safety. |
By following instructions and avoiding mistakes, sleeve anchors can work better and last longer.
Sleeve anchors work best on solid surfaces like concrete, brick, and stone. Avoid using them on soft or hollow materials, as they may not provide enough grip for secure installation.
Match the drill bit size to the diameter of the sleeve anchor. For example, if the anchor is 3/8 inch, use a 3/8-inch drill bit. Always check the manufacturer’s instructions for accuracy.
No, sleeve anchors are designed for single-use only. Once removed, they lose their ability to expand and hold securely. Use a new anchor for any reinstallation.
Keep at least 10 anchor diameters of space between each anchor. For example, if the anchor is 1/2 inch in diameter, maintain a minimum of 5 inches between anchors to avoid weakening the material.
Check the hole size and depth. Ensure the hole is clean and free of debris. If the anchor still doesn’t tighten, it may be defective. Replace it with a new one to ensure safety.
