Author: Site Editor Publish Time: 2025-06-02 Origin: Site
Have you ever wondered how wedge anchors hold things so securely in concrete? These fasteners are essential in various industries, from construction to machinery. Understanding how do wedge anchors work is key to ensuring your projects are both safe and successful.
In this post, we’ll dive into the mechanism behind wedge anchors, explain the installation process, and explore their many benefits and uses. By the end, you’ll have all the information you need to use wedge anchors effectively in your own projects.

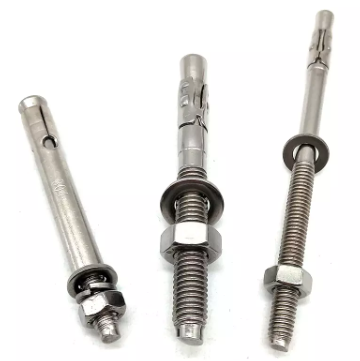

Wedge anchors are mechanical fasteners specifically designed for securely attaching objects to solid concrete surfaces. They are made up of a threaded body, an expansion clip, a nut, and a washer. These anchors are known for their ability to provide a strong and durable bond by expanding within the concrete when tightened. This expansion mechanism creates a wedge effect that tightly grips the concrete, making wedge anchors highly reliable in securing heavy equipment, machinery, or even structural components to the concrete base.
While there are various types of concrete anchors, wedge anchors stand out due to their strength and permanent installation. Once they are set in concrete, they provide a robust and lasting hold, making them ideal for high-stress applications.
Wedge anchors operate on a simple yet efficient expansion mechanism. When the anchor is installed in a pre-drilled hole in the concrete and the nut is tightened, the threaded body of the anchor pulls upward. This upward movement causes the expansion clip to slide down the tapered end of the anchor. As the clip expands, it wedges itself between the anchor body and the concrete, creating a tight and secure connection. This process is what makes wedge anchors so effective in providing reliable and consistent holding power.
The installation process of wedge anchors is straightforward yet highly effective. Here's how it works in more detail:
Insertion: The wedge anchor is inserted into a pre-drilled hole in the concrete. This hole must be the correct size and depth for the anchor to function properly.
Tightening: Once the wedge anchor is positioned, a nut is placed on the threaded end of the anchor. Tightening the nut causes the anchor to move upward, which, in turn, causes the expansion clip to slide downward.
Expansion: As the clip moves down the tapered end of the anchor, it expands and creates a tight bond between the anchor and the concrete surface. This expansion locks the anchor firmly into place, providing a secure hold.
Secure Hold: The anchor is now securely embedded in the concrete, providing a reliable connection that can withstand high loads and resist both pullout and shear forces.
This simple, yet effective, expansion mechanism is the reason why wedge anchors are so widely used in construction, industrial, and commercial applications.
Proper wedge anchor installation is key to ensuring that the anchor performs optimally and provides the required holding power. Whether you're installing wedge anchors for securing machinery, structural supports, or fixtures, following the right steps is essential for a successful installation. Here is a step-by-step guide to help you understand how to install wedge anchors correctly:
The first step is to drill a hole into the concrete where the wedge anchor will be installed. This step requires precision, as the diameter of the hole should match the diameter of the wedge anchor you're using. If you're using a 1/2 wedge anchor, for example, the hole should have a 1/2-inch diameter. It's important to use a hammer drill equipped with a carbide-tipped masonry bit to drill the hole. The hole should be drilled to the specified depth, typically about 1/2 inch deeper than the embedment depth of the wedge anchor.
After drilling the hole, it's important to clean out any dust, debris, or loose concrete particles that may have accumulated. Use a wire brush, compressed air, or a vacuum to ensure the hole is free of contaminants. Cleaning the hole ensures the wedge anchor will be able to expand properly and secure a firm grip on the concrete.
Once the hole is clean, insert the wedge anchor into the hole, making sure that the expansion clip is facing the concrete surface. Thread the nut onto the threaded end of the anchor to protect the threads during installation. Gently tap the nut end of the anchor with a hammer until the anchor is flush with the surface of the concrete or the material being fastened. This ensures that the anchor is properly positioned for the expansion process.
The next step is to tighten the nut with a wrench. As you tighten the nut, the threaded body of the wedge anchor pulls upward, which causes the expansion clip to expand and wedge tightly against the concrete. Continue tightening the nut until it reaches the proper torque value for the size of the anchor. This step is crucial, as the correct torque ensures that the anchor holds securely in place without damaging the concrete.
Once the nut is tightened, test the anchor’s stability by pulling on it. The wedge anchor should be securely embedded in the concrete and should not move. This step confirms that the anchor has been installed properly and will be able to withstand the load it is meant to support.
Although wedge anchors are designed for permanent installation, there may be situations where you need to remove them. Here’s how to remove wedge anchors safely and efficiently:
Loosen the Nut: Use a wrench to unscrew the nut from the threaded end of the wedge anchor. Depending on how tightly the anchor was installed, you may need to apply some force to loosen it.
Tap the Anchor: Once the nut is removed, use a hammer to gently tap the anchor body. This may help loosen the anchor from the concrete if it is stuck.
Pull the Anchor Out: After loosening the anchor, you can try pulling it out manually. If the anchor is still stuck, you may need to use a puller or other tools to remove it.
Removing wedge anchors can be challenging, especially if they have been embedded for a long time. However, by following these steps, you can successfully remove the anchors without causing damage to the surrounding concrete.
Wedge anchors are incredibly versatile and are used in a variety of applications. Here are some common uses for wedge anchors:
One of the most common uses for wedge anchors is securing heavy equipment and machinery to concrete surfaces. In industrial and construction settings, wedge anchors provide a strong and reliable hold to keep machinery and equipment in place, even in high-stress environments.
In construction projects, wedge anchors are often used to fasten structural components such as beams, columns, or other heavy elements to concrete foundations. The strength of wedge anchors ensures that these components remain secure and stable over time.
Whether for safety or aesthetic purposes, wedge anchors are also widely used to attach handrails, railings, and other fixtures to concrete surfaces. The ability of wedge anchors to hold securely under load makes them a preferred choice for such applications.
Choosing the correct wedge anchor size is crucial for ensuring the anchor's performance. Here is a helpful wedge anchor size chart to guide your decision:
| Anchor Size (Diameter) | Minimum Embedment Depth | Load Capacity (lbs) |
|---|---|---|
| 1/4" | 1-1/4" | 650 |
| 3/8" | 1-1/4" | 1,250 |
| 1/2" | 1-1/2" | 2,000 |
| 5/8" | 1-3/4" | 3,000 |
| 3/4" | 2" | 5,000 |
This chart provides a useful reference to help you select the right wedge anchor size based on the load requirements of your project. Always ensure that the wedge anchor you choose meets or exceeds the necessary load-bearing capacity.
Wedge anchors provide numerous benefits that make them an ideal choice for fastening applications. Some of the key advantages of wedge anchors include:
Wedge anchors are known for their exceptional load-bearing capacity. They can support significant weights, making them ideal for heavy-duty applications such as securing industrial machinery or structural elements.
Once installed, wedge anchors offer a permanent, durable solution that can withstand vibration, wear, and environmental factors. They provide long-term stability and reliability, ensuring your installations remain secure for years.
Wedge anchors are incredibly versatile and can be used in a wide range of applications, from securing heavy machinery to fastening handrails. Their ability to work in various concrete conditions, whether dry or wet, makes them suitable for both indoor and outdoor use.
While wedge anchors are generally safe to install, certain precautions should be taken to ensure a smooth and safe installation process:
Wear Protective Gear: Always wear safety goggles, gloves, and a dust mask to protect yourself from flying debris and concrete dust, which can be harmful.
Use the Correct Hole Size: Using the wrong hole size can compromise the performance of the wedge anchor. Always ensure that the hole is the correct diameter and depth.
Avoid Over-tightening: Over-tightening the nut can damage the anchor or the concrete. Always follow the manufacturer's torque specifications to avoid causing harm to the installation.
Wedge anchors are vital for fastening objects securely to concrete surfaces. Understanding how do wedge anchors work, proper installation, and their diverse applications ensures optimal results. Whether securing heavy machinery or installing structural supports, these fasteners offer reliability and longevity. By following installation guidelines and safety precautions, you can confidently use wedge anchors in your next project. Contact Haina for high-quality wedge anchors if you need reliable fastening solutions!
A: Wedge anchors are used to securely attach objects to solid concrete surfaces. They are commonly used in construction, industrial machinery installations, and securing structural supports, handrails, and equipment.
A: The embedment depth of wedge anchors depends on their diameter. As a general rule, the anchor should be installed at least 1-1/2 times the diameter of the anchor. For example, a 1/2 wedge anchor requires a minimum depth of 3/4 inches.
A: Wedge anchors are designed for permanent installation. Removal is challenging but possible by loosening the nut and tapping the anchor body, though it may damage the concrete or the anchor.
