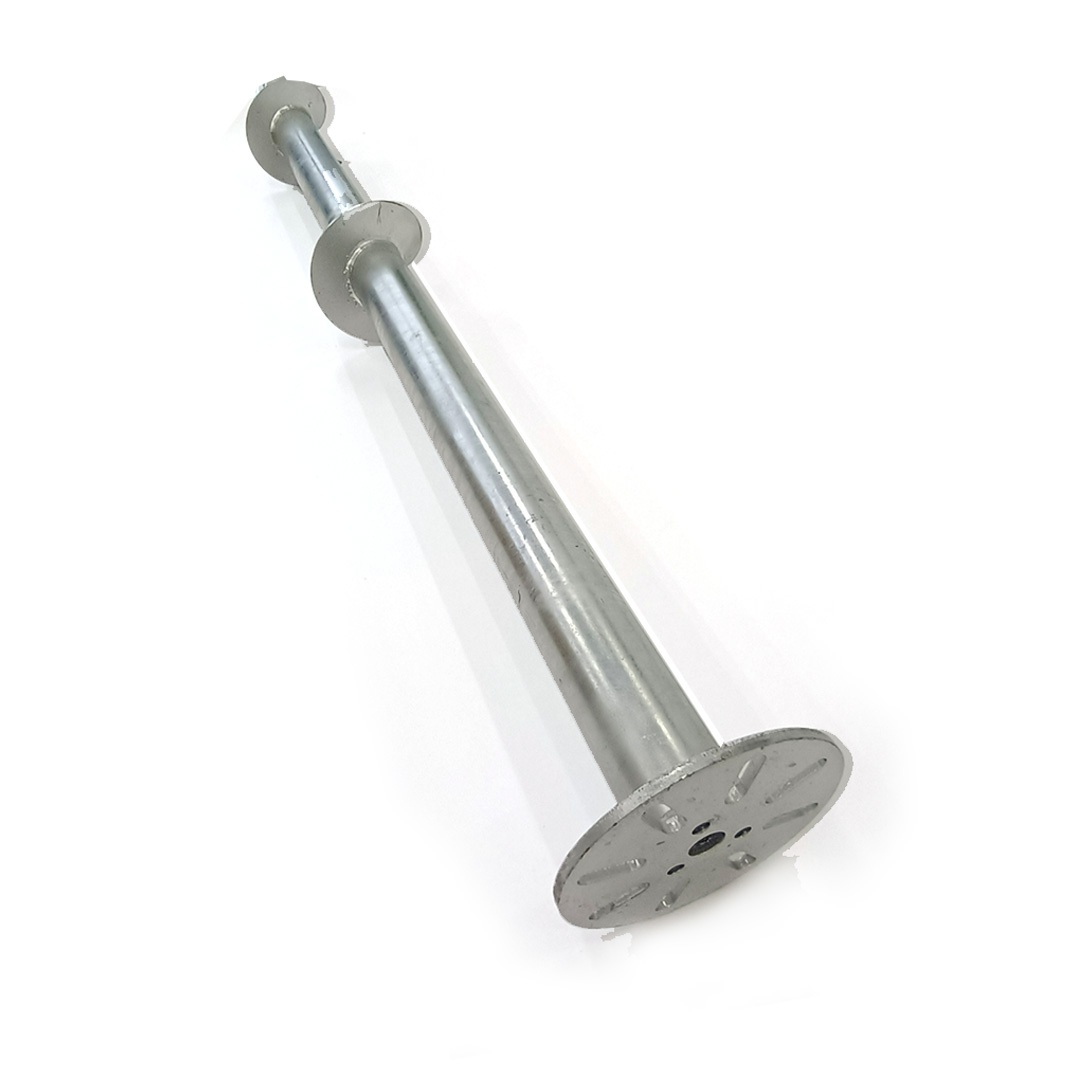

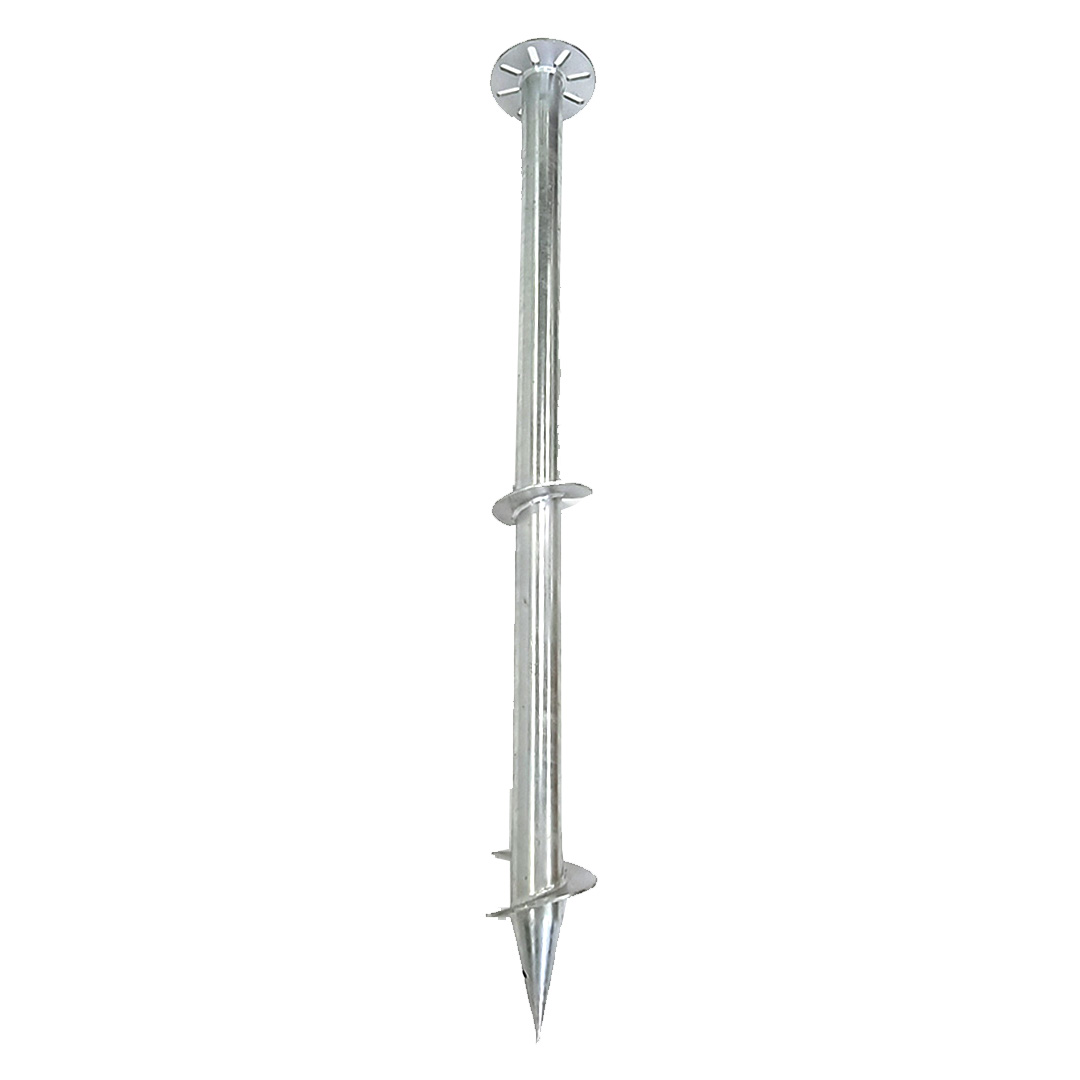

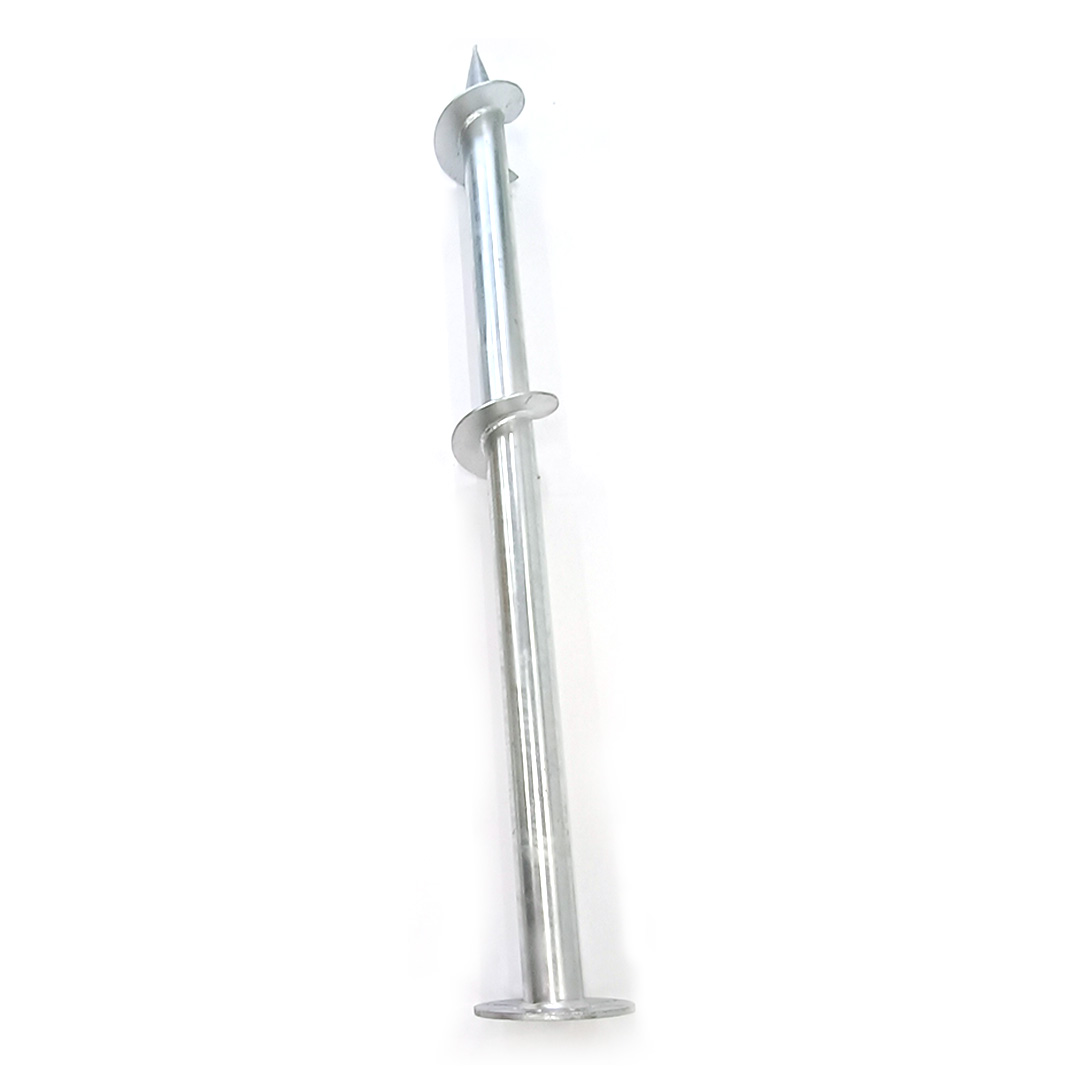

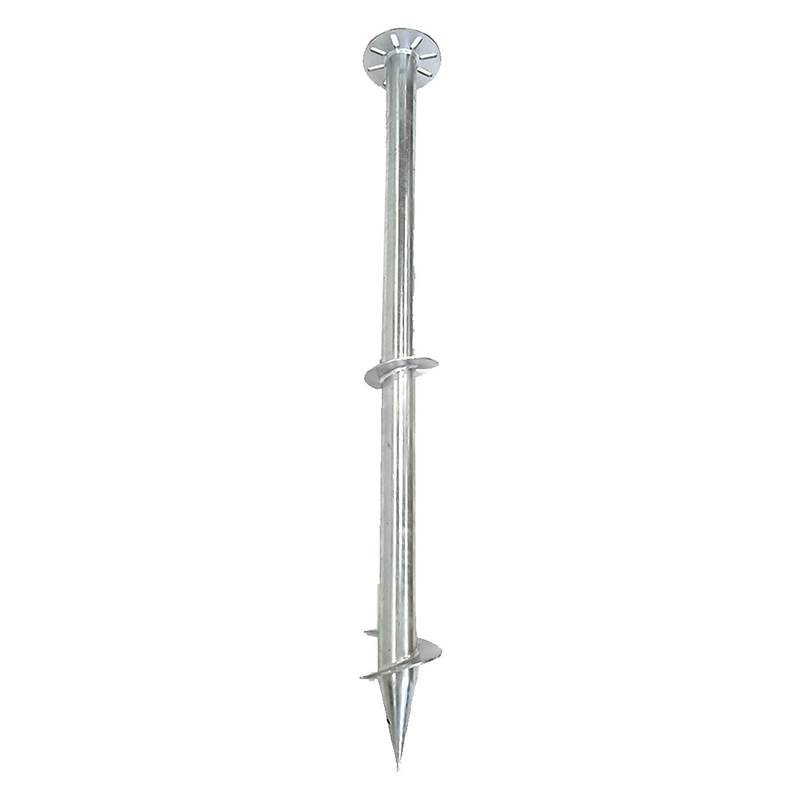

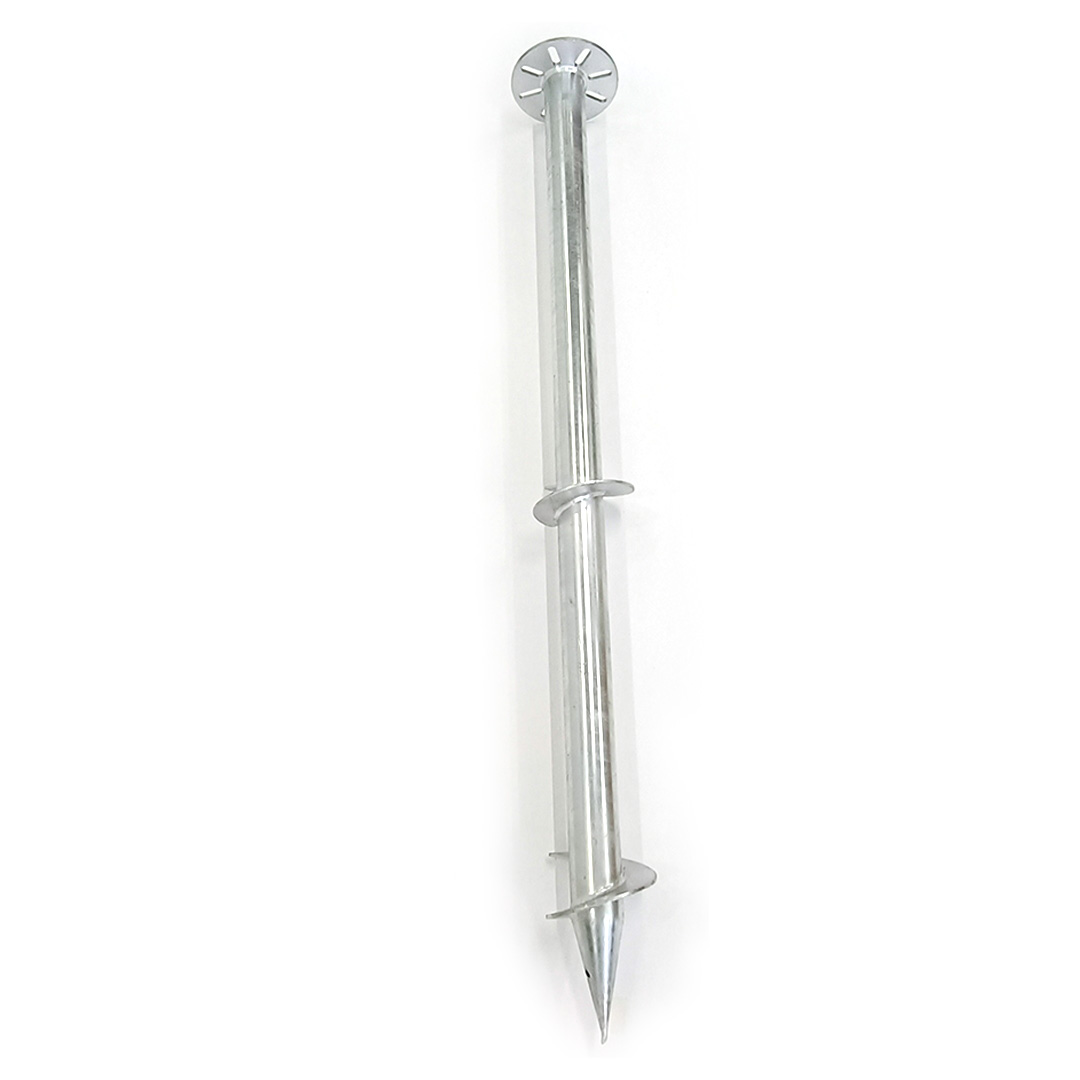

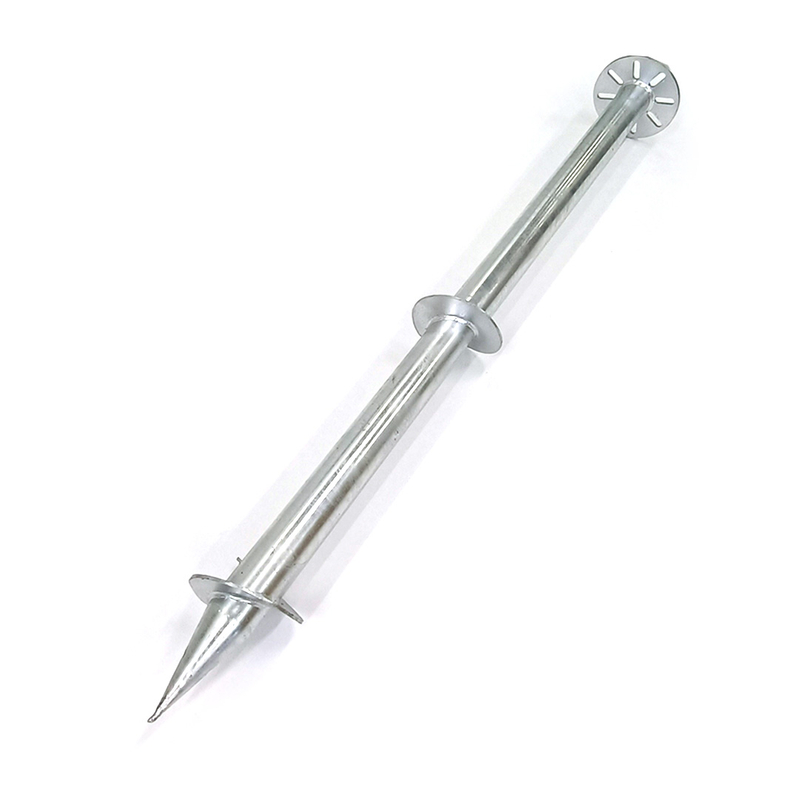

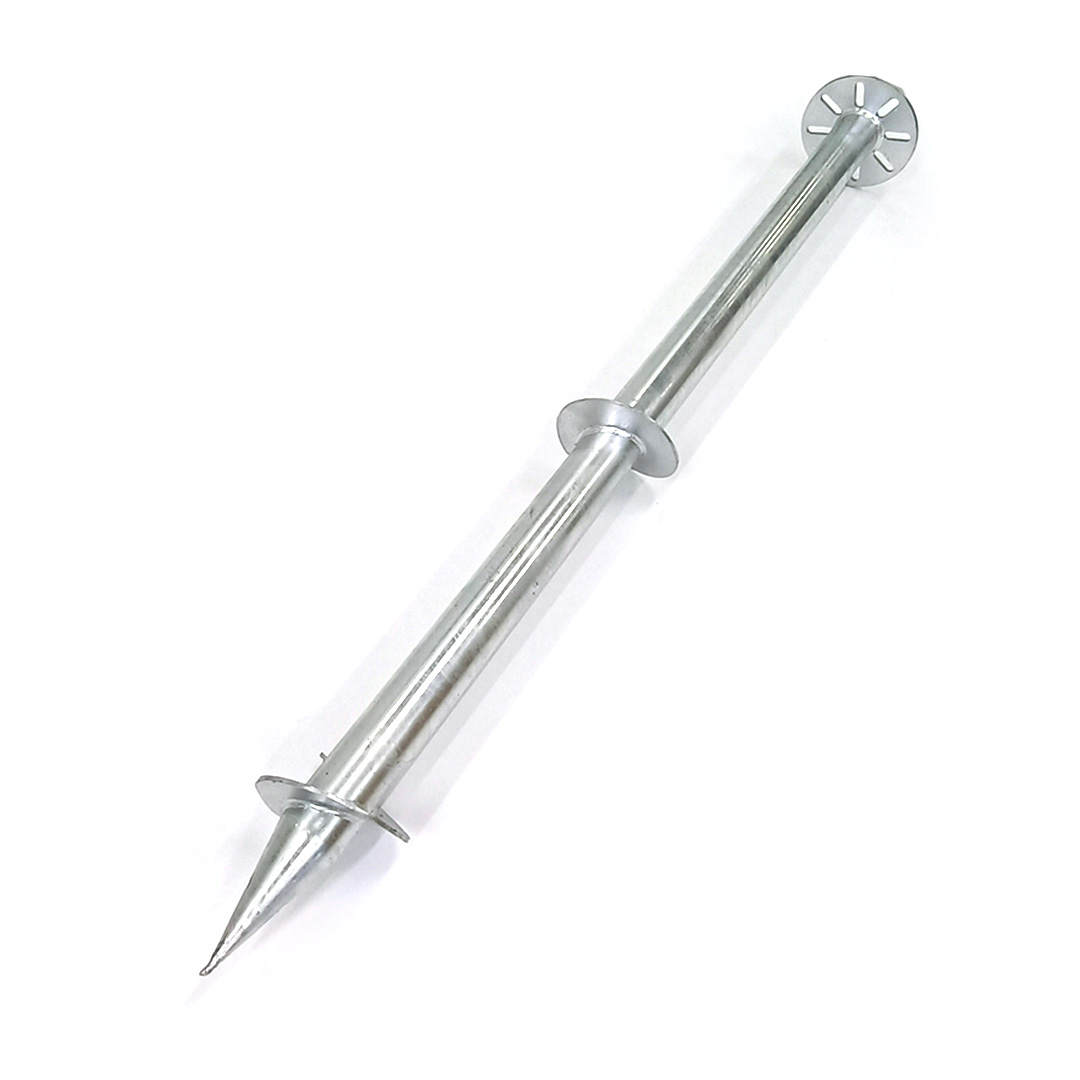

Ground screw (with large spiral blades), also known as screw piles or helical piles, is a type of foundation system that features a large spiral-shaped blade or helix. These are metal screws that are designed to be drilled into the ground, often used for anchoring structures in place without the need for concrete or extensive excavation.
Easy Installation: Compared to traditional concrete foundations, the installation process of ground screws is much simpler and faster. No complex concrete pouring or curing is needed. Special installation tools, such as ground screw drivers, are used to directly screw them into the ground. In regions with softer soil, the installation speed is even faster, significantly saving installation time and labor costs.
Adjustability: During installation, ground screws can be adjusted to account for the slope of the ground and the installation requirements of the solar mounting system. For example, on sloped ground, by adjusting the depth and angle at which the ground screw is installed, the mounted solar bracket can be kept level, ensuring that the solar panels receive sunlight at the optimal angle.
The load-bearing capacity of a ground screw depends on factors such as its size (e.g., pile body diameter, helical blade diameter, thickness), material strength, and the depth at which it is screwed into the ground. Generally, ground screws with larger diameters, thicker blades, and deeper installation depths offer greater load-bearing capacity. When designing a solar mounting system, the specific parameters of the ground screw should be determined based on local weather conditions (e.g., wind loads, snow loads) and the specifications of the solar panels to ensure sufficient load-bearing capacity. For example, in areas with high winds, ground screws with stronger load-bearing capacity may be required, along with an increased depth of installation, to prevent the solar mounting system from being blown over by the wind.
Ground-Mounted Solar Power Plants: Ground screws are commonly used in large-scale ground-mounted solar power plants as a foundation fixation method. They can adapt to various ground conditions, such as sandy soil, grassland, or farmland, and offer high installation efficiency, allowing the rapid establishment of the solar mounting system's foundation.
Distributed Solar Projects: For rooftop solar projects where the roof’s load-bearing capacity is limited or traditional fixing methods are not suitable, ground screws can be used on the surrounding ground to install the solar mounting system, thereby expanding the installation area for the solar power system.
Professional Manufacturer : All of our Fastener are designed and manufactured according to buyers'specification and performance.
Quality is guaranteed : Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective : Wide range of parts selection , Competitive prices with professional factory supply.
Customized ideal Fasteners : customized services according to the samples and drawing offered.
Certification
Through scientific management, Jiaxing Haina fastener Ltd company has been obtained ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of Make in China.
What is a ground screw?
Answer: A ground screw is a spiral-shaped metal rod used to anchor structures or equipment to the ground, often for installations like solar panels, fences, signage, etc. It provides a stable foundation by being screwed into the soil without the need for excavation or concrete.
What are the advantages of ground screws?
Answer: Ground screws are easy to install, require no excavation, have minimal environmental impact, and can be quickly removed. They are suitable for various soil conditions, especially soft or sandy soils, and provide stable support.
How are ground screws installed?
Answer: Ground screws are typically installed using specialized equipment (like a ground screw machine) to screw them into the ground. The process requires ensuring the screw is vertical and at an appropriate depth to ensure stability.
