Stainless Steel Carriage Bolts Coach Bolts

Production technology: Cold forging and hot forging
Material: stainless steel
Sales Models: Wholesale
Min Order: 1000 pcs
Sample: Free sample
Export country: Asia, Middle East, Europe, America and so on
Availability:
Quantity:
  • DIN603

  • HINA

  • HNF20170611

                                                 Stainless Steel Carriage Bolts Coach Bolts


Product Description:

Carriage bolts are divided into large semicircular head carriage bolts (corresponding to standard GB/T14 and DIN603) and small semicircular head carriage bolts (corresponding to standard GB/T12-85) according to the head size.  Carriage bolt, a type of fastener consisting of a head and a screw (a cylinder with external threads), used in conjunction with a nut for fastening two parts with through-holes.


Product Name Stainless Steel Carriage Bolts Coach Bolts
Standard: DIN,ASTM/ANSI, JIS, EN ISO,AS,GB
Material Stainless Steel: SS304, SS316
Finishing Polishing,Zinc(Yellow,White,Blue-white,Black),Hop Dip Galvanized(HDG),Phosphating,Black Oxide,Geomet,Dacromet,Nickel plated, Zinc-Nickel plated
Products Range
Stainless steel: All DIN ,GB Standard and part ASNI standard stainless steel screws, Example: DIN603,DIN933/931,DIN6921,DIN3570,DIN7981,DIN7982,DIN7985,DIN916,DIN913,DIN7985,DIN912


Pictures:

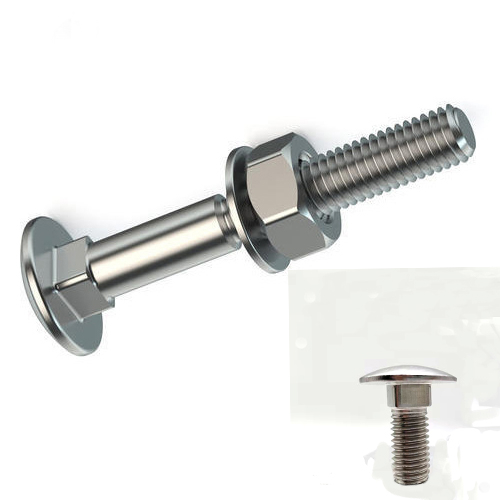

m12 stainless steel coach bolts

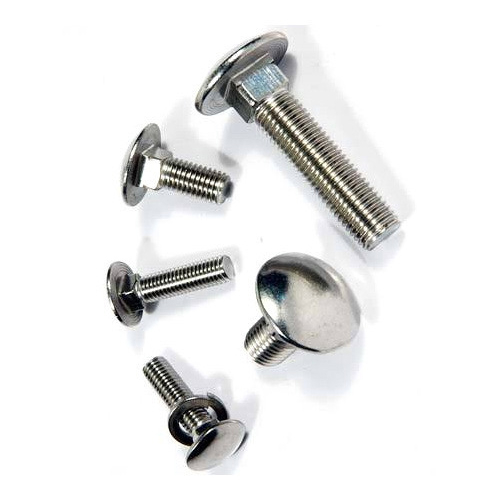

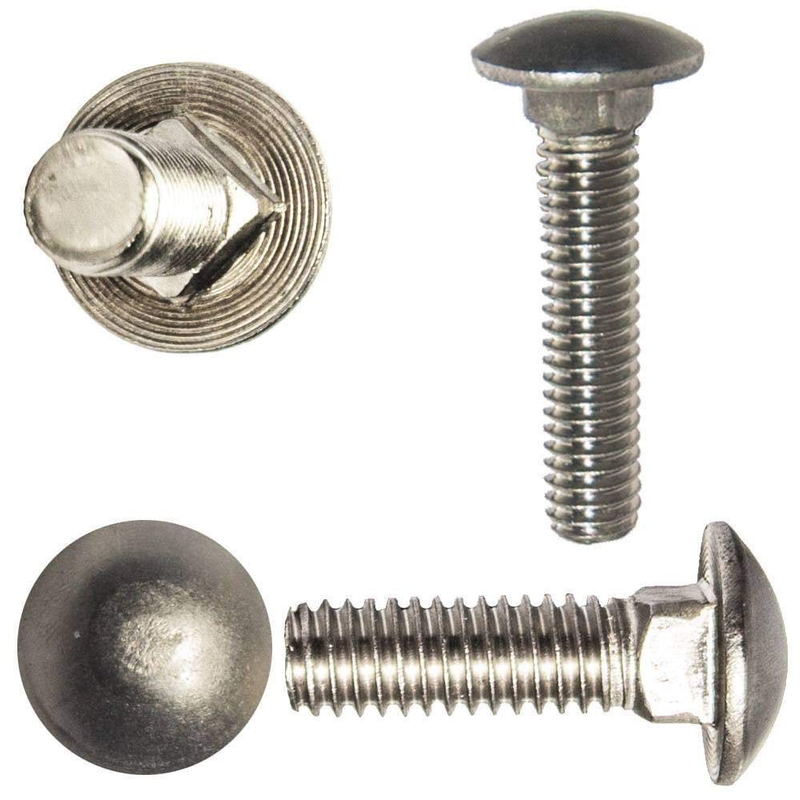

m6 stainless coach bolts




Our service:

Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers' specification and performance.

Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.

Cost effective: Wide range of parts selection , Competitive prices with professional factory supply.

Customized ideal Fasteners: customized services according to the samples and drawing offered.


Certification:

Through scientific management, Jiaxing Haina fastener Ltd company has been obtained ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of Make in China.

4

Production process:


671d27fc609562fee6fb7f354e36ed8

Packing:

production process

Shipping&payment:

shipping&payment


DIN603 DIN608 Stainless Steel A4-70 SS316 Carriage Bolt , Round Head Square Neck Carriage Bolts


DIN603

 Carriage Bolts have a square shoulder under a round head and are used with a nut and washer.
· The shoulder of the carriage bolt pulls into the wood when tightening and prevents the bolt from turning
· Bolt length is measured from under the head of the to the tip of the bolt
· Carriage bolt lengths of 4" and shorter are fully threaded
· Depending upon the manufacturer, stainless steel carriage bolts over 4" may be fully threaded or have a smooth 2" or more between the head and beginning of threading
· Our stainless steel carriage bolts are available in both 18-8 and Type 316 stainless steel (for salt water exposure)

The design of carriage bolts allows you to install the fastener without a helping hand. Below the half-round head of a carriage bolt sits a squared shoulder. When you drill a hole through material sized for the bolt, the head of the bolt will remain in place while you tighten the fastener onto the material. Using a hole too large for the bolt will result in the bolt head spinning in the material. This will not allow the carriage bolt to tighten in the material.

When joining pieces of wood together using a carriage bolt, the square head on the bolt can become stripped in the hole, making them hard to tighten. To solve this problem, insert a few finishing nails in the hole beside the bolt before hammering the bolt into place. The nails will fill the gaps between the hole and bolt to keep it from spinning.


Do not drill the holes bigger in the wood parts. The idea with carriage bolts is that you pound them in with a hammer so that the square part under the head of the bolt is forced down into the tight hole in the wood. This provides the hold to a) keep the bolt in place during assembly and b) to keep the bolt from turning while using a wrench or socket to tighten the nut from the end of the bolt.

Carriage bolts are designed so that on one side of an assembly that there are no protruding bits for things to catch on. The rounded head will provide that as opposed to there being a hex or square head sticking out. In your case with a chair kit the general idea is that the heads of the carriage bolts should face toward the side of the chair where the user will be. As such the threaded bolt ends will want to be down underneath or toward a generally non used surface of the chair.
