DIN603 Hot DIP Galvanized Gr8.8 Carriage Bolt

DIN603 Hot DIP Galvanized Gr8.8 Carriage Bolt
Sales Models: Wholesale
Min Order: 10000pcs
Sample: Free sample
Certificate: MTC, Test report
Export country: Asia, Middle East, Europe, America and so on
Surface:Hot DIP Galvanized

  • 1/4"-2" M8-M30
  • HNF
  • HN201706093

DIN603 Hot DIP Galvanized Gr8.8 Carriage Bolt

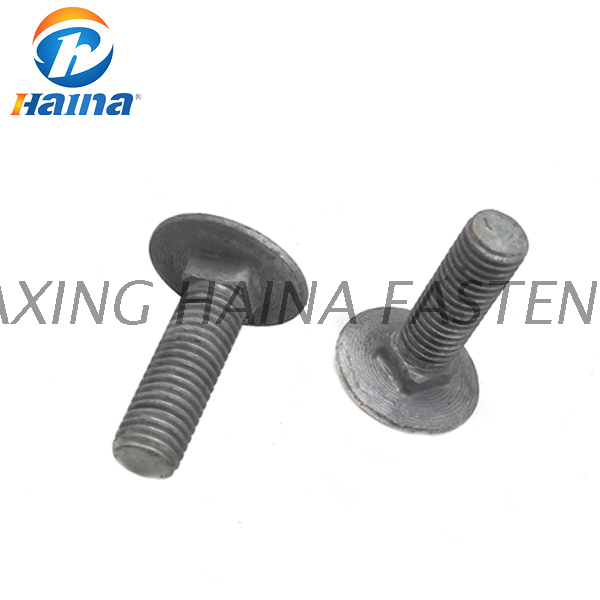

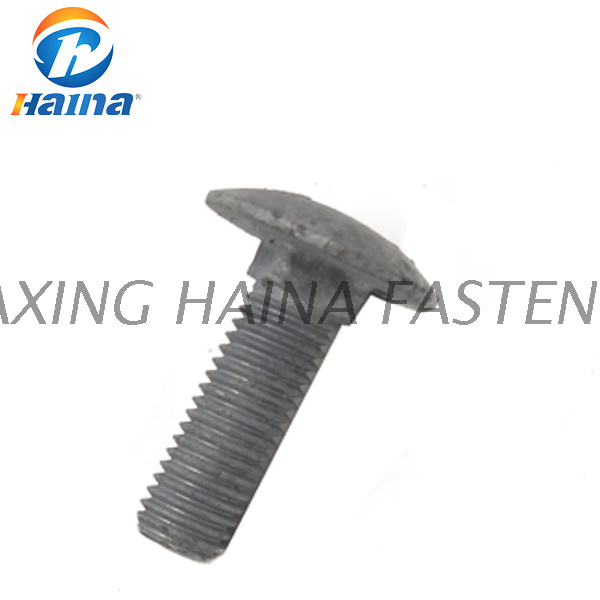

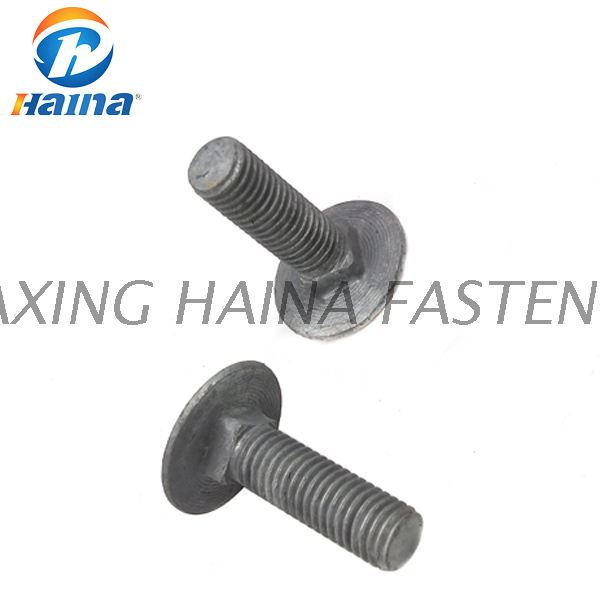

DIN603 hot-dip galvanized carriage bolt, grade 8.8, head is mushroom head, neck is square neck, consisting of head and bolt two parts, this kind of fasteners need to be used with nuts, the purpose is to fasten two parts with through holes, material stainless steel, carbon steel, galvanized, hot-dip galvanized, Dacromet, nickel plated, etc. A variety of surface treatment, complete standards, German standards, national standards and other standards, our company has a complete range of fasteners, focusing on fastener production, export trade for many years, excellent service quality, excellent product quality, at the same time according to customer needs, and provide drawings for customized production, customers are welcome to consult and purchase.

DIN603 Hot DIP Galvanized Gr8.8 Carriage Bolt Mechanical Property:

1:Metric Carriage BOLT:GB/T 3098.1-2010,ISO898.1-2009
CLASS 4.6;4.8 5.8 6.8 8.8 9.8 10.9 12.9
COMMON  MATERIALS  1008  ~  1015                           1012  ~1017                 10B21 / 1022   10B21  10B33 10B21 10B33 10B33  /  SCM435/ML20MnTiB SCM435
ML08AL        SWRCH8A~         SWRCH15A SWRCH15A~ SWRCH18A SWRCH22A 35K
35ACR                           10B35
AISI 4140
HEAT TREATMENT(YES/NO) NO                                                               YES

2:ASME Carriage BOLT:SAE J429
CLASS G1 G2 G5 G5.2 G8 SK

SIZE ALL SIZE ≦3/8 >3/8                                 ALL SIZE

COMMON  MATERIALS  1008  ~  1015      ML08AL        SWRCH8A~         SWRCH15A                           1017                        C(0.28~0.55)                          10B33 or  MEDIUM CARBON STEEL C(0.15~0.25)  or 10B21 10B33 or               SCM435 SCM435




The carriage bolt is widely used in the trough. The single one does not work. The carriage bolt can move parallel in the trough. It can also play an anti-theft role in the actual connection process.

DIN603 Hot DIP Galvanized Gr8.8 Carriage Bolt
