M6-M56 1/4"-2"
HNF
HN201706091

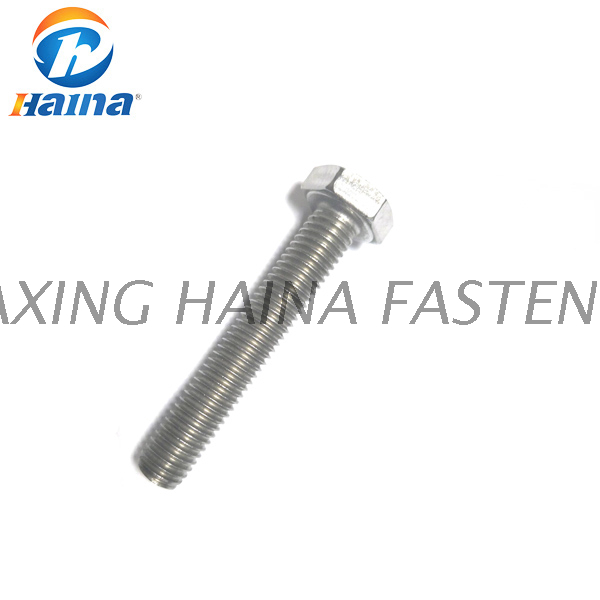

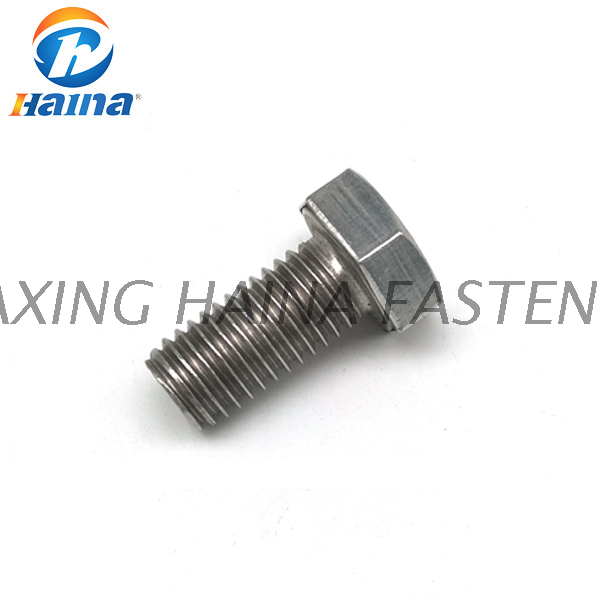

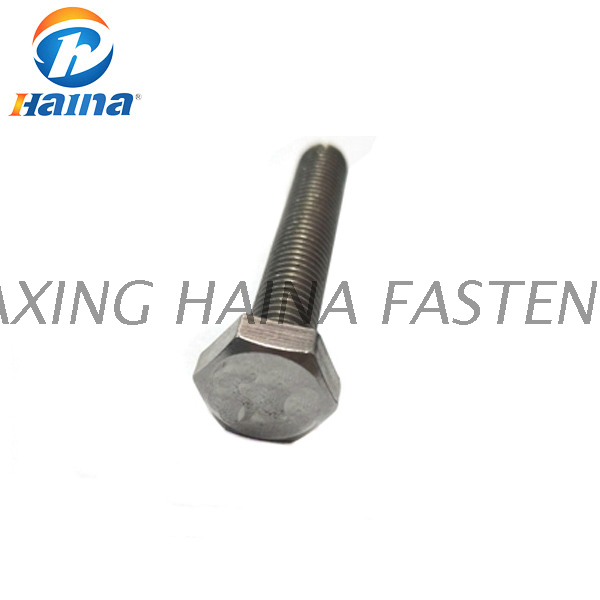

Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt
Hexagonal head stainless steel bolt is composed of two parts, hexagonal head and screw. Stainless steel can be divided into two kinds of materials, one is stainless steel bolts, while surface materials can be divided into SS304 ss316316 316L and other materials. Our company has been exporting foreign trade for many years, and our products are exported to various countries with rich experience. At the same time, our company can provide customized drawings for customized purchases according to customers. The meaning of bolt performance grade is international general standards, and all kinds of standards are complete. Bolts of the same performance grade, regardless of their material and source, have the same performance. Only performance levels can be selected in the design. Strength grade is 8.8, strength grade is 10.8, that is, the shear stress level of bolts is 8.8 GPa and 10.8 GPa.
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | | 35ACR | 10B35 | | AISI 4140 | ||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
| | | | | | | | | | | |
| 2:ASME Hex BOLT:SAE J429 | ||||||||||
| CLASS | G1 | G2 | G5 | G5.2 | G8 | SK | | | ||
| SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE | | | ||||
| COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 | | | ||
| | | | | | | | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | | | ||||||
| Product Name | Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt | ||||||
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L | ||||||
| Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel | |||||||
| Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
| Customized Products Lead time | Busy season:15-25days,Slack seaon:10-15days | ||||||
| Stock Products | stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912 | ||||||
| Free Samples for standard fastener | |||||||
| For more information visit: | |||||||
Application:
Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt
Hexagonal head stainless steel bolt is composed of two parts, hexagonal head and screw. Stainless steel can be divided into two kinds of materials, one is stainless steel bolts, while surface materials can be divided into SS304 ss316316 316L and other materials. Our company has been exporting foreign trade for many years, and our products are exported to various countries with rich experience. At the same time, our company can provide customized drawings for customized purchases according to customers. The meaning of bolt performance grade is international general standards, and all kinds of standards are complete. Bolts of the same performance grade, regardless of their material and source, have the same performance. Only performance levels can be selected in the design. Strength grade is 8.8, strength grade is 10.8, that is, the shear stress level of bolts is 8.8 GPa and 10.8 GPa.
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | | 35ACR | 10B35 | | AISI 4140 | ||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
| | | | | | | | | | | |
| 2:ASME Hex BOLT:SAE J429 | ||||||||||
| CLASS | G1 | G2 | G5 | G5.2 | G8 | SK | | | ||
| SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE | | | ||||
| COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 | | | ||
| | | | | | | | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | | | ||||||
| Product Name | Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt | ||||||
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L | ||||||
| Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel | |||||||
| Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
| Customized Products Lead time | Busy season:15-25days,Slack seaon:10-15days | ||||||
| Stock Products | stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912 | ||||||
| Free Samples for standard fastener | |||||||
| For more information visit: | |||||||
Application:
Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
