M6-M56 1/4"-2"
HNF
HN201706091

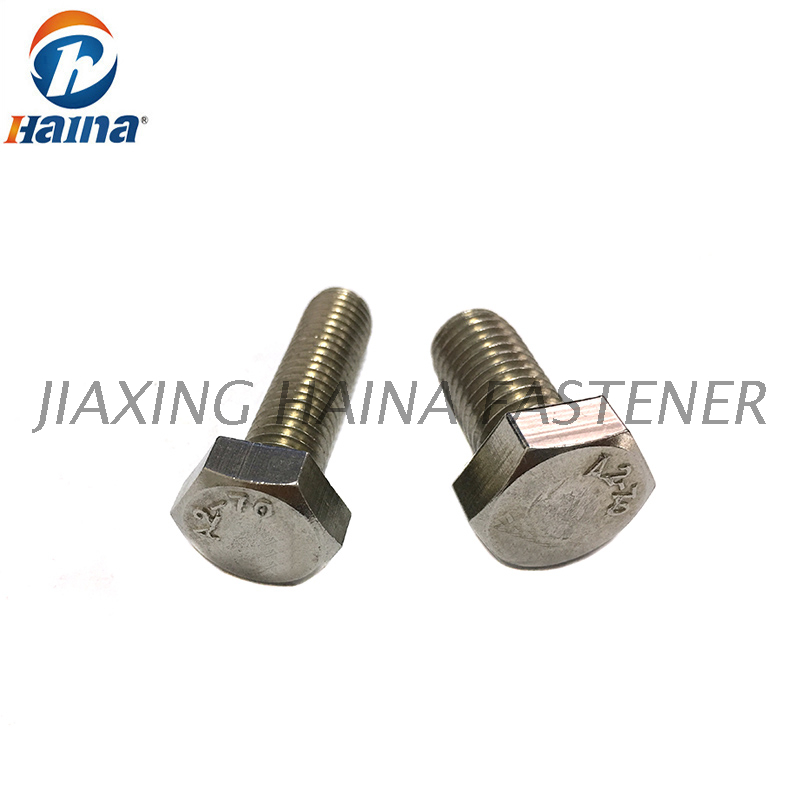

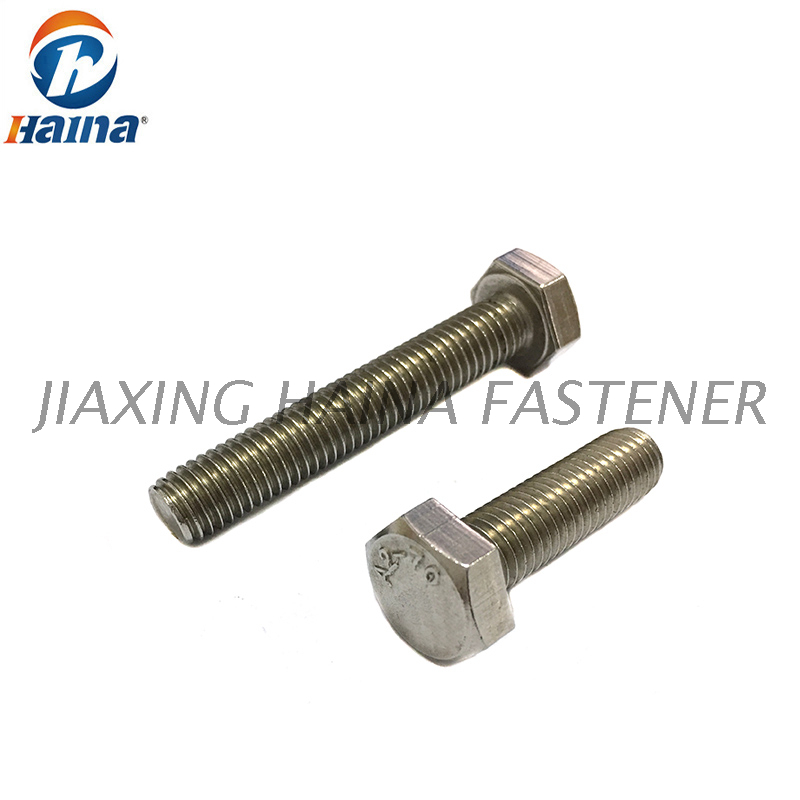

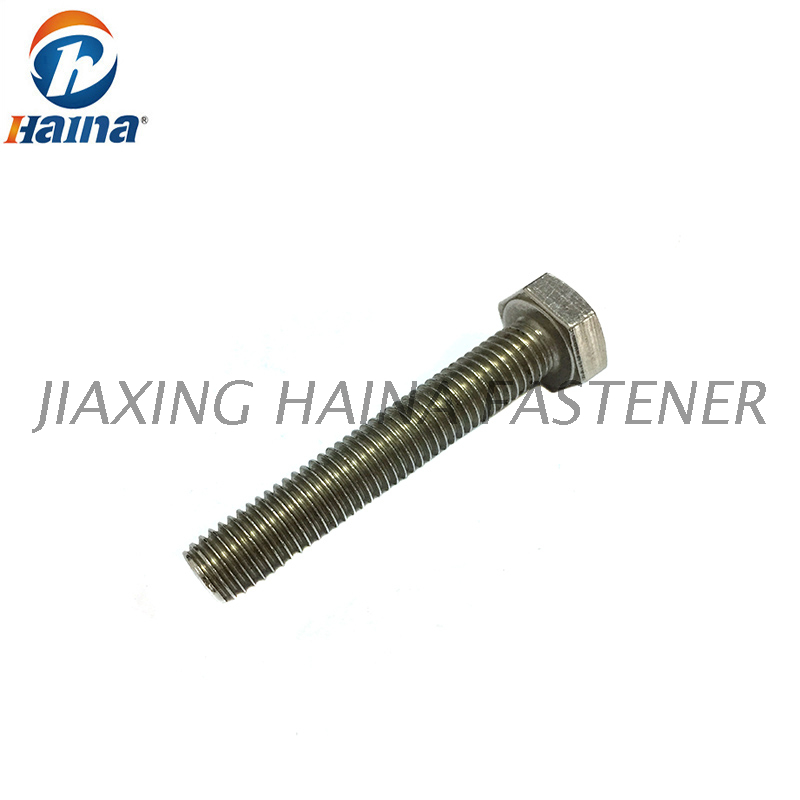

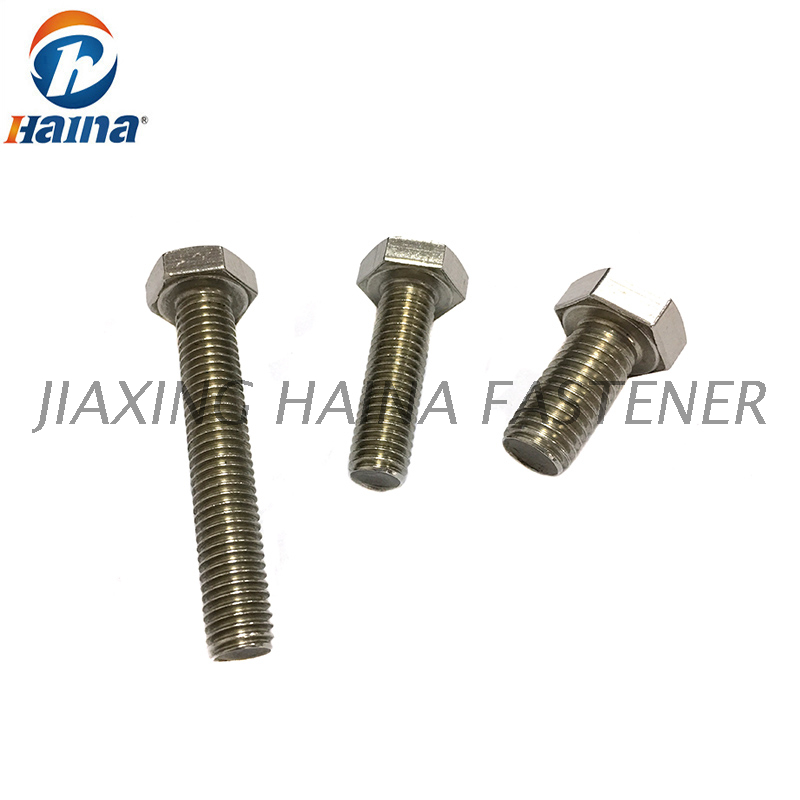

The hex bolt are devided into metric hex bolt and ASME hex bolt. The bolt is a form of threaded fastener with an external male thread. Bolts are thus closely related to, and often confused with, screws. A hex cap screw is a cap screw with a hexagonal head, designed to be driven by a wrench (spanner). An ASME B18.2.1 compliant cap screw has somewhat tighter tolerances than a hex bolt for the head height and the shank length. The nature of the tolerance difference allows an ASME B18.2.1 hex cap screw to always fit where a hex bolt is installed but a hex bolt could be slightly too large to be used where a hex cap screw is designed in.
| 1:Metric Hex BOLT:GB/T 3098.1-2010，ISO898.1-2009 | ||||||||||
| CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
| SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
| COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
| ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K | 35ACR | 10B35 | AISI 4140 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
| 2:ASME Hex BOLT:SAE J429 | ||||||||||
| CLASS | G1 | G2 | G5 | G5.2 | G8 | SK | ||||
| SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE | ||||||
| COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 | ||||
| HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
