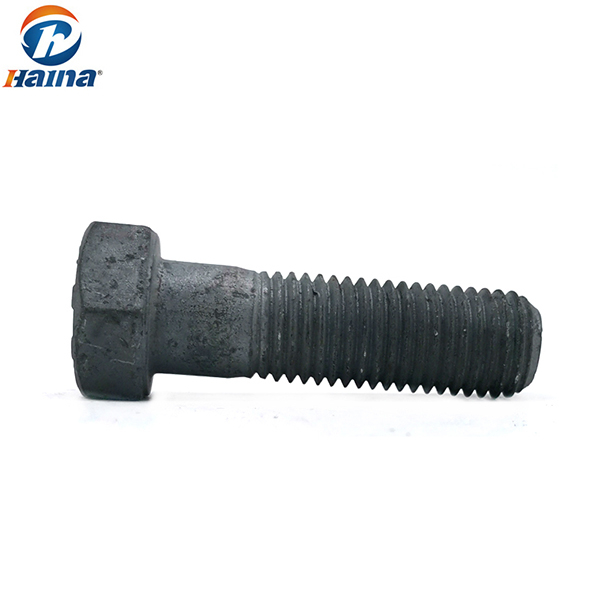

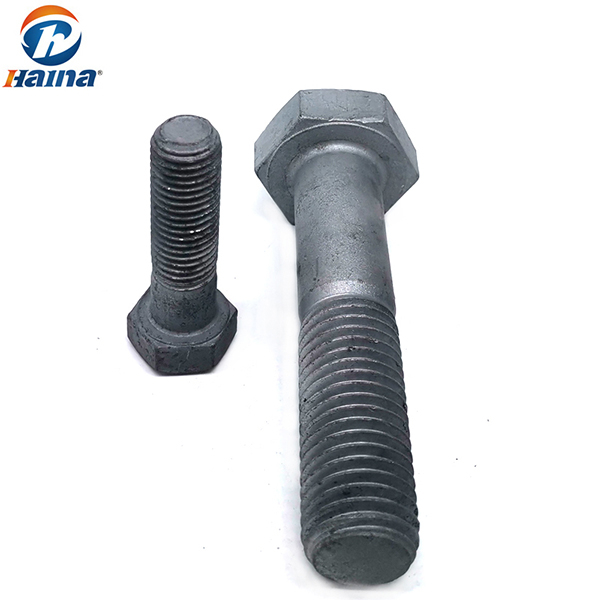

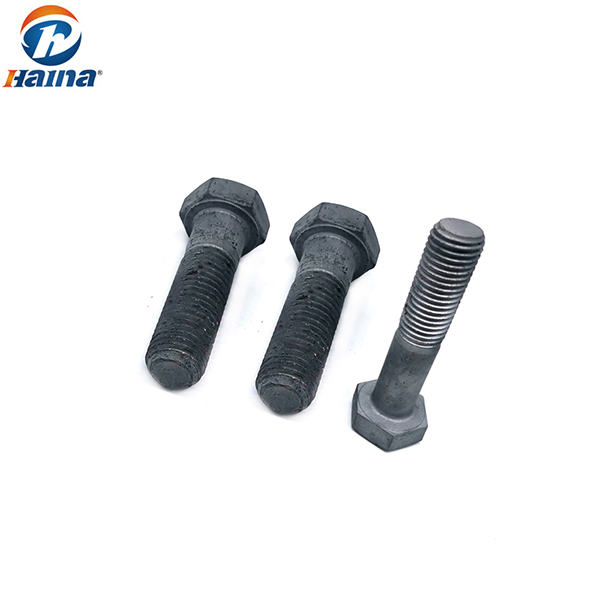

DIN 933 GB5783 Carbon Steel Competitive Price ASTM A394 Hot DIP Galvanzing HDG Hex Head Electric Tower Bolt

Production technology: Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt
Sales Models: Wholesale
Min Order: 1000pcs
Sample: Free sample
Certificate: MTC, Test report
Delivery time:15-25 Days
Availability:
Quantity:
  • M5-M64

  • HNF

  • 7318160000

 DIN 933 GB5783 Carbon Steel Competitive Price ASTM A394 Hot DIP Galvanzing HDG Hex Head Electric Tower  Bolt



Hexagonal head stainless steel bolt is composed of two parts, hexagonal head and screw. Stainless steel can be divided into two kinds of materials, one is stainless steel bolts, while surface materials can be divided into SS304 ss316316 316L and other materials. Our company has been exporting foreign trade for many years, and our products are exported to various countries with rich experience. At the same time, our company can provide customized drawings for customized purchases according to customers. The meaning of bolt performance grade is international general standards, and all kinds of standards are complete. Bolts of the same performance grade, regardless of their material and source, have the same performance. Only performance levels can be selected in the design. Strength grade is 8.8, strength grade is 10.8, that is, the shear stress level of bolts is 8.8 GPa and 10.8 GPa.


1:Metric Hex BOLT:GB/T 3098.1-2010ISO898.1-2009
CLASS 4.6;4.8 5.8 6.8 8.8 9.8 10.9 12.9
SIZE ALL SIZE M12 >M12 M8 >M8 ALL SIZE
COMMON  MATERIALS  1008  ~  1015                           1012  ~1017                 10B21 / 1022   10B21  10B33 10B21 10B33 10B33  /  SCM435/ML20MnTiB SCM435
ML08AL        SWRCH8A~         SWRCH15A SWRCH15A~ SWRCH18A SWRCH22A 35K
35ACR                           10B35
AISI 4140
HEAT TREATMENT(YES/NO) NO                                                               YES











2:ASME Hex BOLT:SAE J429
CLASS G1 G2 G5 G5.2 G8 SK

SIZE ALL SIZE 3/8 >3/8                                 ALL SIZE

COMMON  MATERIALS  1008  ~  1015      ML08AL        SWRCH8A~         SWRCH15A                           1017                        C(0.28~0.55)                          10B33 or  MEDIUM CARBON STEEL C(0.15~0.25)  or 10B21 10B33 or               SCM435 SCM435








HEAT TREATMENT(YES/NO) NO YES



Product Name

Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt

Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L
Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel
Finishing

Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization,

Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated

Customized Products
Lead time
Busy season:15-25days,Slack seaon:10-15days
Stock Products


Stainless steel: All DIN ,GB Standard and part ASNI standard

 stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912

Free Samples for standard fastener
For more information visit:

Drawing


Application:

Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
