How To Choose Bolt/Nut Materials?

Introduction

Bolts and nuts are fundamental components in mechanical assemblies, and their performance heavily depends on the material selection. Common materials include carbon steel, stainless steel, aluminum alloy, and titanium alloy, each offering distinct advantages in strength, corrosion resistance, and weight. This article explores these differences to guide optimal material choices for engineering applications.

1. Carbon Steel Bolts and Nuts

Strength:
Carbon steel is widely used for high-strength fasteners. Medium-carbon steel (e.g., Grade 5.8) and alloy steel (e.g., Grade 10.9) can achieve tensile strengths exceeding 800 MPa after heat treatment. These bolts are ideal for heavy-duty applications like construction and automotive systems.

Corrosion Resistance:
The primary drawback of carbon steel is its susceptibility to rust. Surface coatings such as zinc plating, galvanization, or phosphate treatment are often applied to enhance corrosion resistance. However, these coatings may wear off over time, exposing the base material.

Weight:
With a density of 7.85 g/cm³, carbon steel is heavier than aluminum or titanium, making it less suitable for weight-sensitive applications.

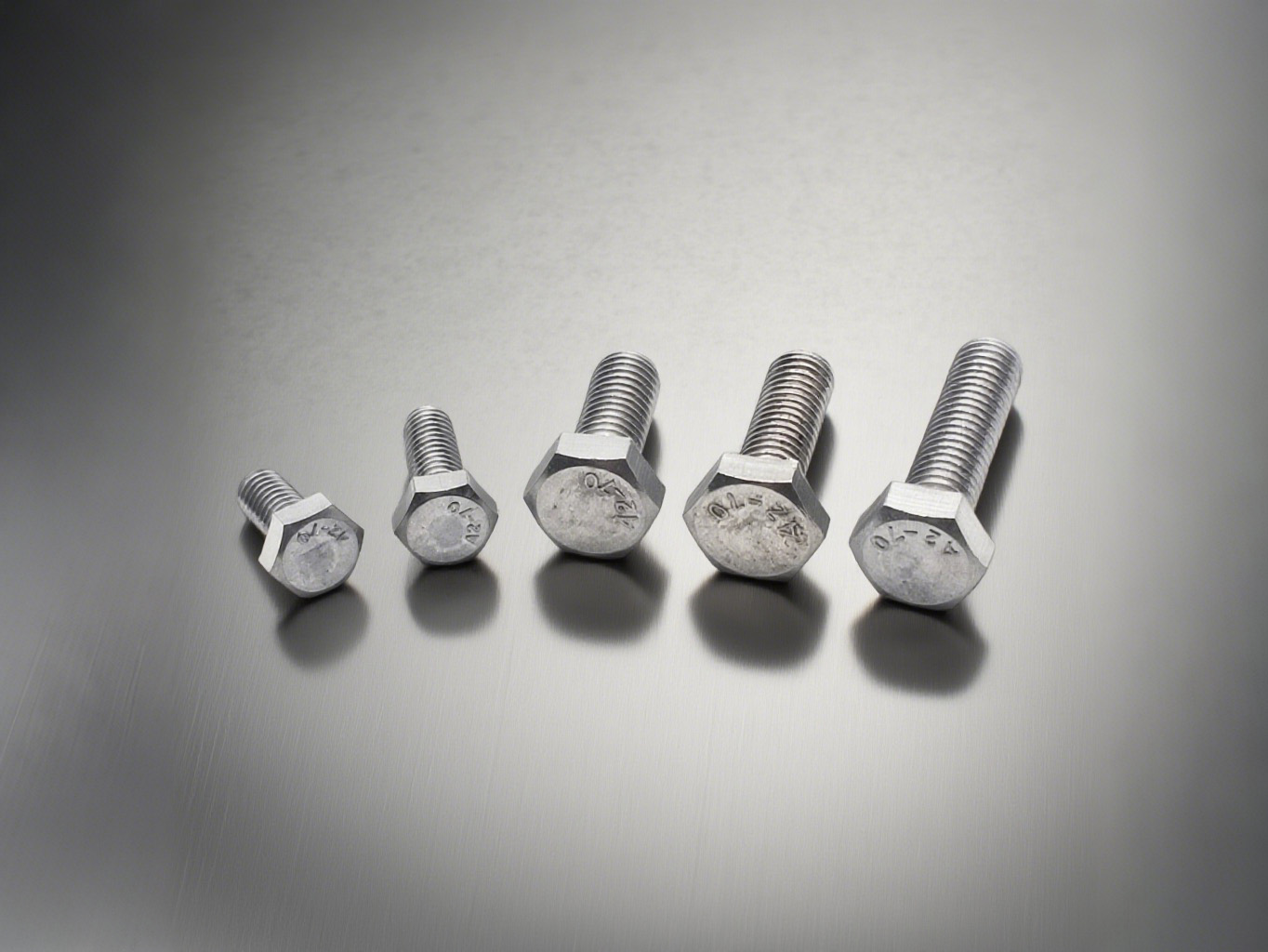

2. Stainless Steel Bolts and Nuts

Strength:
Stainless steel bolts are categorized into austenitic (e.g., 304, 316) and martensitic (e.g., 410) grades. Austenitic steels offer moderate strength (500–700 MPa) but cannot be heat-treated, while martensitic steels can reach higher strengths (up to 1,000 MPa) after quenching and tempering.

Corrosion Resistance:
Stainless steel excels in corrosion resistance due to its chromium content, which forms a passive oxide layer. Grade 316, with added molybdenum, is particularly resistant to chlorides and acidic environments, making it suitable for marine and chemical industries.

Weight:
Similar in density to carbon steel (~7.9 g/cm³), stainless steel is not a lightweight option but provides a balance of strength and durability.

3. Aluminum Alloy Bolts and Nuts

Strength:
Aluminum alloys like 6061-T6 (tensile strength ~300 MPa) and 7075-T6 (~500 MPa) are significantly weaker than steel but sufficient for lightweight structures. Their strength can be enhanced through cold working or alloying.

Corrosion Resistance:
Aluminum naturally forms a protective oxide layer, offering good resistance to atmospheric corrosion. However, it is vulnerable to galvanic corrosion when paired with dissimilar metals in conductive environments.

Weight:
With a density of 2.7 g/cm³, aluminum bolts are about one-third the weight of steel, making them ideal for aerospace and automotive applications where weight reduction is critical.

4. Titanium Alloy Bolts and Nuts

Strength:
Titanium alloys (e.g., Ti-6Al-4V) combine high strength (900–1,200 MPa) with low weight, rivaling high-grade steel. They are often used in aerospace, medical implants, and racing industries.

Corrosion Resistance:
Titanium is highly resistant to corrosion, even in harsh environments like seawater or chemical plants, outperforming stainless steel.

Weight:
At 4.5 g/cm³, titanium offers the best strength-to-weight ratio among metals but comes at a high cost, limiting its use to specialized applications.

5. Other Materials

• Brass/Copper Alloys: Used for electrical conductivity or decorative purposes; low strength (~200–400 MPa) but excellent corrosion resistance.

• Plastics/Nylon: Lightweight and chemically inert, but mechanical strength is minimal (suitable only for non-structural uses).

Conclusion

Selecting the right material for bolts and nuts involves trade-offs:

• High strength: Carbon steel or titanium.

• Corrosion resistance: Stainless steel or titanium.

• Lightweight: Aluminum or titanium.

• Cost-effectiveness: Carbon steel with coatings or standard stainless steel.

Understanding these properties ensures optimal performance, safety, and longevity in mechanical designs.
