Flange Bolt Tightening Methods: A Comprehensive Guide

Author: Site Editor     Publish Time: 2025-06-27      Origin: Site

Flange Bolt Tightening Methods: A Comprehensive Guide

Flange Bolt Tightening Methods: A Comprehensive Guide

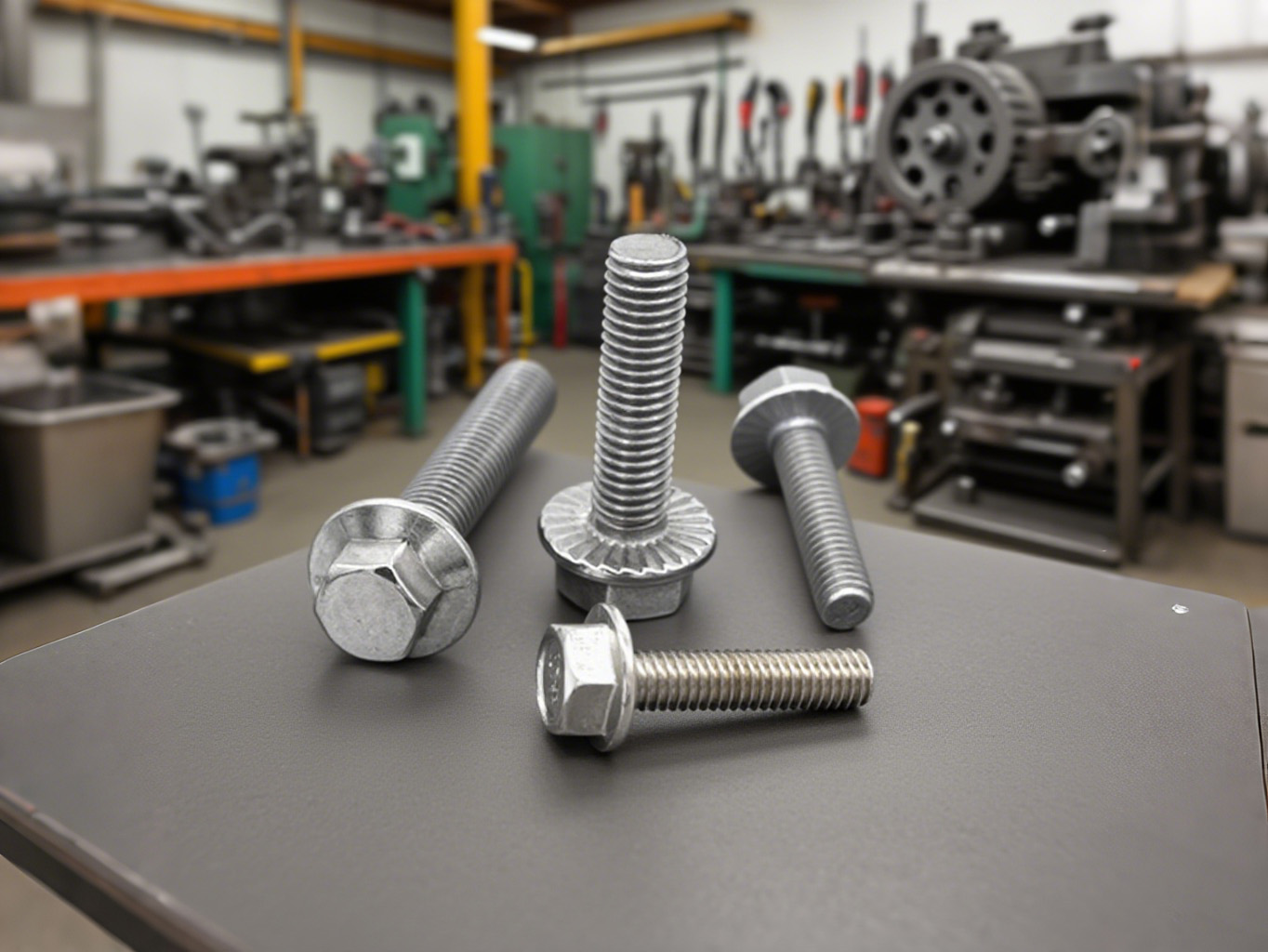

Introduction

Flange bolts are essential fasteners used in piping systems, pressure vessels, and mechanical assemblies to create secure, leak-proof connections. Proper tightening techniques are crucial to ensure joint integrity, prevent leaks, and avoid mechanical failures. This article provides a detailed overview of flange bolt tightening methods, including torque control, tightening sequences, and best practices.


1. Understanding Flange Bolt Tightening

Flange bolts must be tightened correctly to distribute clamping force evenly across the gasket and flange faces. Incorrect tightening can lead to:

  • Gasket failure (due to uneven compression)

  • Bolt overloading (causing breakage or thread stripping)

  • Flange distortion (leading to misalignment and leaks)

To avoid these issues, standardized tightening procedures must be followed.


2. Key Tightening Methods

A. Torque Tightening (Most Common Method)

Torque tightening involves applying a specific rotational force (torque) to the bolt to achieve the required tension.

Steps:

  1. Hand-tighten all bolts to ensure proper alignment.

  2. Use a calibrated torque wrench to tighten bolts in multiple stages (e.g., 30%, 60%, and 100% of final torque).

  3. Follow a cross-pattern sequence to ensure even load distribution.

Advantages:

  • Simple and widely used

  • Suitable for most industrial applications

Limitations:

  • Friction variations can affect accuracy

  • Requires proper lubrication for consistency

B. Bolt Tensioning (Hydraulic or Mechanical)

Bolt tensioning applies direct axial force to stretch the bolt, ensuring precise clamping force.

Methods:

  • Hydraulic tensioners (for high-pressure applications)

  • Mechanical stretchers (for large-diameter bolts)

Advantages:

  • More accurate than torque tightening

  • Reduces risk of uneven loading

Limitations:

  • More expensive and complex

  • Requires specialized equipment

C. Angle Tightening (Turn-of-Nut Method)

This method involves tightening the bolt to a snug-tight condition and then rotating it by a specified angle (e.g., 90°, 180°) to achieve the desired stretch.

Advantages:

  • Less dependent on friction

  • Effective for high-strength bolts

Limitations:

  • Requires precise angle measurement

  • Not suitable for all flange types


3. Recommended Tightening Sequence (Star Pattern)

To ensure uniform gasket compression, follow a cross-pattern tightening sequence:

  1. First Pass: Hand-tighten all bolts.

  2. Second Pass: Apply 30% torque in a star pattern.

  3. Third Pass: Increase to 60% torque in the same pattern.

  4. Final Pass: Reach 100% torque, checking for uniformity.

Example for an 8-bolt flange:

1 — 5
3 — 7
2 — 6
4 — 8

(Tighten in numerical order for balanced force distribution.)


4. Best Practices for Flange Bolt Tightening

  • Use calibrated torque tools to ensure accuracy.

  • Lubricate threads and washers (unless specified otherwise).

  • Avoid impact wrenches unless permitted by the flange specification.

  • Re-torque after system heat-up in high-temperature applications.

  • Check flange alignment before final tightening.


5. Common Mistakes to Avoid

Over-tightening → Can strip threads or crush the gasket.
Uneven tightening → Leads to flange warping and leaks.
Ignoring torque specifications → May cause joint failure.

Skipping the tightening sequence → Results in uneven load distribution.


Conclusion

Proper flange bolt tightening is critical for maintaining joint integrity and preventing leaks. Whether using torque tightening, tensioning, or angle tightening, following standardized procedures ensures reliable performance. Always refer to industry standards (ASME PCC-1, EN 1591) and manufacturer guidelines for optimal results.
