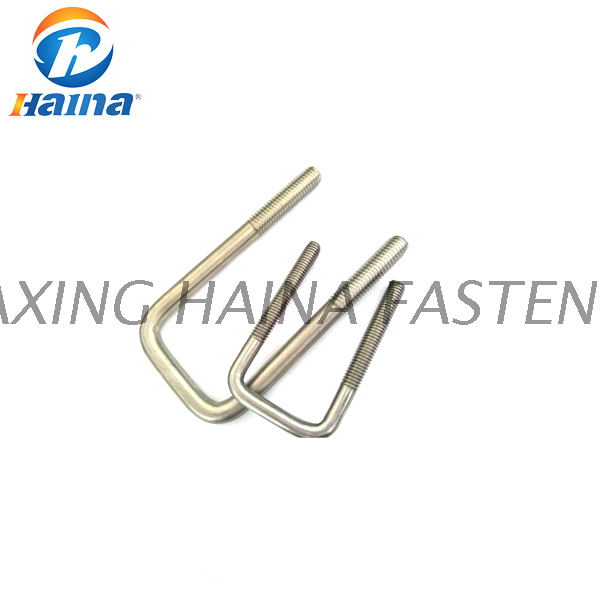

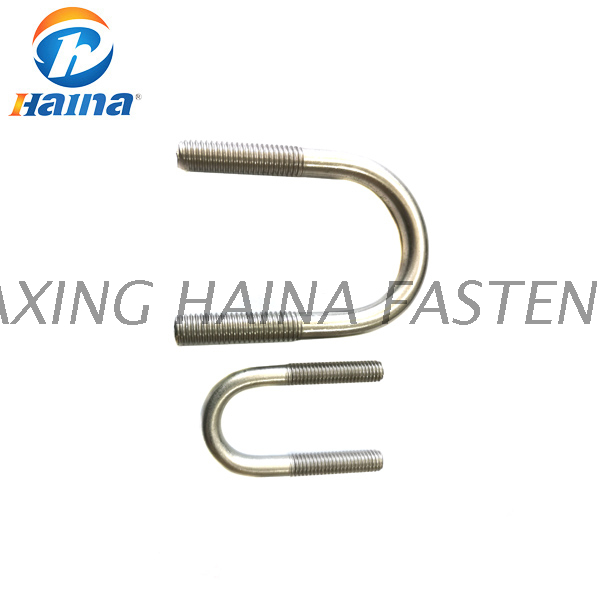

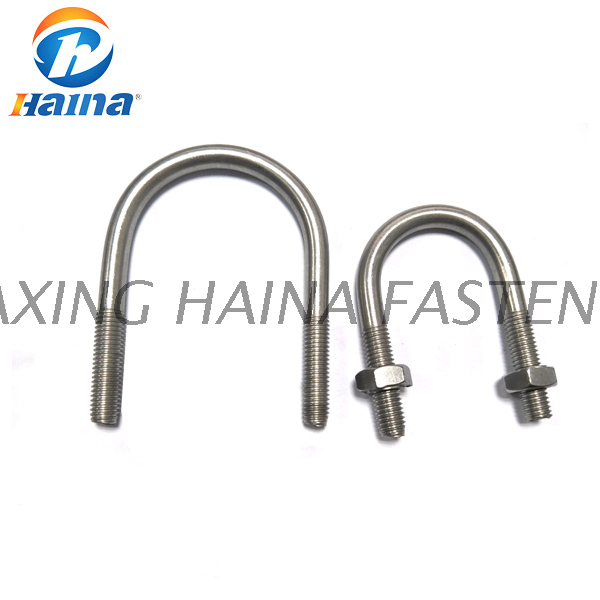

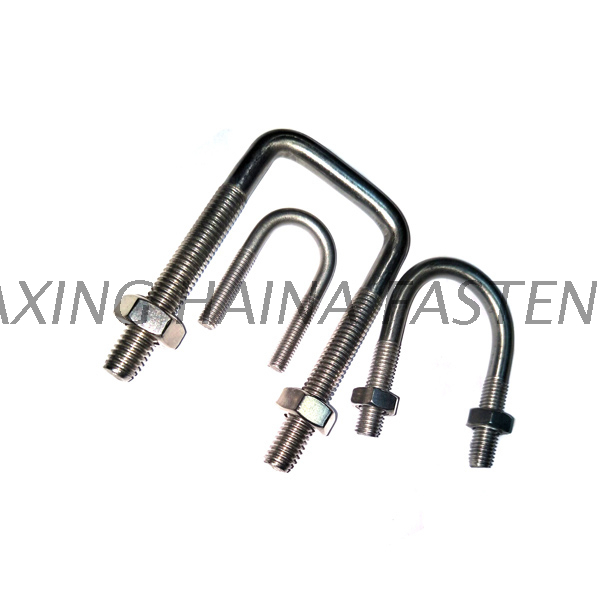

DIN3570 Stainless Steel A4-80 U Bolt or Square U Bolt

Product name:DIN3570 Stainless Steel A4-80 U Bolt or Square U Bolt

Sample:Free

Package:Caton+Pallet

Standard:GB, DIN,ANSI,GB,JIS,BSW,GOST

Quantity:
  • U Type
  • HNF
  • 170618

DIN3570 Stainless Steel A4-80 U Bolt or Square U Bolt

1. Product Description:

DIN3570 Stainless Steel SS304 SS316 316L U Bolt With Hex Nuts ,Material is divided into stainless steel and iron U-type bolts, the standard is complete, such as the German national standard, U-type bolts, as the name implies, U-type bolts, and both ends with threads, can be used with nuts, our company specializes in the production and operation of fasteners for many years, export foreign trade for many years, experience, products exported to Europe and the United States, quality assurance, and related product testing certificate, I The company has a complete range of fasteners and specifications. At the same time, it can provide drawings according to customer's needs. It can also produce non-standard parts and standard parts according to customer's drawings to meet customer's needs. Customers are welcome to consult.







2. Advantages:



1. Rich Production Experience and Advanced Technology, Guarantee of Product Quality



2. Strict control of production process, excellent quality, customers can buy at ease.



3. Customization of non-standard parts can be made according to drawings




u-bolt-1-big u-bolt-2-big
U-BOLT SPECIFICATIONS
Thread Diameter Width Between Legs Inside Length Thread Length Pipe Size





1/4"-20 3/4" 1 1/4 3/4" 3/8"
1/4"-20 3/4" 1 3/4 3/4" 3/8"
1/4"-20 3/4" 2 1/4 1 1/2 3/8"
1/4"-20 1" 1 3/4 3/4" 1/2"
1/4"-20 1-1/8" 2 3/4" 3/4"
1/4"-20 1-3/8" 2 1/4 3/4" 1"
1/4"-20 1 3/4 2 3/4 1 1 1/4
1/4"-20 2 3 1/4 1 1/4 1 1/2
1/4"-20 1 1/2 3 1/2 2 1
5/16"-18 1 3/8 2  3/16 1 1
5/16"-18 1 3/8 3 11/16 1 1/2 1
5/16-18 1 3/4 2 11/16 1 1 1/4
5/16-18 2 2 11/16 1 1 1/2
5/16-18 2 3 11/16 1 1/2 1 1/2
5/16-18 2 1/2 3  3/16 1 1/2 2
3/8"-16 1 2 1/4 1 1/4 1/2"
3/8"-16 1 3/8 3 1/8 1 1/2 1
3/8"-16 1 1/2 2 1/2 1 1/4 1
3/8"-16 2 3 1/8 1 1/4 1 1/2
3/8"-16 2 1/2 3 5/8 1 1/2 2
3/8"-16 3 4 1/8 1 1/2 2 1/2
3/8"-16 3 5/8 4 5/8 1 1/2 3
1/2"-13 3 4 1/2 1 1/2 2 1/2
1/2"-13 3.5 5 1 1/2 3
1/2"-13 4 5 1/2 1 1/2 3 1/2
1/2"-13 4.625 6 1 1/2 4
1/2"-13 5.625 7 2 5
1/2"-13 6.75 8 2 6
1/2"-13 8.75 10 3/8 2 8
5/8"-11 8.75 11 1/2 4 8
