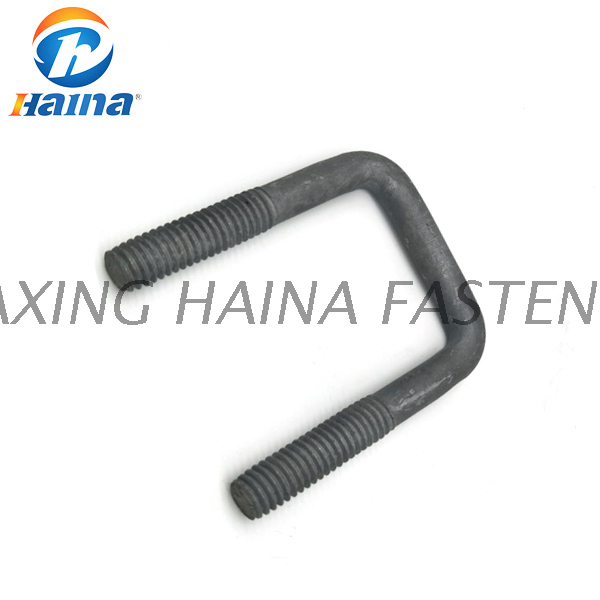

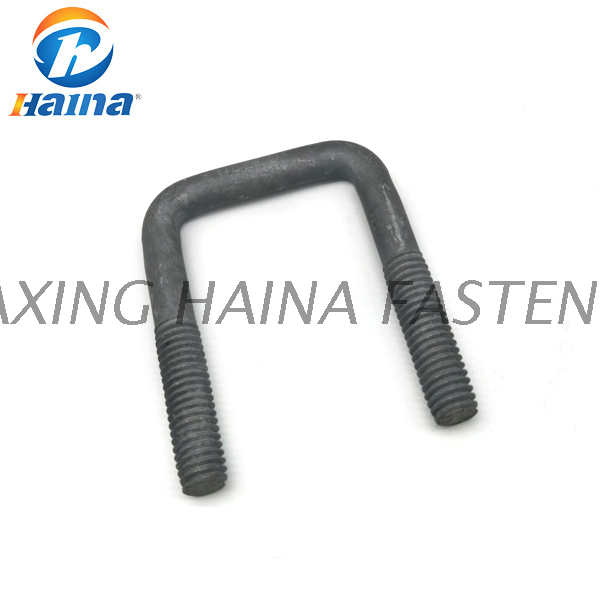

DIN 3570 hot-dip galvanized square U-bolt

DIN 3570 hot-dip galvanized square U-bolt

Hot-dip galvanized square U-bolts are important parts in industrial parts. Although they are small parts, improper use can have serious consequences and play a large role in industrial production and processing.

It is divided into many different models and types, these different varieties are designed to meet different industrial needs.

diameter:
Quantity:
  • Square U Type
  • HNF
  • 171229
  • 8.8
  • Round
  • Zhejiang, China (Mainland)
  • ISO9001

DIN 3570 hot-dip galvanized square U-bolt

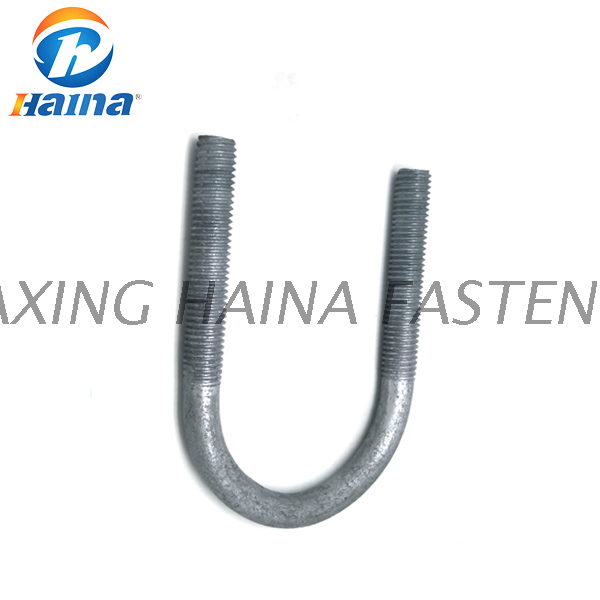

   The name of the riding bolt is U-bolt. It is a non-standard part. It is U-shaped and is also called U-bolt. The two ends are threaded and can be combined with the nut. It is mainly used to fix tubular objects such as water pipes or sheets such as automobile plates. The spring is called a riding bolt because it fixes the object like a person riding on the horse. Divided into full thread and non-full thread according to thread length

   The square u-bolt is suitable for various equipment fixing, steel structure foundation embedded parts, street lamps, traffic signs, pumps, boiler installation, and heavy equipment pre-buried and fixed.

   U-bolt type: M16-1000, M20-M52, M4-M48U bolt material: stainless steel, carbon steel, copper, nylon U-bolt Surface treatment: natural, galvanized, nickel-plated, chrome-plated, plated with Crowe. U-bolt strength grade: 4.8, 6.8, 8.8, 10.9, 12.9 ...

DIN 3570 hot-dip galvanized square U-bolt drawing


U-BOLT SPECIFICATIONS
Thread Diameter Width Between Legs Inside Length Thread Length Pipe Size





1/4"-20 3/4" 1 1/4 3/4" 3/8"
1/4"-20 3/4" 1 3/4 3/4" 3/8"
1/4"-20 3/4" 2 1/4 1 1/2 3/8"
1/4"-20 1" 1 3/4 3/4" 1/2"
1/4"-20 1-1/8" 2 3/4" 3/4"
1/4"-20 1-3/8" 2 1/4 3/4" 1"
1/4"-20 1 3/4 2 3/4 1 1 1/4
1/4"-20 2 3 1/4 1 1/4 1 1/2
1/4"-20 1 1/2 3 1/2 2 1
5/16"-18 1 3/8 2  3/16 1 1
5/16"-18 1 3/8 3 11/16 1 1/2 1
5/16-18 1 3/4 2 11/16 1 1 1/4
5/16-18 2 2 11/16 1 1 1/2
5/16-18 2 3 11/16 1 1/2 1 1/2
5/16-18 2 1/2 3  3/16 1 1/2 2
3/8"-16 1 2 1/4 1 1/4 1/2"
3/8"-16 1 3/8 3 1/8 1 1/2 1
3/8"-16 1 1/2 2 1/2 1 1/4 1
3/8"-16 2 3 1/8 1 1/4 1 1/2
3/8"-16 2 1/2 3 5/8 1 1/2 2
3/8"-16 3 4 1/8 1 1/2 2 1/2
3/8"-16 3 5/8 4 5/8 1 1/2 3
1/2"-13 3 4 1/2 1 1/2 2 1/2
1/2"-13 3.5 5 1 1/2 3
1/2"-13 4 5 1/2 1 1/2 3 1/2
1/2"-13 4.625 6 1 1/2 4
1/2"-13 5.625 7 2 5
1/2"-13 6.75 8 2 6
1/2"-13 8.75 10 3/8 2 8
5/8"-11 8.75 11 1/2 4 8
