M5-M64
HNF
7318160000

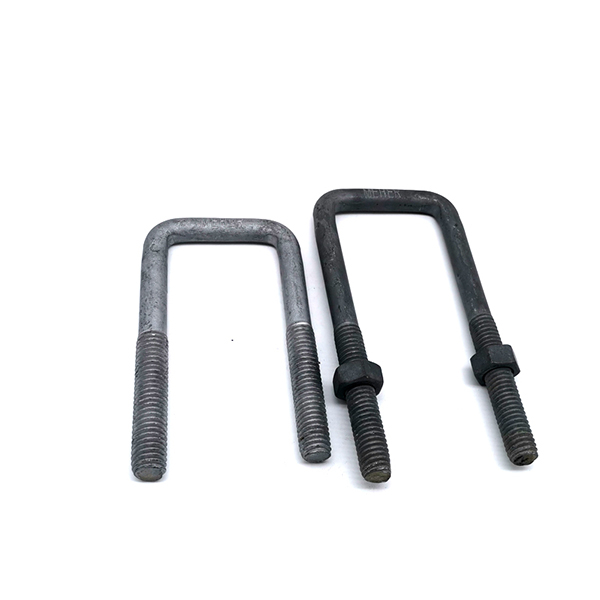

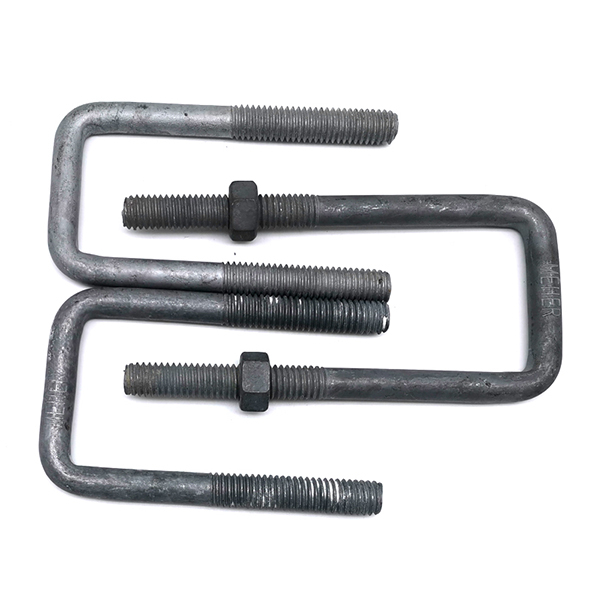

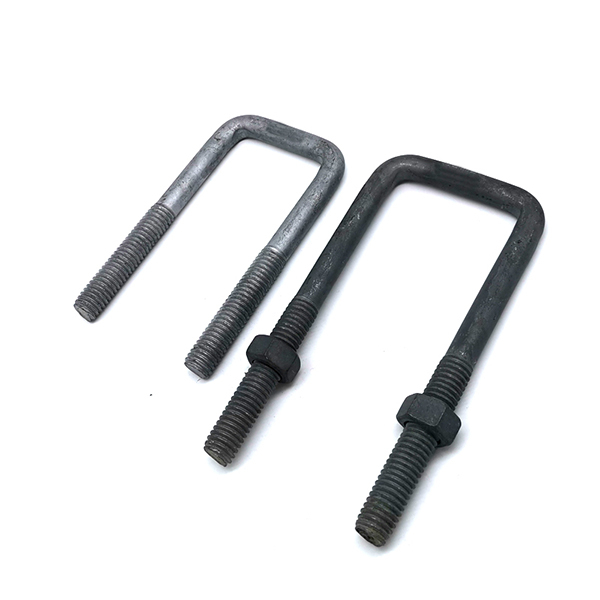

A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.U-bolts have primarily been used
to support pipework, pipes which fluids and gasses pass through. As such, U-bolts were measured using pipe work
engineering speak. A U-bolt would be described by the size of pipe it was supporting. For example, a 40 Nominal
Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the u-bolt. The nominal bore of a pipe is actually a measurement
of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of
fluid / gas it can transport. As U-bolts are now being used by a much wider audience to clamp any kind of
tubing / round bar then a more convenient measurement system needs to be used.
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
| Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L,F593 | ||||||
| Steel Grade: DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8; ASTM: 307A,307B,A325,A394,A490,A449, | |||||||
| Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
| Production Process | M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener | ||||||
| Customized Products Lead time | Busy season:15-30days,Slack seaon:10-15days | ||||||
| Stock Products | Steel:4.8Grade DIN6923,8.8Grade 10.9Grade of GB5783 and GB5782 Stainless steel: All DIN Standard stainless steel Bolt | ||||||
| Free Samples for standard fastener | |||||||
| For more information visit:www.hainafastener.com | |||||||
Drawing
| U-BOLT SPECIFICATIONS | ||||
| Thread Diameter | Width Between Legs | Inside Length | Thread Length | Pipe Size |
| 1/4"-20 | 3/4" | 1 1/4 | 3/4" | 3/8" |
| 1/4"-20 | 3/4" | 1 3/4 | 3/4" | 3/8" |
| 1/4"-20 | 3/4" | 2 1/4 | 1 1/2 | 3/8" |
| 1/4"-20 | 1" | 1 3/4 | 3/4" | 1/2" |
| 1/4"-20 | 1-1/8" | 2 | 3/4" | 3/4" |
| 1/4"-20 | 1-3/8" | 2 1/4 | 3/4" | 1" |
| 1/4"-20 | 1 3/4 | 2 3/4 | 1 | 1 1/4 |
| 1/4"-20 | 2 | 3 1/4 | 1 1/4 | 1 1/2 |
| 1/4"-20 | 1 1/2 | 3 1/2 | 2 | 1 |
| 5/16"-18 | 1 3/8 | 2 3/16 | 1 | 1 |
| 5/16"-18 | 1 3/8 | 3 11/16 | 1 1/2 | 1 |
| 5/16-18 | 1 3/4 | 2 11/16 | 1 | 1 1/4 |
| 5/16-18 | 2 | 2 11/16 | 1 | 1 1/2 |
| 5/16-18 | 2 | 3 11/16 | 1 1/2 | 1 1/2 |
| 5/16-18 | 2 1/2 | 3 3/16 | 1 1/2 | 2 |
| 3/8"-16 | 1 | 2 1/4 | 1 1/4 | 1/2" |
| 3/8"-16 | 1 3/8 | 3 1/8 | 1 1/2 | 1 |
| 3/8"-16 | 1 1/2 | 2 1/2 | 1 1/4 | 1 |
| 3/8"-16 | 2 | 3 1/8 | 1 1/4 | 1 1/2 |
| 3/8"-16 | 2 1/2 | 3 5/8 | 1 1/2 | 2 |
| 3/8"-16 | 3 | 4 1/8 | 1 1/2 | 2 1/2 |
| 3/8"-16 | 3 5/8 | 4 5/8 | 1 1/2 | 3 |
| 1/2"-13 | 3 | 4 1/2 | 1 1/2 | 2 1/2 |
| 1/2"-13 | 3.5 | 5 | 1 1/2 | 3 |
| 1/2"-13 | 4 | 5 1/2 | 1 1/2 | 3 1/2 |
| 1/2"-13 | 4.625 | 6 | 1 1/2 | 4 |
| 1/2"-13 | 5.625 | 7 | 2 | 5 |
| 1/2"-13 | 6.75 | 8 | 2 | 6 |
| 1/2"-13 | 8.75 | 10 3/8 | 2 | 8 |
| 5/8"-11 | 8.75 | 11 1/2 | 4 | 8 |
