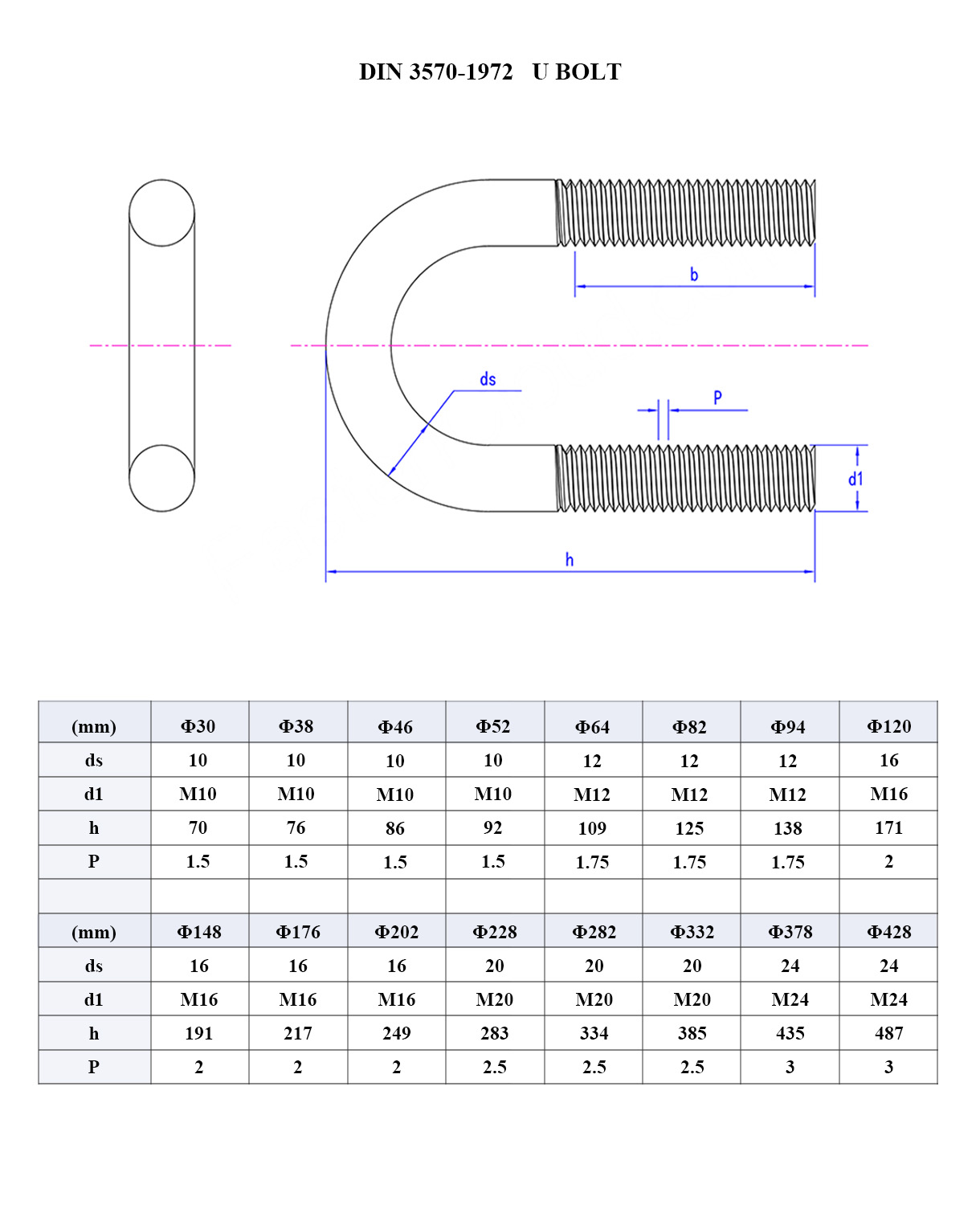

DIN3570
HNF
HNF2024120303

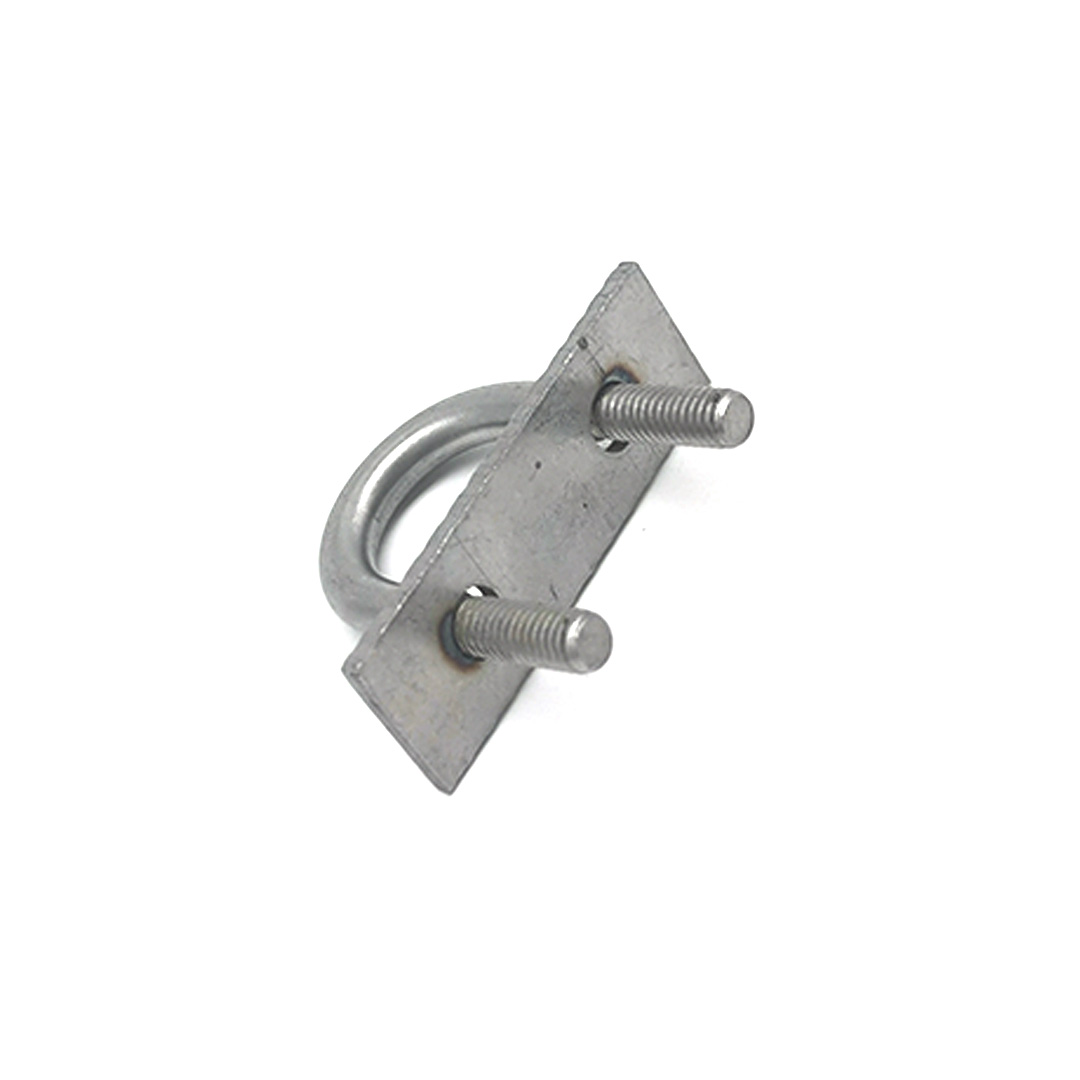

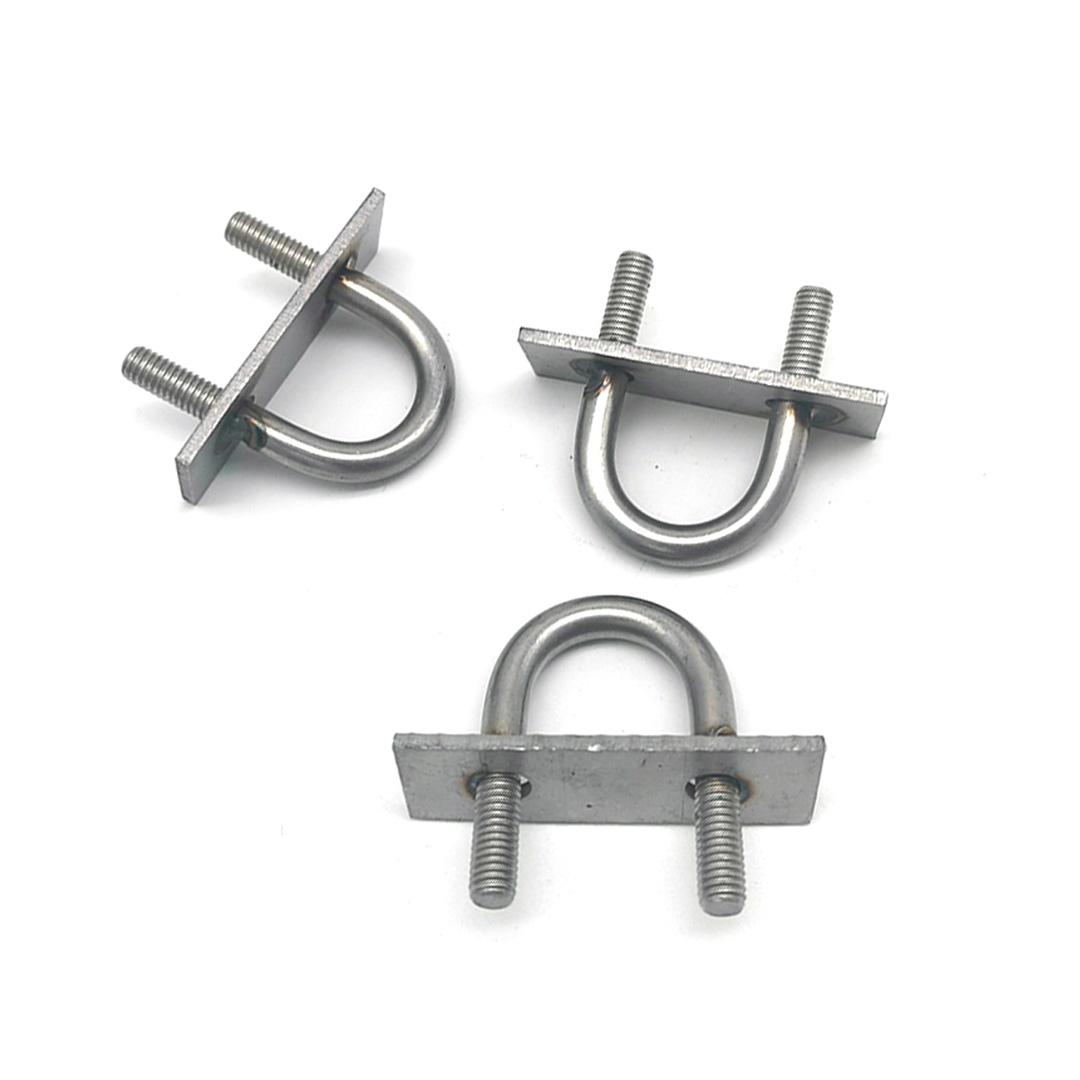

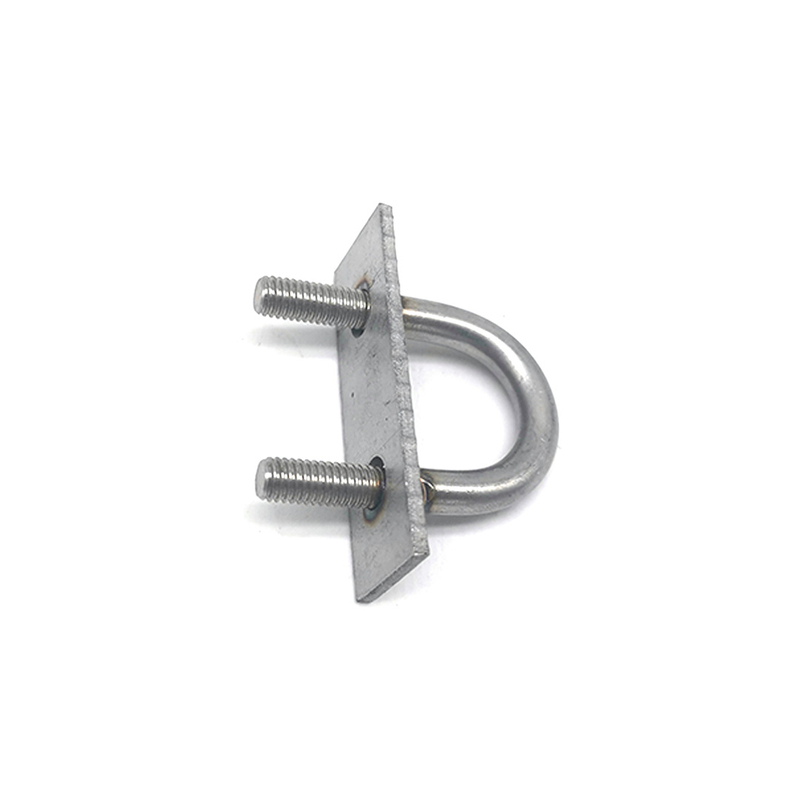

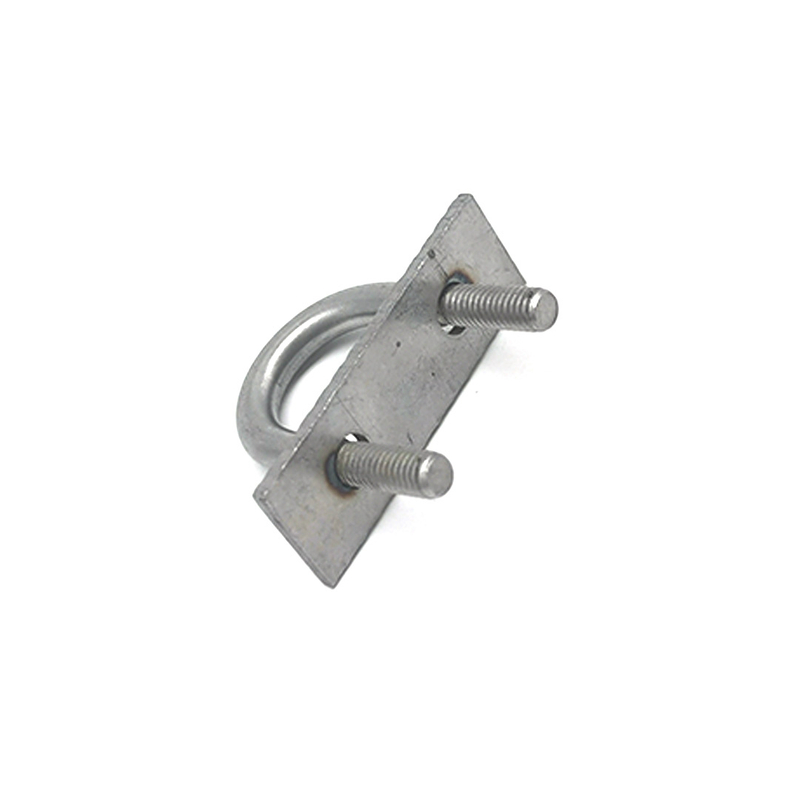

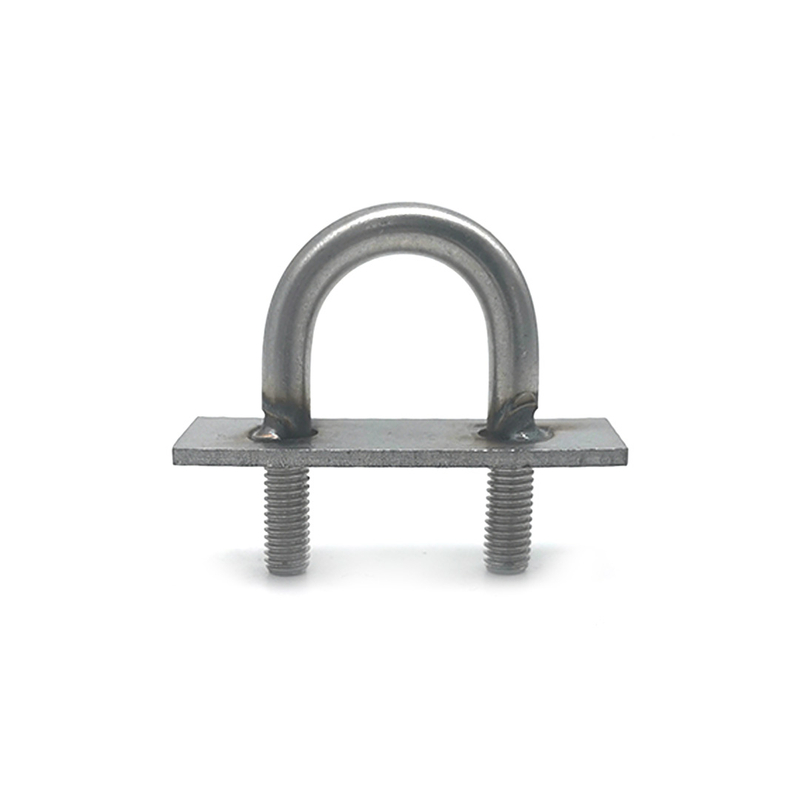

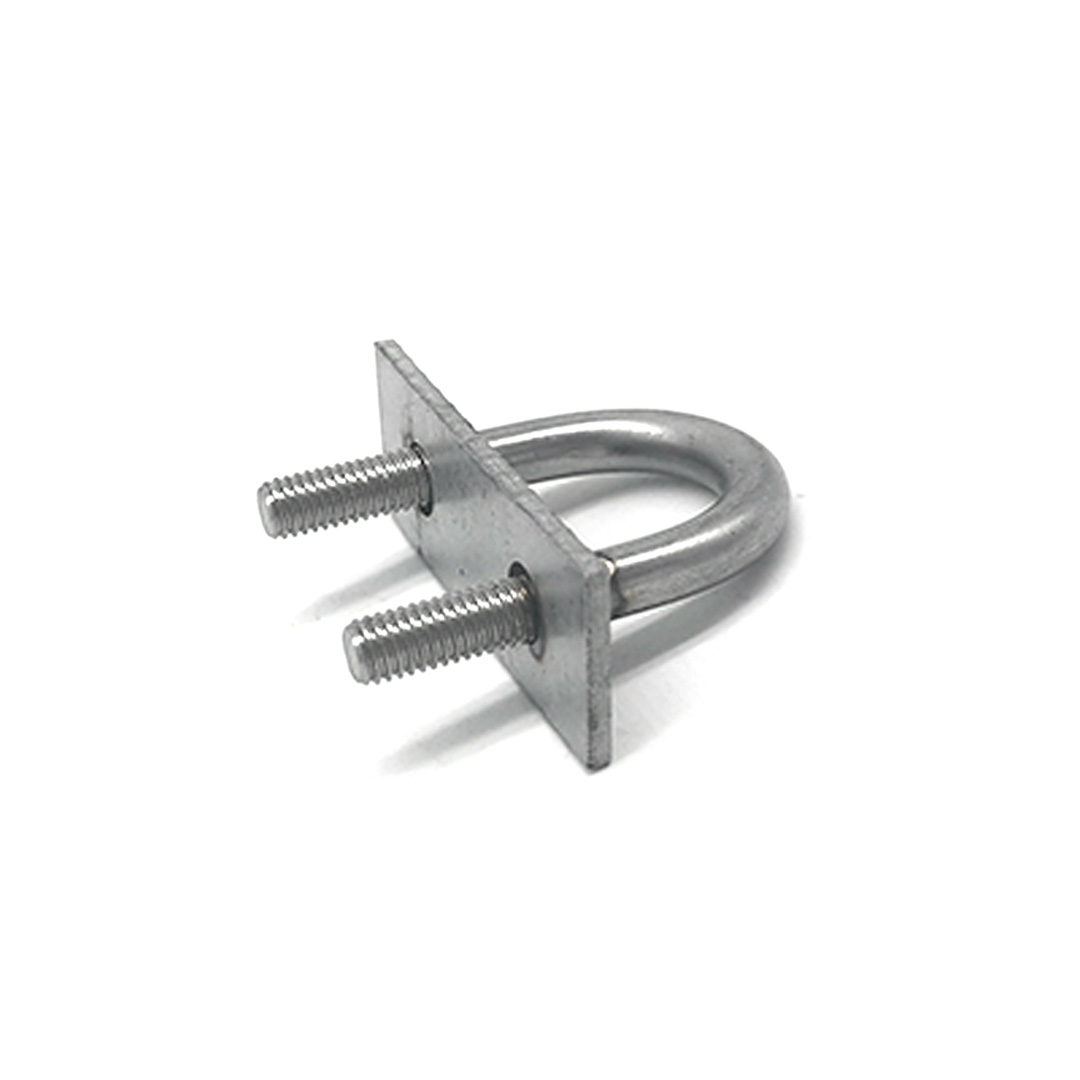

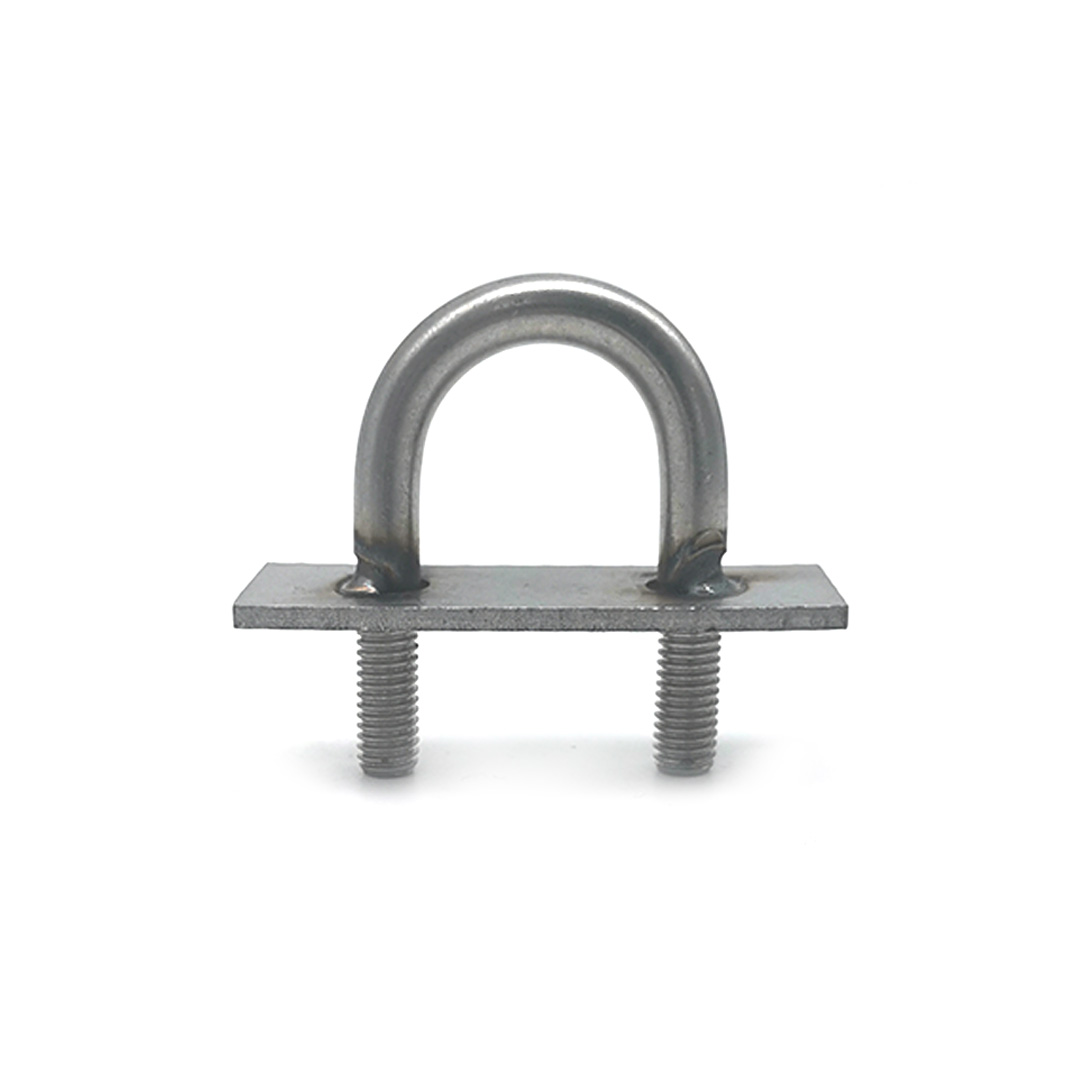

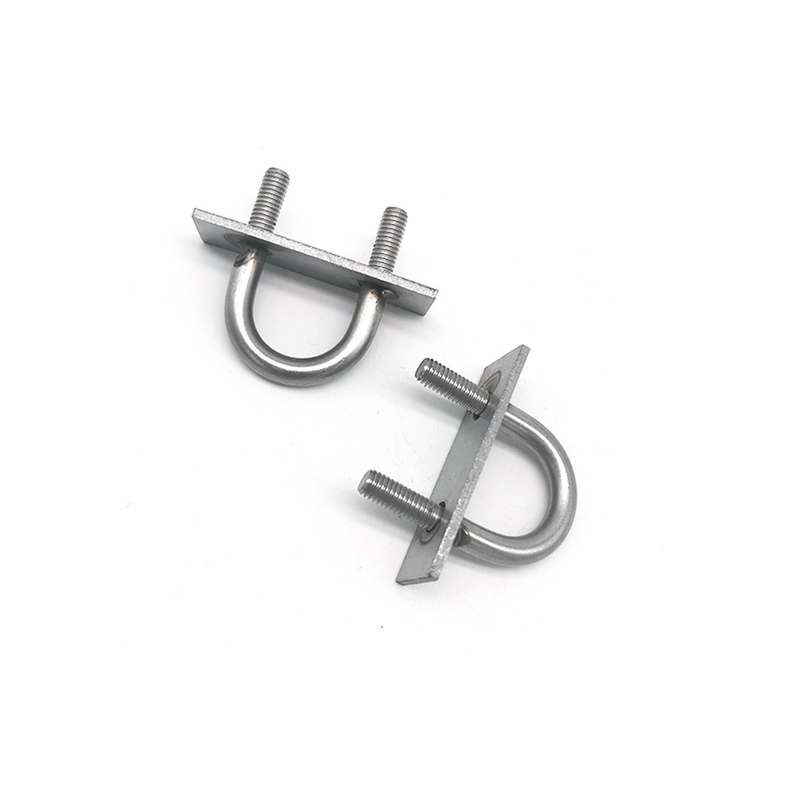

U-bolts and plates are a common fastener combination used to fix or connect circular pipes, rods or other similar structural elements.
U-bolts
Shape: "U" shaped, with threads at both ends.
Material: Usually made of carbon steel, stainless steel or alloy steel, galvanized or other anti-corrosion treatments can be selected according to the purpose.
Function: Used to wrap round or arc-shaped objects, such as pipes, rods, etc., to support or fix.
Steel plate
Function: Used in conjunction with U-bolts, usually as a bearing surface.
Shape: Mostly rectangular or arc-shaped, with a hole in the center for both ends of the U-bolt to pass through.
Use: Disperse the force of the U-bolt to prevent the nut from directly pressing on the fixed object and causing damage.
Fixing pipes (such as water pipes or ventilation ducts) on brackets.
Connecting rods, such as in the construction of scaffolding.
Fixing components in automobile axles or suspension systems.
Firm fixation: The U-bolt wraps the object, and the steel plate enhances the uniformity of force.
Easy installation: The fixation is completed after the nut is tightened.
Widely applicable: Commonly used in pipeline installation, automobile suspension systems, building structure connections, etc.
Haina is committed to providing customers with high-quality stainless steel standard fasteners and professional services to meet various engineering needs. We have a large amount of spot inventory to ensure fast delivery and save you waiting time. In addition, we provide the following value-added services to help your purchasing experience:
1. Free samples: provide samples for customer testing.
2. 3.1 Test report: quality test report that meets international standards.
3. Video factory inspection: support video factory inspection to demonstrate production process and quality management.
Advantages
- Sufficient inventory: quick response to order requirements.
- Quality assurance: strict quality control to ensure product reliability.
Haina is committed to providing efficient and high-quality fastener services.
What is a U-bolt used for?
A U - bolt is mainly used for fastening and securing objects. It's widely utilized in plumbing to hold pipes firmly in place, preventing movement. In the automotive field, it helps attach parts like leaf springs. Also, in construction, it's used to fix structural members and supports. It provides stability and connection in many mechanical and structural settings.
How do you know the size of a U-bolt?
The size of a U - bolt is determined by several factors. Measure the diameter of the threaded part, which indicates the nut size it will use. Also, measure the inside width of the U - shape to know what it can fit around. The length from the inner curve of the U to the end of the bolt (straight part) is another important dimension to consider.
What is the U-bolt formula?
For a U - bolt, a key formula is for calculating the length of the bolt (L). If the diameter of the round part the U - bolt is to encircle is D and the length of the straight part of the U - bolt is h, the approximate formula for the length of the U - bolt is L = πD/2 + 2h. This helps in determining the material needed for manufacturing and proper sizing for applications.
