Author: Site Editor Publish Time: 2025-05-13 Origin: Site
When it comes to vehicle suspension systems, especially in heavy-duty applications like trailers, trucks, or off-road vehicles, U Bolts play a critical role. These components are essential in securing leaf springs to the axle, ensuring stability and load distribution. One common question among vehicle owners and mechanics alike is: can you reuse u bolts on leaf springs?
This article delves deep into this subject, analyzing whether or not reusing leaf spring u bolts is advisable, along with a comprehensive examination of u bolt torque specs, the latest u bolt torque chart, and how custom u bolts, axle u bolts, and rear suspension u-bolts contribute to the overall suspension performance. We will also review best practices, failure risks, and the latest trends shaping the use of suspension u-bolts in modern transportation and equipment.

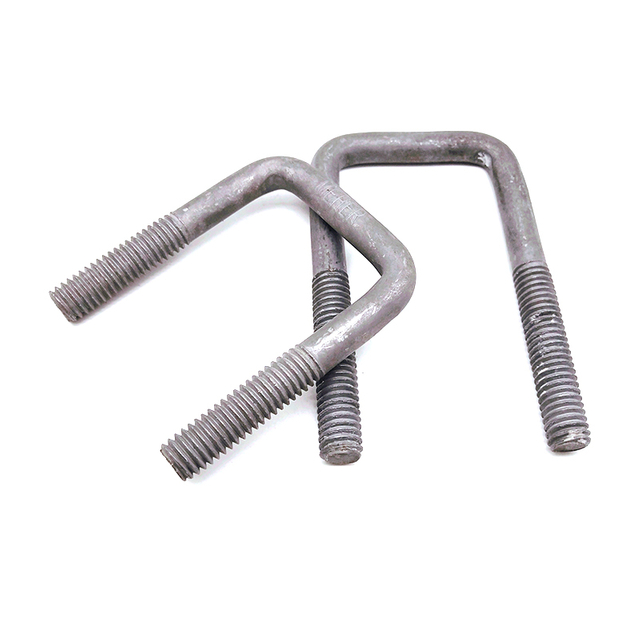

U Bolts are fasteners shaped like the letter "U" with threaded ends. They are typically used to attach leaf springs to a vehicle's axle, essentially forming a clamp that holds the spring pack firmly to the axle housing.
In a leaf spring suspension system, the U bolt’s job is to:
Provide clamping force to hold the spring tightly against the axle.
Maintain alignment of the axle to the frame.
Withstand dynamic forces from braking, acceleration, and road shocks.
Without properly functioning u bolts for leaf springs, the entire rear suspension or trailer axle setup becomes vulnerable to shifting, misalignment, or even complete failure under stress.
The short answer is no — reusing U bolts on leaf springs is not recommended. Here’s why:
Once torqued and then removed, U Bolts lose a significant portion of their original elasticity and tension. When reinstalled, they are unable to provide the same level of clamping force, even if torqued again to spec.
Used U Bolts may have stretched threads, compromising thread engagement and causing improper preload. This creates uneven loading across the suspension u-bolts and may result in loosening over time.
After removal, especially from older vehicles or trailer axle u bolts exposed to elements, corrosion and surface fatigue cracks are likely. These microscopic defects weaken the bolt and increase the likelihood of failure during use.
The integrity of rear suspension u-bolts is critical. Even minor failures can lead to severe handling problems, misalignment, or even axle displacement. For safety and performance, using new U Bolts with every installation is industry standard.
“Always replace U Bolts when removing or replacing leaf springs or axle components.”
Proper torque ensures that U Bolts provide consistent clamping force without causing damage to the threads or deforming the spring pack. Under-torqued bolts may loosen under load, while over-torqued bolts can stretch or fracture.
Here is a standardized u bolt torque chart for commonly used diameters and thread types:
| U Bolt Diameter | Grade | Torque Spec (ft-lbs) | Torque Spec (Nm) |
|---|---|---|---|
| 3/8" | Grade 5 | 30–35 | 40–47 |
| 7/16" | Grade 5 | 45–60 | 61–81 |
| 1/2" | Grade 8 | 70–90 | 95–122 |
| 9/16" | Grade 8 | 125–150 | 169–203 |
| 5/8" | Grade 8 | 150–200 | 203–271 |
| 3/4" | Grade 8 | 250–300 | 339–406 |
These are general values. Always refer to specific u bolt torque specifications provided by the manufacturer or installer.
To ensure optimum performance and lifespan, follow these steps:
Use New U Bolts – Never reuse, as discussed.
Clean Contact Surfaces – Remove rust, oil, or debris on axles and spring surfaces.
Use Correct Torque Tools – Always use a calibrated torque wrench.
Follow a Crisscross Pattern – When tightening, alternate sides to evenly distribute load.
Re-torque After Installation – Recheck after 100–200 miles or heavy usage.
In certain setups, custom u bolts are essential, especially for:
Lifted vehicles with aftermarket suspension geometry.
Specialized trailers or heavy-duty axle u bolts.
Non-standard axle tube diameters or spring widths.
Custom fabrication ensures the right length, bend radius, and thread engagement for unique requirements.
Material: SAE Grade 5 or Grade 8
Thread type: Rolled threads preferred for durability
Coating: Zinc or E-Coat for corrosion resistance
There are several types of U Bolts, each with its own application:
| U Bolt Type | Application | Pros | Cons |
|---|---|---|---|
| Round Bend | Round axle tubes (most common) | Easy to install | Less contact area |

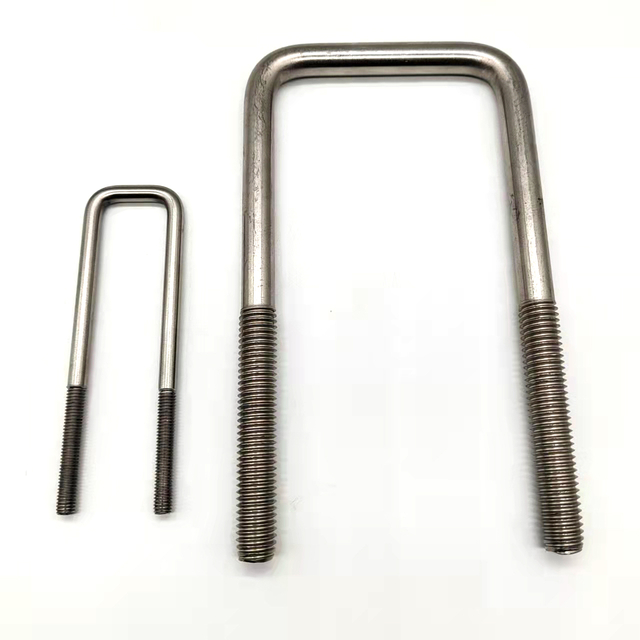

| Square Bend | Square axles or flat mounting plates | Better for leaf spring alignment | Harder to fabricate |
| Semi-Round Bend | For oval or special axle designs | Custom fit | Typically requires custom order |
| Threaded Leg | Custom adjustments possible | Great for variable applications | Requires frequent inspection |
Choosing the correct type ensures compatibility with your leaf spring u bolts or trailer axle u bolts.
With increased vehicle loads and harsher environments, there’s a growing demand for:
Made from Grade 8.8 or 10.9 steel, these are more resilient to fatigue and can maintain preload better than traditional materials.
Surface treatments help protect axle u bolts from road salt and moisture, especially in trailers or off-road applications.
Torque indicators or torque-retention washers are being adopted to monitor u bolt torque specs in real-time.
These innovations not only increase the lifespan of rear suspension u-bolts, but also reduce long-term maintenance costs.
Case 1: Pickup Truck Rear Axle Rebuild
A mechanic reused u bolts for leaf springs on a customer’s lifted pickup. Within two weeks, the rear axle shifted during highway driving due to bolt loosening. Damage to the driveshaft and rear alignment required over $1,200 in repairs.
Case 2: Trailer Suspension Upgrade
A trailer owner upgraded to high-capacity springs but reused the existing trailer axle u bolts. On the first haul, two bolts fractured under load. Inspection revealed significant corrosion and thread fatigue.
These examples underscore the risks of reusing suspension u-bolts — a practice that may seem cost-effective but can ultimately be dangerous and expensive.
Q1: How often should U bolts be replaced?
A: Whenever the leaf springs or axle are removed or replaced. Also replace if there are signs of corrosion or thread damage.
Q2: What is the correct torque spec for 5/8" U bolts?
A: Typically 150–200 ft-lbs. Always consult a u bolt torque chart for precise numbers.
Q3: Are all U bolts created equal?
A: No. Choose the correct diameter, material grade, and bend shape for your application.
Q4: Can I hand-tighten U bolts?
A: No. Use a torque wrench and follow manufacturer u bolt torque specifications.
So, can you reuse u bolts on leaf springs? Absolutely not. U bolts are critical safety components that must provide consistent and reliable clamping force. Reusing them compromises performance, increases the risk of failure, and can lead to costly repairs or dangerous accidents.
Whether you’re upgrading a rear suspension, installing new trailer axle u bolts, or configuring custom u bolts, always use new components and adhere to the recommended u bolt torque specifications. Consult the u bolt torque chart for guidance and invest in high-quality, coated, or high-tensile bolts when appropriate.
Remember, U Bolts may be small, but they carry a heavy responsibility — your vehicle’s safety and stability depend on them.
If you're looking for durable, precision-engineered u bolts or tailored solutions for unique axle setups, always choose trusted products that meet or exceed industry standards.
