A U bolt may appear simple in shape, but its application is deeply rooted in engineering precision. These U-shaped fasteners with threaded ends are critical in holding pipes, axles, leaf springs, and other structural elements in place across a wide range of industries. Whether you're working with axle U bolts on heavy-duty trucks or U bolt pipe clamps in plumbing and HVAC systems, accurate measurement ensures structural integrity and operational safety.
Improper measurements can result in mismatched U bolt sizes, leading to poor load distribution, material fatigue, or complete mechanical failure. This is especially true for custom U bolts used in non-standard configurations. In industries such as transportation, marine, or industrial construction, the margin for error is virtually zero.
Understanding how to measure U bolts allows technicians and engineers to avoid trial-and-error purchasing, reduce downtime, and ensure compatibility with torque specifications, brackets, or mounting components.

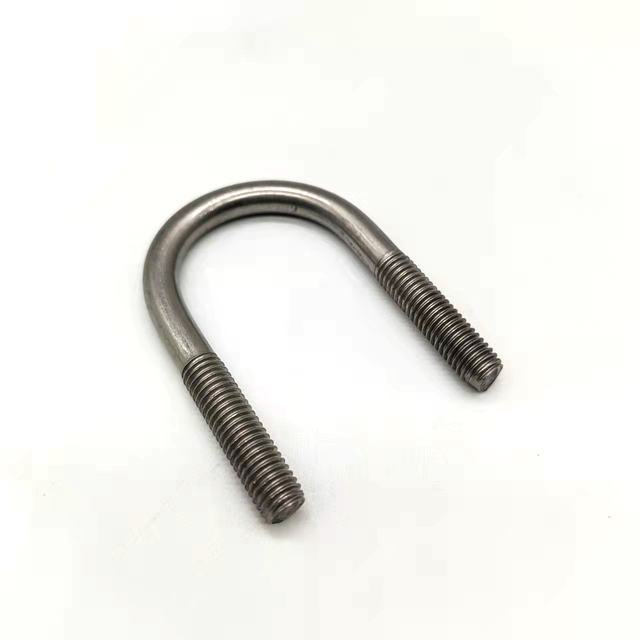

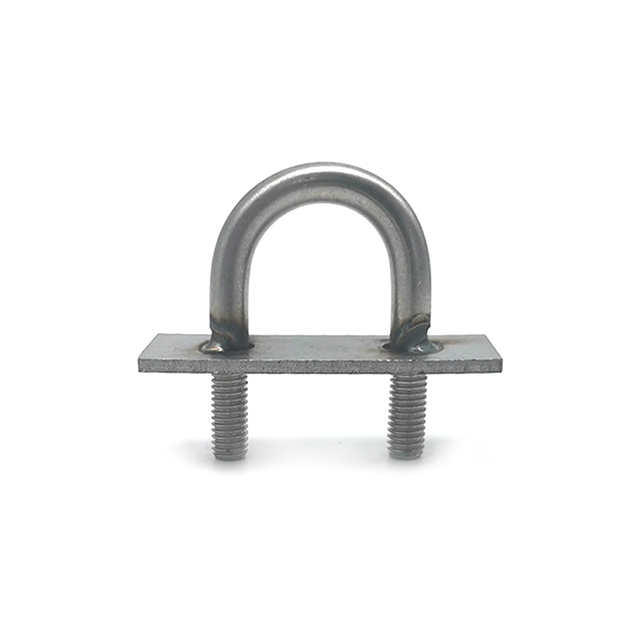

To accurately measure a U bolt, it's crucial to first understand its basic components:
Leg Length: The length of each threaded leg, measured from the inside of the curve to the end of the bolt.
Inside Width (Span): The distance between the inner sides of the legs.
Inside Length (Clearance): The depth from the bottom of the curve to the end of the leg.
Diameter: The thickness of the rod used to make the U bolt.
Thread Length: The portion of each leg that is threaded to accept nuts and washers.
Each of these parameters plays a role in determining proper fitment and strength. For example, the U bolt torque specs depend significantly on the diameter of the rod and the type of material (e.g., carbon steel, stainless steel, galvanized steel).
Measuring U bolts is straightforward but must be done precisely. Here's a detailed guide:
Use a caliper or micrometer to measure the diameter of the rod. This is one of the most critical dimensions because it directly affects the torque specs for U bolts and their load-bearing capacity.
Place your ruler or caliper inside the legs and measure the distance from one leg to the other. This tells you what pipe or object size the U bolt is designed to clamp.
From the inside of the curve to the bottom of the leg, measure the length. This ensures you have enough depth for the object you're securing.
If needed, measure how much of the leg is threaded. This matters for grip and torque application.
To assist with quick selection and comparison, here’s a U bolt dimensions reference table commonly used for pipes and axles:
| Rod Diameter (in) | Inside Width (in) | Inside Length (in) | Typical Use |
|---|---|---|---|
| 3/8" | 1.5" – 3" | 4" – 6" | Plumbing, light-duty pipe clamps |
| 1/2" | 2" – 4.5" | 5" – 7" | U bolt pipe clamps, trailer frames |
| 5/8" | 3" – 5" | 6" – 9" | Leaf spring U bolts, off-road axles |
| 3/4" | 4" – 6" | 7" – 10" | Axle U bolts, industrial suspension |
| 1" | 5" – 8" | 8" – 12" | Custom machinery, custom U bolts |
Not all U bolts are created equal. Square U bolts are designed to fit flat surfaces such as rectangular beams or square pipes. In contrast, standard round U bolts are made to wrap around cylindrical surfaces like round pipes or axles.
| Feature | Square U Bolts | Round U Bolts |
|---|---|---|
| Shape | Flat-bottom with 90-degree angles | Smooth curve (U shape) |
| Common Use | Beams, channels, equipment frames | Pipes, trailer axle U bolts, tubes |
| Torque Distribution | Even along flat edges | Concentrated at contact curve |
| Popular Sizes | 1/2", 5/8", 3/4" | 3/8", 1/2", 5/8", 3/4" |
Applying the correct torque to a U bolt is just as important as choosing the right size. Overtightening can strip threads or deform the material, while undertightening can lead to loosening under vibration.
U bolt torque specs vary based on rod diameter, thread pitch, and material type. Here's a simplified U bolt torque chart:
| Rod Diameter | Grade 5 Torque (ft-lbs) | Grade 8 Torque (ft-lbs) |
|---|---|---|
| 3/8" | 31 | 45 |
| 1/2" | 75 | 110 |
| 5/8" | 150 | 212 |
| 3/4" | 265 | 380 |
| 1" | 500 | 750 |
Always refer to the manufacturer's torque specs for U bolts or engineering guidelines based on the load scenario. Incorrect torque is a frequent cause of leaf spring U bolt failure in automotive and trailer setups.
The right U bolt depends on your specific use case. Here's a summary for common applications:
Use trailer axle U bolts or leaf spring U bolts
Requires high torque (e.g., 150–300 ft-lbs)
Must match axle tube diameter and spring pack height
Recommend coated or galvanized finish for corrosion resistance
Choose U bolt pipe clamps
Focus on inside width and leg length to match pipe OD
Stainless steel preferred in corrosive environments
Use square U bolts or custom U bolts
May need specific torque values and non-standard thread lengths
Custom bending often required for beam-based clamping
Sometimes, standard U bolt sizes simply don’t meet project requirements—whether due to unusual dimensions, special loads, or harsh operating environments. That’s where custom U bolts become essential.
Custom U bolts may feature:
Oversized diameters (1-1/4" or more)
Specialty coatings (Teflon, epoxy, hot-dip galvanized)
Custom bend radius or non-standard thread length
Precision fitment for one-off assemblies or limited runs
When requesting custom U bolts, always provide full specifications:
Material type
Inside width and length
Leg length
Rod diameter
Thread length
Application use (axle, pipe, frame, etc.)
Avoid these typical errors:
Measuring outside width instead of inside width, leading to loose or tight fit.
Ignoring thread length—especially critical for clamping strength.
Using the wrong torque, which can destroy threads or loosen clamps over time.
Not accounting for plating thickness in galvanized or coated U bolts.
Mixing metric and imperial units—always stick to one standard.
Measure the inside width to match the axle tube diameter, and the inside length based on spring pack height plus hardware clearance. Choose the correct torque specs for U bolts based on diameter and material.
It’s not recommended. Once torqued and stretched, U bolts can lose clamping force. Always use new axle U bolts or leaf spring U bolts for safety.
Not inherently—they are just different in form. Strength depends more on material grade and diameter than shape. Square U bolts are better suited for flat mounting surfaces.
When selecting or specifying a U bolt, always:
Measure precisely using calipers or micrometers
Choose the correct U bolt dimensions for your application
Refer to a reliable U bolt torque chart
Avoid mixing sizes or torque values across assemblies
Consult experts for custom U bolts if standard ones don’t meet your needs
For enhanced safety and performance, invest in quality fasteners, and always double-check your measurements before ordering or installing a U bolt. Proper sizing, material selection, and torque application are the keys to longevity and load integrity.
Need help choosing the right U bolt? Whether you're replacing trailer axle U bolts or specifying high-load U bolt pipe clamps, understanding how to measure U bolts and matching them to the correct torque specs will give your project a professional edge and long-lasting reliability.
