Expansion bolts, as a commonly used type of fastener, play a crucial role in various construction, installation, and maintenance projects. Their unique fastening mechanism and wide - ranging adaptability make them indispensable in many scenarios. This article will comprehensively explore the knowledge of expansion bolts, covering their working principles, structural components, types, applications, and selection considerations.

The working principle of expansion bolts is based on the mechanical expansion effect. When an expansion bolt is installed, it consists of several key steps. First, a hole with an appropriate diameter and depth is drilled in the base material (such as concrete, brick wall, etc.). Then, the expansion bolt, which mainly includes a bolt body, an expansion sleeve, and a nut, is inserted into the pre - drilled hole.

As the nut is tightened, the bolt body is pulled outward. The cone - shaped end of the bolt body gradually squeezes the expansion sleeve. Since the expansion sleeve is restricted by the wall of the hole in the base material, it deforms and expands outward. This expansion generates a large frictional force between the expansion sleeve and the inner wall of the hole, firmly locking the expansion bolt in the base material. As a result, the object to be fixed can be firmly connected to the base material through the expansion bolt, achieving a reliable fastening effect.

The bolt body is the core part of the expansion bolt, responsible for transmitting tension. It is usually made of high - strength metal materials such as carbon steel or stainless steel. The shape of the bolt body varies depending on different types of expansion bolts. Generally, it has a threaded section for screwing on the nut and a special - shaped end (such as a cone - shaped end) that interacts with the expansion sleeve to achieve the expansion function. The strength and size of the bolt body directly affect the load - bearing capacity of the expansion bolt.

The expansion sleeve is a key component that realizes the expansion and fixation of the expansion bolt. It is usually made of metal or plastic materials. Metal expansion sleeves have higher strength and are suitable for heavy - duty applications, while plastic expansion sleeves are more suitable for light - duty or decorative applications due to their lower cost and better adaptability to some soft base materials. The expansion sleeve has a certain length and outer diameter, and its inner diameter is designed to match the bolt body. When the bolt body exerts pressure on it, the expansion sleeve deforms and tightly adheres to the inner wall of the hole in the base material.

The nut is used to tighten the expansion bolt. By screwing the nut, the pulling force on the bolt body is generated, triggering the expansion of the expansion sleeve. Nuts come in various types, such as hexagonal nuts, wing nuts, etc. The choice of nut type depends on the specific installation requirements and operating convenience. In some cases, washers are also used in conjunction with nuts to evenly distribute the pressure and prevent damage to the surface of the fixed object.

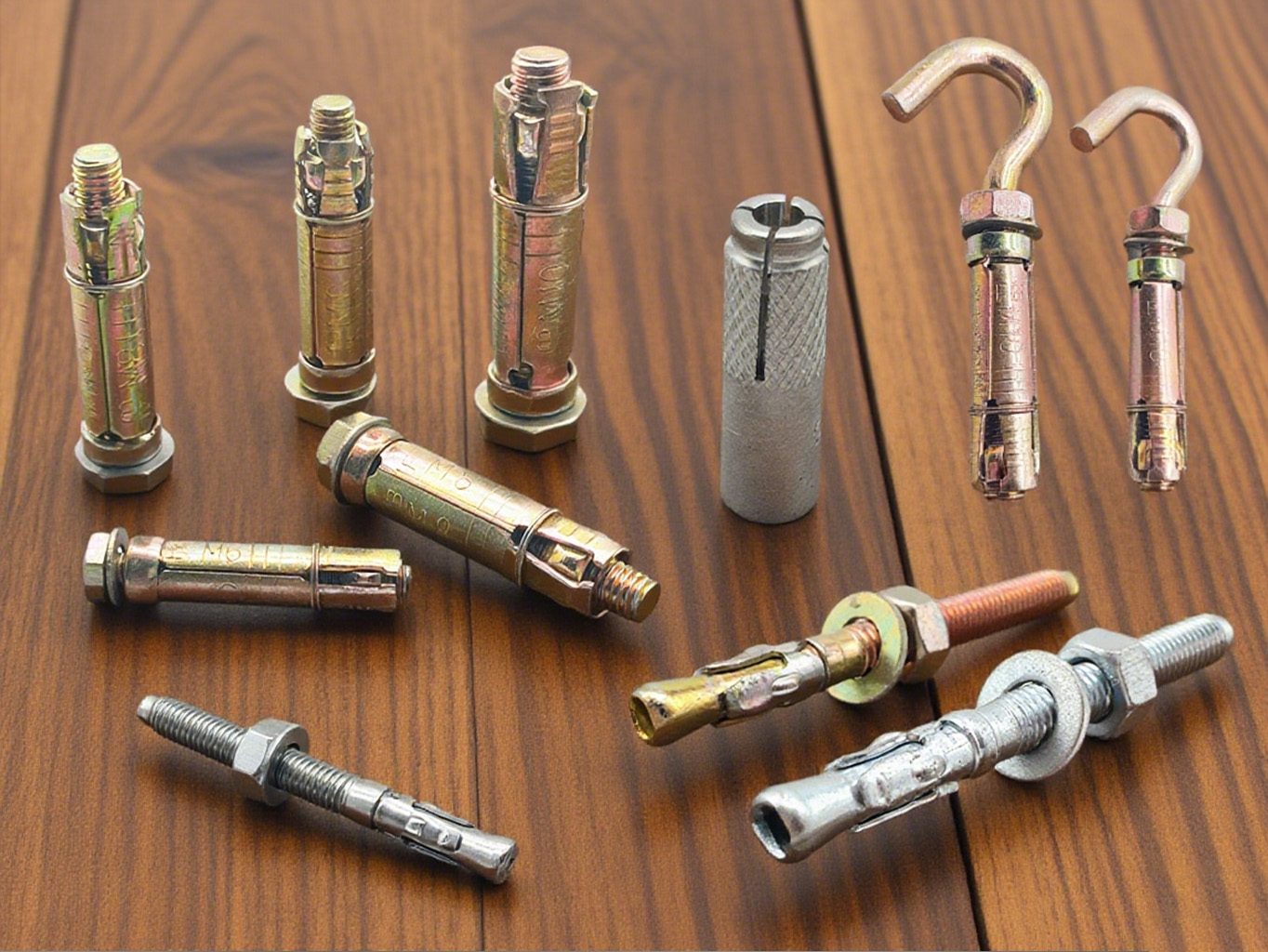

Metal expansion bolts are the most commonly used type. They are made of high - strength metal materials, with excellent load - bearing capacity and durability. Metal expansion bolts are suitable for fixing heavy - duty equipment, large - scale structures, and other applications on hard base materials such as concrete and solid brick walls. According to different structural designs, they can be further divided into ordinary metal expansion bolts, sleeve - type metal expansion bolts, and stud - type metal expansion bolts. Each type has its own characteristics and application scenarios. For example, sleeve - type metal expansion bolts have better anti - loosening performance, while stud - type metal expansion bolts are more suitable for scenarios where a longer connection length is required.

Plastic expansion bolts, also known as nylon expansion bolts, are mainly made of plastic materials. They are lightweight, have good insulation properties, and are relatively inexpensive. Plastic expansion bolts are mainly used for fixing light - weight objects such as picture frames, small - scale decorative boards, and electrical accessories on brick walls, plasterboard walls, or some relatively soft base materials. Although their load - bearing capacity is lower than that of metal expansion bolts, they are sufficient for many light - duty applications.

Chemical expansion bolts are a new type of fastener that combines the principles of traditional expansion bolts with chemical bonding. They consist of a bolt, a chemical adhesive, and a sleeve. When installed, the chemical adhesive is injected into the pre - drilled hole first. Then, the bolt is inserted into the hole, and the chemical adhesive cures and bonds with both the bolt and the base material. Chemical expansion bolts have high load - bearing capacity, good seismic performance, and are suitable for applications in various complex environments, especially in situations where high - strength and reliable fixation are required, such as in seismic - resistant construction and the installation of important equipment.

In the construction field, expansion bolts are widely used. They are used to fix structural components such as steel beams, columns, and wall panels, ensuring the stability and integrity of the building structure. For example, in the construction of industrial plants, expansion bolts are often used to connect steel structures to concrete foundations, transmitting the load of the steel structure to the foundation. In addition, expansion bolts are also used for installing various building accessories, such as curtain walls, railings, and pipelines, making these accessories firmly integrated with the building.

In home decoration, expansion bolts play an important role. They are used to install heavy - duty furniture, such as wardrobes, bookcases, and wall - mounted TVs. By using expansion bolts, these furniture and appliances can be firmly fixed on the wall, ensuring safety and stability. Moreover, expansion bolts are also used for installing decorative items, such as large - sized mirrors and wall - hanging shelves, adding beauty and functionality to the home environment.

In mechanical and electrical installation projects, expansion bolts are essential fasteners. They are used to fix electrical equipment, such as electrical cabinets, motors, and transformers, ensuring the stable operation of the equipment. In addition, expansion bolts are also used for installing mechanical components, such as brackets, pulleys, and guide rails, ensuring the accuracy and reliability of mechanical movement.

The type of base material is a crucial factor in selecting expansion bolts. Different base materials have different mechanical properties, and the appropriate expansion bolt type needs to be selected accordingly. For hard base materials such as concrete and solid brick walls, metal expansion bolts with high load - bearing capacity are usually suitable. For soft base materials such as plasterboard walls and hollow brick walls, plastic expansion bolts or special - designed expansion bolts for soft base materials should be selected to avoid damage to the base material and ensure a reliable fixing effect.

The load - bearing requirements of the fixed object must be accurately calculated and considered. According to the weight, size, and working conditions of the object to be fixed, select an expansion bolt with a suitable specification and type. If the load - bearing requirement is large, metal expansion bolts or chemical expansion bolts with high strength should be selected. It should be noted that when calculating the load - bearing capacity, factors such as dynamic load, static load, and impact load need to be comprehensively considered to ensure the safety of the fixing system.

The environmental conditions where the expansion bolts are used also have an impact on the selection. In humid environments, corrosion - resistant materials such as stainless - steel expansion bolts should be selected to prevent rust and ensure the service life of the expansion bolts. In high - temperature or low - temperature environments, expansion bolts with good thermal stability need to be selected to avoid performance degradation due to temperature changes. In addition, in environments with chemical corrosion, chemical expansion bolts with appropriate chemical resistance should be used.

In conclusion, expansion bolts, with their unique working principle and diverse types, have a wide range of applications in different fields. Understanding the knowledge related to expansion bolts, including their structural components, types, applications, and selection considerations, is of great significance for ensuring the reliability and safety of fastening operations. Whether in large - scale construction projects or daily home use, correct selection and use of expansion bolts can effectively improve the quality and safety of projects and life.
