The Evolution of Solar Fasteners: From Hex Bolts to Smart Clamping Systems

The humble fastener plays an outsize role in photovoltaic systems—where a single compromised connection can trigger cascading failures across an entire solar array. Through years of field testing and engineering refinement, the solar industry has converged on several dominant fastening technologies that balance structural integrity with installation efficiency. Among these, hex-head bolts and self-tapping screws have emerged as the undisputed workhorses of solar installations worldwide, while specialized solutions continue evolving for emerging applications.

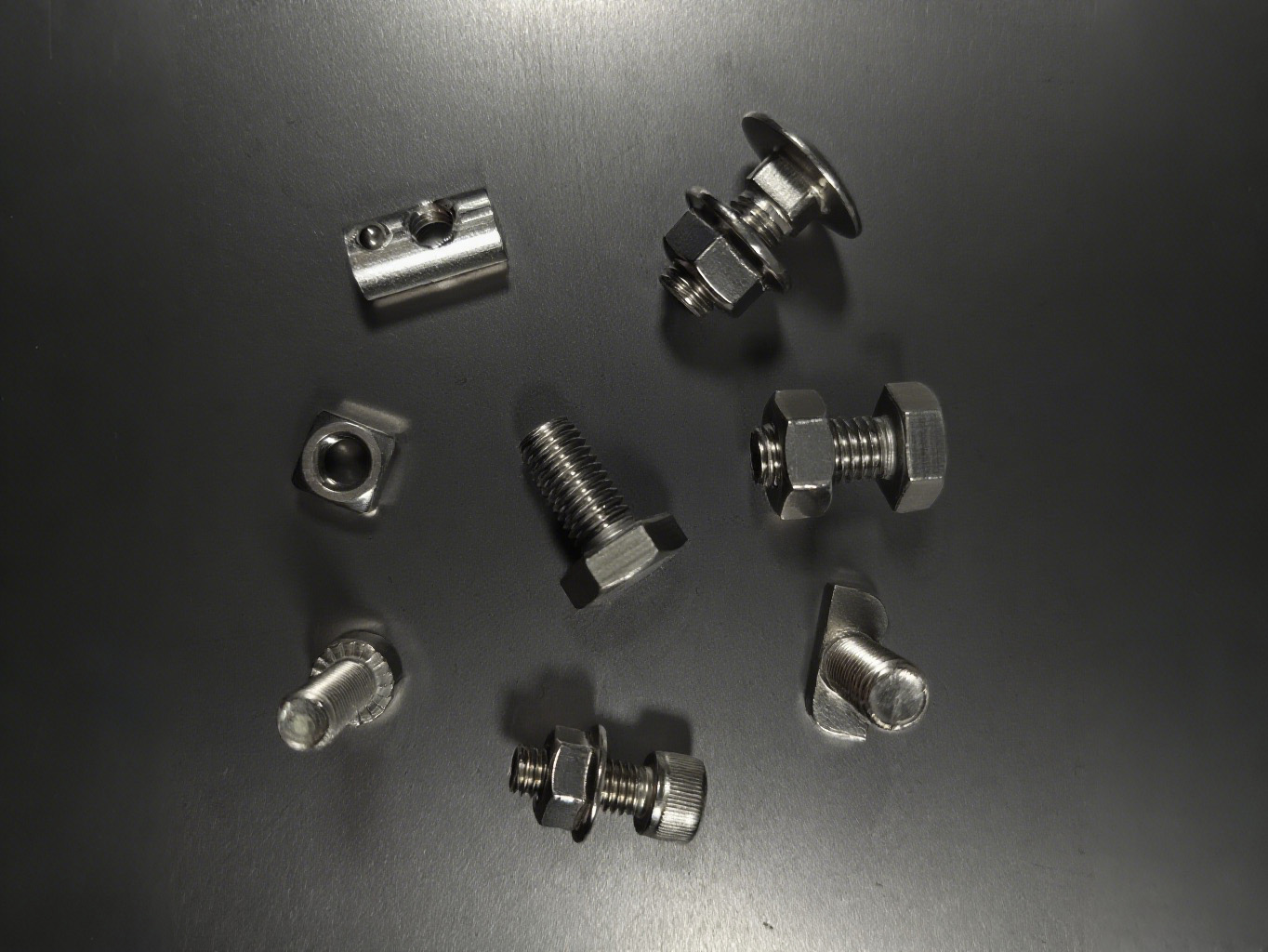

1. The Reign of Hex-Head Bolts: The Industry Standard

External hex bolts dominate structural connections throughout ground-mount and commercial rooftop installations. Their geometric design delivers critical advantages:

• Torque transmission superiority: The six flat sides provide maximum wrench contact area, enabling precise torque application up to 25 Nm without slippage—essential for maintaining consistent clamping force across aluminum joints35.

• Corrosion defense systems: Dual-metal composite versions (stainless steel heads with carbon steel shanks) combine affordability with longevity. Surface treatments like hot-dip galvanizing (45-85μm zinc coating) or zinc-aluminum-magnesium alloys provide 500+ hour salt spray resistance—critical for coastal sites13.

• Vibration resistance: Prevailing-torque nuts with nylon inserts or deformed threads prevent loosening under wind-induced harmonics, a key failure mode in exposed locations9.

These bolts form the backbone of critical structural joints—connecting rails to purlins, clamping module frames, and securing torque tubes in trackers. Their standardized dimensions (M8-M12 predominating) streamline global supply chains while compatibility with impact drivers accelerates installation.

2. Self-Tapping Screws: The Roofing Specialist

When penetrating metal substrates—especially in rooftop applications—self-tapping screws with drill points and hex heads dominate:

• Integrated drilling & threading: Sharp notched points penetrate 1.5-2.5mm steel without pilot holes, while spaced threads (6-8 TPI) form clean channels37.

• Watertight sealing: EPDM washers compressed beneath flange heads create IP68-rated seals—critical when penetrating waterproofing layers7.

• Optimized geometry: "Cee" washers distribute load across thin-gauge purlins, while Type-17 points prevent sheet metal lifting during drilling7.

These screws excel in attaching roof mounts to trapezoidal steel (as thin as 0.7mm), where speed and leak prevention are paramount. Installation rates approach 150-200 screws/hour using cordless impact drivers.

3. Emerging Solutions for Flexible & Floating Systems

As solar expands into unconventional sites, specialized fasteners have emerged:

• Bimetal Composite Pins: In floating PV, stainless-over-carbon pins resist electrolytic corrosion while maintaining shear strength >400 MPa—critical for wave-loaded structures3.

• Smart Locking Clamps: Patent-pending designs like the "slide-and-lock" edge clamp (e.g., JX-JJ019 series) enable tool-less module adjustments ±15mm during installation—reducing alignment time by 30%7.

• Hinged Structural Pins: For flexible cable systems, articulated pins with self-lubricating bushings accommodate ±8° of angular deflection without binding—preventing stress concentration at anchor points49.

4. Critical Selection Criteria: Beyond Basic Function

Choosing the right fastener involves multilayered analysis:

• Material compatibility: Insulating sleeves prevent galvanic corrosion between aluminum rails and steel fasteners—a major cause of premature failure9.

• Dynamic loading tolerance: In high-wind zones (e.g., typhoon regions), wedge-locking washers maintain tension under cyclic loads exceeding 0.7g accelerations.

• Installation error-proofing: Color-coded components (blue for stainless, yellow for HDG) prevent material mixing, while integrated torque indicators confirm proper tension5.

Comparative Analysis of Dominant Solar Fastener Types

5. The Future: Smarter, Stronger, Simpler

Innovation continues to reshape solar fastening:

• RFID-Enabled Smart Bolts: Microchipped fasteners transmit real-time tension data via site networks—flagging under-torqued connections before failures occur8.

• Shape-Memory Polymers: Self-tightening washers that expand/contract with temperature to maintain optimal clamp load as metals thermally cycle6.

• Robotic Installation Pairs: Precision-drive heads designed for automated installers—enabling consistent 12 Nm torque application at rates of 1,200+ fasteners/hour6.

For engineers and installers, fastener selection remains a critical determinant of system longevity. While hex-head bolts and self-tappers currently dominate, the future points toward intelligent, adaptive connection systems that actively contribute to PV performance—transforming passive hardware into responsive components of the energy ecosystem. As solar scales toward terawatt levels, these unassuming heroes will continue underpinning the industry’s structural integrity one connection at a time.
