Author: Site Editor Publish Time: 2025-06-11 Origin: Site

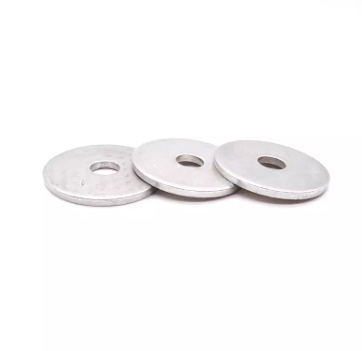

When it comes to choosing the right flat washer, knowing its size is a must. You’ll need to measure three key aspects: the inner diameter, the outer diameter, and the thickness. These exact dimensions ensure the washer fits snugly with your bolt or screw. Plus, they help distribute loads evenly and protect surfaces from damage. Flat Washers and Fasteners work together to create a stable connection, so getting the size right is critical. Grab your tools, and let’s make sure you measure like a pro!
Calipers are great for measuring flat washers accurately. They can measure the hole size, outside size, and thickness. Open the caliper jaws, place them on the washer, and check the reading.
Exact measurements are important for things like airplanes or medical tools. Even small mistakes can cause big problems. For example, a washer with a 10mm hole might need to be very exact to fit perfectly. Calipers help you get this accuracy, making them important for precise jobs.
If you don’t have calipers, a ruler can still work. Put the washer on a flat surface and line up the ruler. Measure the hole size by placing the ruler across it. Then measure the outside size by checking the widest part.
Rulers aren’t as exact as calipers but are fine for quick checks. For metric washers, you can compare sizes to match bolts or screws easily.
To measure how thick a washer is, use a micrometer. Micrometers are made to measure small sizes very accurately. Put the washer between the micrometer’s parts and turn the handle until it touches lightly. Look at the reading on the scale or screen.
Micrometers are helpful for making sure the washer’s thickness is correct. This matters when the washer needs to spread weight or protect surfaces properly.
The inner diameter (ID) is the hole in the washer's center. To measure it:
Put the washer on a flat surface.
Use a ruler or calipers to measure across the hole. Make sure the tool is straight for accurate results.
Check your measurement with standard washer sizes to ensure it fits the bolt or screw.
Standards like DIN 125 and ISO 7089 set size rules for washers. These rules help washers fit bolts or screws perfectly. Washers come in metric or imperial units, so confirm the unit type before measuring.
Tip: For standard washers, check manufacturer guides to avoid size mismatches.
The outer diameter (OD) shows the washer's full size and load spread. Follow these steps:
Lay the washer flat and measure its widest part with a ruler or calipers.
Keep the tool straight and level for correct readings.
Match the measurement with your assembly needs to ensure it fits.
Technical guides explain that Nord-Lock washers are made for counterbore holes under DIN 974. This design helps spread weight and keep fasteners stable.
The washer's thickness is key for spreading weight and protecting surfaces. To measure it:
Use a micrometer to get an exact thickness reading. Place the washer between the micrometer's jaws and turn the handle gently.
Look at the scale or screen to see the thickness.
Compare the thickness with your assembly needs to ensure it matches.
Thickness affects how well the washer spreads weight and protects surfaces. For important uses, always check the thickness listed by the maker.
Standard | Inner Diameter Measurement |
|---|---|
DIN 125 | ± tolerance is applied to the nominal size |
ISO 7089 | ± tolerance is applied to the nominal size |
Note: Clean the washer first to remove dirt that might change the measurement.
Flat washers have two types of sizes: nominal and actual. The nominal size is the label on the package. It helps match washers with bolts or screws. The actual size is the washer's real measurements. These include the inner diameter, outer diameter, and thickness.
For example, a washer labeled "1/4 inch" might measure 0.281 inches inside. This happens because of manufacturing tolerances. Metric washers allow a ±1mm tolerance for diameter. Thickness must follow strict standards.
Washer Type | Size Characteristics | Applications |
|---|---|---|
SAE | Smaller and thinner, smaller inside diameter | Automotive and mechanical applications |
USS | Larger and thicker, larger inside diameter | Construction and industrial applications |
Knowing this difference helps you pick the right washer. Always check actual measurements for precise projects.
Tip: Use a washer size chart to compare nominal and actual sizes. This avoids mistakes and saves time.
Flat washers use two systems: metric and imperial. Metric washers are measured in millimeters. Imperial washers use inches. Mixing these systems can cause mismatched parts.
Metric washers are common in Europe and Asia. Imperial washers are popular in the United States. For example, a metric washer might be 10mm inside. A similar imperial washer would be labeled 3/8 inch.
Here’s a comparison:
Metric washers follow standards like DIN 125 and ISO 7089.
Imperial washers follow SAE and USS standards for thickness and diameter.
Check your bolt or screw specifications to choose the right system. Matching the washer size ensures a good fit and spreads weight evenly.
Note: Keep a washer size chart nearby. It helps convert between metric and imperial sizes quickly.
The right washer size fits your bolt or screw perfectly. A washer that’s too small won’t fit. A washer that’s too big won’t spread weight well. Focus on three dimensions: inner diameter, outer diameter, and thickness.
Standards like ASME PCC-1, Appendix M, guide washer and bolt matching. These rules are important for special uses like cryogenic service. Finding washers that meet these standards can be tricky.
Tips for compatibility:
Match the washer’s inner diameter to the bolt’s shank size. This stops wobbling.
Compare the washer’s outer diameter to the bolt head or nut. This spreads weight evenly.
Check the washer’s thickness. It should protect surfaces without blocking threads.
Pro Tip: For critical projects like construction or aerospace, check washer specs against standards. This ensures safety and reliability.
Before you measure a washer, make sure it’s clean and ready. Dirt, grease, or residue can mess up your measurements. Take a moment to wipe the washer with a clean cloth. If there’s any stubborn grime, use a mild cleaner and rinse it off. Dry the washer completely to avoid slipping or inaccurate readings.
Regular cleaning doesn’t just help with measurements—it also keeps the washer in good shape. Removing dirt and moisture prevents rust and extends its lifespan. Think of it as giving your washer a little TLC before putting it to work.
Pro Tip: Clean the washer’s edges and inner hole carefully. Even a tiny speck of dirt can throw off your measurement.
Measuring once is good, but measuring twice is better. After you take your first reading, check it again to confirm. Use the same tool or switch to another one, like going from a ruler to calipers. This helps catch any mistakes and ensures you’ve got the right numbers.
Double-checking is especially important when you’re working with a specific flat washer size. A small error can lead to a washer that doesn’t fit or perform as expected. Taking a few extra seconds to verify your measurements can save you a lot of trouble later.
Quick Tip: Write down your measurements as you go. It’s easy to forget numbers, especially if you’re measuring multiple washers.
Mistakes happen, but you can avoid most of them with a little care. One common error is using the wrong tool. For example, a ruler might not give you the precision you need for small washers. Always choose the right tool for the job.
Another mistake is measuring at an angle. Keep your tool straight and level to get an accurate reading. Also, don’t rush. Taking your time ensures you won’t overlook anything.
Finally, remember to check the washer’s condition. A bent or damaged washer won’t give you reliable measurements. Replace it if needed before you start.
Reminder: Practice makes perfect. The more you measure, the better you’ll get at avoiding errors.
Picking the right washer size spreads force evenly on surfaces. A good fit stops fasteners from damaging materials. This keeps connections stable and prevents wear. Flat washers and fasteners share weight, especially in machines or buildings.
Washers are made for different jobs. For example:
Round washers work well for everyday tasks.
Square washers add support to wooden structures.
Special washers handle heavy loads or tough conditions.
The washer’s material is important too. Metal washers are strong, while non-metal ones resist rust. Think about weight, vibrations, and weather when choosing a washer.
Aspect | Description |
|---|---|
Functionality | Spreads force over surfaces, protecting them and keeping connections stable. |
Types | Includes round, square, and special washers for different needs. |
Materials | Made from metals or non-metals, offering strength or rust resistance. |
Applications | Used in machines, cars, buildings, plumbing, woodwork, and DIY projects. |
A washer that’s too small can harm the surface it protects. Tightening bolts or screws can leave marks or cracks. Flat washers stop this by acting as a shield between fasteners and surfaces.
For example, in plumbing or woodwork, washers prevent scratches or dents. They also reduce damage over time, keeping projects neat and lasting longer.
Tip: Match the washer’s size and thickness to your material. This gives better protection and durability.
The right washer size helps fasteners stay secure. A washer that’s too small won’t hold well. One that’s too big won’t spread weight properly. Flat washers work best when sized correctly.
Research shows washer size affects bolted joints, especially in mixed materials. Small washers can make joints stiffer under the same tightening force. A well-sized washer keeps fasteners stable and lowers failure risks.
Whether it’s a DIY task or big construction, the right washer size keeps things steady. It also stops loosening caused by vibrations or movement.
Measuring a flat washer’s inner diameter, outer diameter, and thickness is important. It ensures everything fits and works as it should. Accurate measurements stop problems like loose bolts or uneven weight spread. Even small size mistakes can cause big issues in industries like manufacturing.
Quick Reminder: Use tools like calipers or micrometers for exact results. Always double-check to avoid mistakes.
Proper measurement also ensures washers fit correctly. In construction, aerospace, and automotive work, precise washers fix problems like vibration, weight limits, and heat:
Industry | Problem | Solution |
|---|---|---|
Construction | Bolts loosen in steel structures from vibration. | Use lock washers or custom washers with exact sizes to hold tension. |
Aerospace | Lightweight washers need to be extremely precise. | Make washers from aerospace-grade aluminum to meet strict rules. |
Automotive | Fasteners face issues from high heat. | Use stainless steel washers that resist rust and stay secure. |
Get the right tools, follow the steps, and measure carefully. This saves time, avoids mistakes, and makes your project a success!
Calipers are the top choice for accurate measurements. They measure the hole size, outside size, and thickness precisely. If you don’t have calipers, rulers or micrometers can work too. However, they may not be as exact as calipers.
Match the washer’s hole size to the bolt’s shank. It should fit snugly, not too tight or loose. You can also use a size chart to compare washer and bolt sizes.
Thickness helps spread weight and protect surfaces. A thin washer might not handle heavy loads well. Use a micrometer to measure thickness and compare it to a chart for your project.
Yes, but you’ll need to convert between metric and imperial sizes. Use a size chart to find matching dimensions. Without checking, mixing systems can lead to mismatched parts, so always double-check first.
Common errors include using the wrong tool, measuring at an angle, or skipping a size chart. Clean the washer first, pick the right tool, and double-check your numbers. These steps help avoid errors and get accurate results.
