Author: Site Editor Publish Time: 2025-06-06 Origin: Site
Spring washers and flat washers are important in machines for better performance and safety. Spring washers spread out weight, absorb shocks, and stop parts from loosening. These washers are especially useful in cars and airplanes, where safety matters most. For example:
1. The market for conical spring washers was worth $780 million in 2023.
2. Experts think it will grow to $1,250 million by 2032, with a 5.2% yearly increase.
This growth shows that spring washers are used more for handling weight better. Knowing how spring washers differ from flat washers helps you pick the right one.
Spring washers have different designs for specific uses. Knowing these types helps you pick the right one for your project. Below are three common types of spring washers.
Belleville spring washers, also called coned-disc springs, are small but strong. They create a powerful spring force while saving space. These washers are great for spreading weight, reducing vibrations, and handling heat changes.
You’ll see Belleville washers in cars, planes, and big machines. For example:
● They keep bolts tight in engines, even with vibrations.
● They manage heat changes in hot places like turbines or exhausts.
Tip: Use Belleville washers for heavy loads and long-lasting strength. New designs make them stronger and more durable than before.
Wave spring washers have a wavy shape that lets them bend under pressure. They work well for flexible and medium load needs. There are two main types:
● Single Wave Washers: Good for light loads and big bending.
● Multiple Wave Washers: Handle heavier loads but bend less than single wave washers.
Wave washers are used in tight spaces, like electrical parts, and where steady pressure is needed. They absorb shocks and vibrations, making them useful for delicate tools.
Note: Pick wave washers for a mix of load strength and bending. They fit small spaces where regular washers won’t work.
Curved spring washers have a rounded shape that gives even spring force. They are best for light to medium loads and steady pressure needs.
These washers absorb small shocks and vibrations, making them good for fragile devices. For example, curved washers are used in small gadgets or electronics to keep parts stable and tight.
Did You Know? Curved washers are like wave washers but bend more smoothly. This helps when exact load control is important.
By learning about these spring washers, you can choose the best one for your needs. Each type has unique benefits for better performance and reliability in your projects.
Finger spring washers have small "fingers" or tabs around their edges. These fingers make the washer flexible and keep steady pressure on parts. They are great for stopping fasteners from loosening due to movement or shaking.
The fingers act like tiny springs, soaking up vibrations and keeping things tight. This makes them perfect for cars, electrical parts, and spinning machines. For example, they are used in gearboxes to keep bolts tight during constant motion.
Tip: Pick finger spring washers for assemblies with movement or shaking. Their design keeps fasteners secure and stable for a long time.
Dome spring washers, also called Clover®Dome washers, have a dome shape. This shape helps them absorb shocks and spread weight evenly. They press down under weight but bounce back to their original shape, making them great for active setups.
Here’s how dome spring washers compare to regular disc springs:
Property | Clover®Dome | Traditional Disc Springs |
Deflection | 2-3 times more than regular | Standard deflection |
Spring Rate | Lower than Belleville washers | Higher than Clover®Dome |
Recovery after compression | Returns to original height | May stay flattened |
This table shows dome washers work better for big movements and bouncing back. You’ll see them in planes, cars, and heavy machines where shocks and strength matter most.
Note: Use dome spring washers for setups needing strong shock absorption. They handle repeated pressing without losing their shape, making them reliable.
Crescent spring washers look like a crescent moon and give medium spring force. Their curved shape spreads weight evenly and keeps tension steady. They work well for light to medium loads.
You’ll find crescent washers in electronics, small tools, and light machines. They stop parts from loosening due to shaking or heat changes. For example, they are used in circuit boards to hold parts firmly in place.
Did You Know? Crescent spring washers are an affordable choice for setups needing medium load spreading and vibration control.
By learning about these spring washers, you can choose the best one for your project. Each type has special features to fit different needs, giving you better results and reliability.

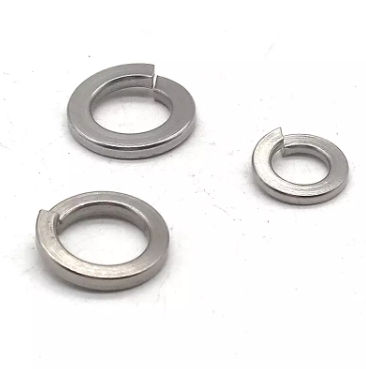

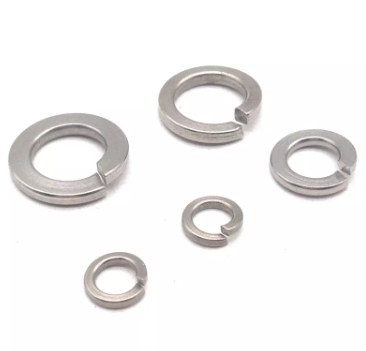

Helical spring washers, or split lock washers, stop fasteners from loosening. Their split and twisted shape creates tension when pressed. This tension keeps bolts and screws tightly in place.
● Anti-Loosening Properties: The split shape holds fasteners firmly, stopping them from loosening.
● Compact Design: These washers fit well in small, tight spaces.
● Versatility: They are used in cars, planes, and building projects.
Helical spring washers are great for setups with vibrations or spinning parts. For example, they are used in engines, gearboxes, and moving machines.
Tip: Use helical spring washers to resist vibrations. Their simple design works well without taking up much space.
Double coil spring washers spread weight and absorb shocks better than single coils. They have two stacked coils, making them stronger and more flexible. This design is perfect for heavy-duty jobs.
1. Increased Load Capacity: Two coils handle heavy loads without bending.
2. Improved Shock Absorption: They protect parts by soaking up impacts.
3. Durability: These washers last long and resist damage.
You’ll see double coil spring washers in mining, construction, and big machines. They are used where bolts face high pressure or repeated hits.
Note: Pick double coil spring washers for tough jobs. Their strong design keeps things stable under hard conditions.
Toothed lock washers have small teeth around their edges. These teeth dig into surfaces, holding fasteners tightly. This stops bolts and screws from loosening, even with lots of shaking.
● Enhanced Grip: The teeth add friction, keeping fasteners secure.
● Anti-Rotation: They stop bolts from turning, keeping them steady.
● Wide Compatibility: They work with metal, plastic, and other materials.
Toothed lock washers are often used in electronics, cars, and machines. For example, they keep screws tight in circuit boards during vibrations.
Did You Know? Toothed lock washers come in two types: internal and external teeth. Internal teeth grip the fastener, while external teeth grip the surface. Choose the one that fits your needs.
Knowing load and deflection is key when picking a spring washer. These decide how well the washer works under pressure and if it can handle the forces in your setup.
Spring washers are made to take certain loads while bending to absorb shocks or vibrations. If a washer bends too much, it might not hold parts tightly. But if it bends too little, it could break.
Here’s how load and deflection affect your choice:
● Studies show that the outer-to-inner diameter ratio and height-to-thickness ratio impact stress and bending. These ratios help predict how a washer reacts to forces.
● Belleville washers can handle high forces with little bending. Thicker washers are stiffer but might break under heavy loads.
● Adding soft material to washer surfaces can stop breaks and make them last longer.
Tip: Always think about the load and bending needs of your setup. Pick a washer that balances stiffness and flexibility to avoid problems.
The material of a spring washer affects how strong and durable it is. Different materials have different strengths, rust resistance, and flexibility.
Common washer materials include steel, stainless steel, brass, and plastic. Steel is strong and cheap, great for heavy jobs. Stainless steel resists rust, good for wet places. Brass is softer, ideal for delicate setups. Plastic is light and doesn’t conduct electricity.
Think about what your washer will face. Will it deal with water, chemicals, or heat? For example, stainless steel is great outdoors, while brass works well in electrical setups.
Note: Match the washer material to your setup’s environment and load needs. This ensures it lasts longer and works better.
The size of a spring washer affects how well it fits and works. Picking the wrong size can cause uneven loads or loose parts.
Spring washers are measured using specific methods to ensure they fit right. Key measurements include:
Measurement Method | What It Measures |
Outer Diameter | D |
Hole Diameter | d |
Outer Height | OH |
Thickness | t |
Each measurement matters. For example, the outer diameter shows how much area the washer covers. Thickness affects how stiff it is and how much load it can take.
Tip: Measure your setup carefully and pick a washer with the right size. Correct sizing avoids loose parts or uneven loads.
By focusing on load, material, and size, you can pick the best spring washer for your setup.
The environment affects how well spring washers work and last. When picking a spring washer, think about where it will be used. Things like heat, moisture, shaking, and chemicals can change how the washer performs over time.
Spring washers often deal with very hot or cold conditions. High heat can weaken some materials, while freezing can make them crack. For example, in airplane engines, washers handle temperatures from -54°C to 300°C. Even in these conditions, they keep bolts tight and stop loosening. This makes heat resistance important for washers in extreme environments.
Tip: Choose stainless steel or heat-treated washers for high heat. These materials stay strong and don’t bend under heat stress.
Shaking and shocks can loosen bolts over time. Spring washers absorb these forces and keep fasteners tight. In car engines, washers handle vibrations up to 2000 Hz, keeping parts in place. In suspensions, they absorb road bumps, making rides smoother.
Did You Know? Washers with curved or wavy shapes are great at stopping vibrations. Their design helps them flex and hold tension.
Water or chemicals can damage washers, especially outdoors or in factories. Rust makes washers weaker and less effective. For wind turbines, washers face moisture but still keep bolts tight in blade systems. Using stainless steel or coated washers stops rust and makes them last longer.
In mining machines, washers handle very heavy loads, like 55,600 N. Weak washers can bend or break under such pressure. Double coil or Belleville washers work best here. They spread weight evenly and absorb shocks, keeping joints strong.
Temperature changes can make materials grow or shrink. This can loosen bolts if washers can’t adjust. In machine tools, washers handle temperature shifts from -40°C to 120°C. They keep parts aligned and accurate.
Application | Environmental Condition | Performance Effect |
Aircraft Engine Mounts | -54°C to 300°C, high-altitude vibrations | Keeps bolts tight in extreme conditions |
Mining Machinery (Crusher Units) | Loads up to 55,600 N | Handles heavy loads without breaking |
Wind Turbines | Long-term use in blade pitch mechanisms | Maintains torque and allows movement |
Automotive Engine Valve Parts | High-frequency vibrations up to 2000 Hz | Holds preload under constant vibration |
Suspension Systems | Road shocks | Improves ride comfort |
Machine Tools (Spindle Configurations) | -40°C to 120°C | Adjusts to temperature changes for accuracy |
By knowing the environment your washer will face, you can pick the right type and material. This helps it work better and last longer.
Note: Always check manufacturer advice to match washers with your needs. This prevents early failure and saves money on repairs.
Spring washers and flat washers do different jobs in machines. Flat washers are flat discs that spread out force and protect surfaces. They stop materials from getting damaged by spreading the fastener's pressure. Spring washers, however, have a curved or helical shape. This design helps them keep tension and absorb vibrations. They are great for setups with movement or shocks.
Here’s a simple comparison:
Feature | Flat Washer | Spring Washer |
Design | Flat and smooth | Curved or helical for spring effect |
Function | Spreads load, protects surfaces | Keeps tension, absorbs vibrations |
Applications | Static setups | Moving or vibration-heavy setups |
Primary Advantage | Protects materials, prevents damage | Holds tension, handles shocks |
Flat washers work best in still setups, while spring washers are better for moving parts.
Use spring washers when keeping tension is very important. They are great for places with lots of shaking, like car suspensions or big machines. For example, Belleville washers stop fasteners from loosening in hydraulic systems. In construction, they keep bolts tight in concrete or steel structures. Their ability to handle shocks and stay tight makes them perfect for heavy-duty jobs.
Tip: Pick spring washers for setups with movement, shaking, or heavy loads.
Flat washers are good for setups that don’t move much. They spread out force and protect surfaces. You’ll see them in furniture or appliances where fasteners need a solid base. Flat washers also stop softer materials like wood or plastic from getting damaged. If your setup doesn’t shake or move, flat washers are a simple and cheap choice.
Note: Use flat washers when you need to protect surfaces and spread force evenly.
Using spring washers and flat washers together makes machines work better. Each washer has a special job, and combining them uses their strengths.
Flat washers spread weight evenly and protect surfaces from damage. They keep fasteners steady and prevent harm to softer materials. Spring washers, however, hold tension and stop vibrations, keeping fasteners tight in moving setups. Together, they provide both stability and anti-loosening benefits.
For example, in cars, a flat washer protects the engine block’s surface. Adding a spring washer keeps bolts tight despite constant shaking. In construction, this combo secures bolts in steel frames, offering both strength and tension.
To use them correctly, place the flat washer against the surface first. Then, put the spring washer between the flat washer and the fastener. This way, the flat washer protects the surface, and the spring washer handles movement and pressure.
Tip: Always check if the sizes and materials of both washers match. For instance, stainless steel washers resist rust, making them great for wet or outdoor areas.
By combining these washers, you make your setups stronger and longer-lasting. This method works well for heavy loads, shaking, or tough environments.
When picking a spring washer, check manufacturer advice and industry rules. These give important details about materials, load limits, and how to install them. For example, the ASME B18.22M standard lists washer specifications to help you choose correctly. Manufacturers also suggest torque values to avoid tightening too much or too little, which can cause problems.
Think about material types and treatments too. Low-carbon steel washers work for general tasks, while stainless steel resists rust better. Groups like SAE and ASTM set standards for strength and stress, helping you pick the right washer for your job.
Tip: Check washers for cracks or rust before using them. This keeps them safe and reliable.
Knowing load capacity is key for washers to work well. One way to calculate this is by using the Belleville Washer Equation. It looks at material, thickness, and size. Many manufacturers also share load data, making it easier to choose.
For example, Belleville washers handle heavy loads with little bending. But if they bend too much, they can break. Always make sure the washer’s load limit fits your setup’s needs.
Note: Using two washers together can improve vibration control and preload in tough setups.
Each job needs specific washers. In cars, washers must handle constant shaking. In airplanes, they need to resist big temperature changes. For heavy machines, double coil washers absorb shocks and spread weight well.
Think about the environment too. For wet or chemical-heavy places, use stainless steel or coated washers. Size matters as well. Make sure the washer fits the fastener to avoid loose parts or uneven pressure.
Did You Know? Using spring washers with flat washers improves performance. They add tension and protect surfaces at the same time.
Picking the right spring washer starts with choosing a trusted maker. Good manufacturers provide high-quality products that meet industry rules. This ensures the washers work well, even in tough conditions.
Top-quality spring washers, like Belleville washers, perform better than regular ones. Studies show assemblies using these washers are 20% more stable than those with flat washers. Tests also found that Belleville washers cut maintenance issues by 15% over three years. This proves how important it is to buy from reliable sources.
Trusted manufacturers also give expert advice for your needs. They help you pick the right washer material, size, and type. This makes sure the washer fits and handles challenges like shaking, rust, or heat.
Here’s why working with trusted manufacturers matters:
Evidence Type | Description |
Case Study | Assemblies with Belleville Washers are 20% more stable. |
Performance Test | Belleville washers reduced maintenance by 15% in three years. |
Expert Recommendation | Reliable Belleville Washers are known for lasting performance. |
By working with trusted manufacturers, you get better products and advice. This helps avoid failures and keeps machines running longer. Whether using spring washers or flat washers, always choose quality for the best results.
Tip: Pick manufacturers with ISO 9001 or ASME certifications. These show they focus on quality and reliability.
Picking the right spring washer is important for keeping machines safe and working well. Choose a washer that fits your load, material, size, and environment needs. This helps avoid problems and makes your equipment last longer.
Using the correct washer has many benefits:
Benefit | What It Does |
Spreads Weight | Shares weight evenly to protect parts from damage. |
Lasts Longer | Reduces wear, so machines need fewer repairs and work longer. |
Stays Secure | Keeps fasteners tight in shaky setups, stopping them from coming loose. |
Always follow advice from trusted makers and stick to industry rules. This ensures your machines work well and stay reliable for a long time.
Spring washers keep bolts tight by stopping vibrations and holding tension. They also spread weight evenly to protect surfaces from harm. Use them where movement or shaking might loosen screws or bolts.
Yes, you can use spring washers outdoors. Pick ones made of Stainless Steel . These types resist rust and last longer in wet or tough conditions.
Check the bolt size and how much weight it will hold. Match these to the washer's size and strength. Make sure the washer fits well—not too loose or tight.
You can reuse spring washers if they are still in good shape. Look for cracks, rust, or bending before using them again. Replace damaged washers to keep things working safely.
Yes, using both together works well. Put the flat washer on the surface to spread weight and protect it. Then, add the spring washer to hold tension and stop vibrations.
