Author: Site Editor Publish Time: 2025-06-10 Origin: Site
Washers in fastening applications are crucial for creating strong and safe connections. They distribute the bolt's pressure, prevent surface damage, and stop loosening over time. Washers in fastening applications are particularly beneficial with soft materials or in situations where vibrations could lead to issues. However, it's important to note that you don’t always need a washer. In some cases, using one can actually weaken the connection or make it more difficult to manage. Understanding the role of washers in fastening applications helps you make informed choices every time.
Washers are thin, round parts used to improve fastening systems. They help spread the pressure from bolts or screws over a larger area. This stops damage to the material being fastened. Washers also have other uses, like stopping corrosion between different metals, reducing vibrations, and sealing against water leaks. For example, rubber or plastic washers are often used in plumbing to block water from leaking.
Standards like ASME B18.22M and ADS AGS970 explain how washers should be used. Knowing why washers are important helps you pick the right one for your project. This makes your connections stronger and longer-lasting.

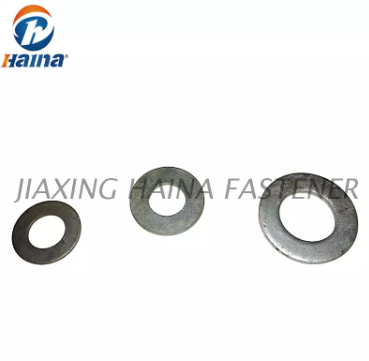

Flat washers are very common and easy to use. These round, flat pieces spread the pressure of a fastener evenly on a surface. This stops stress that could harm soft or thin materials like wood or plastic. Flat washers also keep surfaces safe from scratches caused by tightening bolts or nuts.
Flat washers are used in many industries, such as construction and car-making. For example, plain washers, a type of flat washer, work well for general tasks where spreading pressure is important. Their simple design makes them useful in many fastening jobs.
Lock washers are special parts that stop bolts or nuts from loosening. They do this by creating tension, which adds friction between the fastener and the surface. This extra grip keeps the fastener tight even when there’s vibration.
Split lock washers are popular for high-vibration places like cars and airplanes. They not only hold fasteners securely but also absorb shocks and spread force to protect materials. New designs and materials have made lock washers even better, making them essential for safety and reliability in tough conditions.
Aspect | Details |
|---|---|
Industries | Used in cars and airplanes |
Importance | Stops vibrations and improves safety |
Advancements | Better materials and designs improve how they work |
Key Features | Split lock washers are affordable; star lock washers are great for vibration and load support |
Lock washers are a smart choice for keeping fasteners secure in tough situations.
Spring washers keep bolts tight by acting like small springs. They stop bolts from loosening due to vibrations or heat changes. These washers work well in places where bolts might loosen over time.
Unlike flat washers, spring washers push against the bolt and surface. This extra pressure keeps bolts secure, making them great for machines or vehicles. Split lock washers, a type of spring washer, are very useful in shaky environments. Their split shape adds friction, keeping bolts tight.
Research shows galvanized spring washers work better than flat ones. A study found they hold bolts tighter and fill gaps caused by vibrations.
Key Insights | Details |
|---|---|
Performance Benefits | Spring washers tighten better than flat washers. |
Preload Strength | Galvanized spring washers hold bolts steady during vibrations. |
Anti-Loosening Ability | Zinc-coated spring washers grip better due to extra friction. |
Belleville washers, also called cone washers, handle heavy loads in tight spots. Their cone shape spreads force evenly and stores energy. These washers are used in jobs needing precise load control, like electrical work or big machines.
You can stack Belleville washers in different ways to change how they work. For example, stacking them side-by-side increases load strength. Stacking them in a row makes them bend more.
Stack Type | Load Strength | Bending Ability |
|---|---|---|
Side-by-Side Stack | Adds up; six washers hold more weight | Same as one washer's bending limit |
Row Stack | Same as one washer's weight | Adds up with more washers' bending ability |
Mixed Stack | Custom load and bending options | Changes based on design |
This stacking ability makes Belleville washers a smart pick for engineers working in small spaces.
Wave washers are made to reduce shaking and absorb shocks. Their wavy shape lets them squeeze and stretch under pressure. This makes them perfect for places with movement or vibrations.
Wave washers are often used in electronics to protect fragile parts from damage. They also keep pressure steady in assemblies, helping them last longer.
Tests on stacked Belleville washers, similar to wave washers, show they work well under heavy use. These washers stayed strong even with lots of pressure and movement.
Wave washers are a great choice when you need both flexibility and strength in your fastening system.
Insulating washers are used to block electricity between fasteners and materials. These washers are made from non-conductive materials like nylon, rubber, or Teflon. They act as shields, stopping electricity and keeping components safe.
You can use insulating washers in electrical devices, circuit boards, or anywhere metal fasteners might cause electrical problems. For example, on a circuit board, these washers stop short circuits by keeping bolts away from conductive parts.
Tip: Pick insulating washers that fit your project’s size and material needs. This ensures they work well in your specific conditions.
Insulating washers also help stop corrosion between different metals. By separating metals, they prevent galvanic corrosion, which can weaken connections over time.
Liquid-sealing washers are made to block water and other liquids. These washers, often made of rubber or silicone, squeeze tightly when fastened. This creates a seal that stops leaks from water, oil, or other fluids.
You’ll see liquid-sealing washers in plumbing, cars, and boats. For example, they are used in faucets and pipes to stop leaks. Their strong seal makes them perfect for places needing moisture protection.
When choosing liquid-sealing washers, think about the liquids they’ll face. Some washers resist certain chemicals, while others handle high heat better.
Note: Check liquid-sealing washers often for damage. Replacing worn washers can stop leaks and avoid expensive repairs.
Square washers are different because of their flat, square shape. Unlike round washers, square ones have more surface area. This spreads the load better and stops bolts from pulling through materials.
You might use square washers in building, woodworking, or heavy machines. For example, they’re great for timber structures to stop bolts from sinking into the wood. Their flat edges also make them easy to fit in tight spots.
Square washers are helpful with soft materials or when extra strength is needed. Their design keeps fasteners secure, even under heavy weight.
Washers like square washers make fastening systems stronger and more reliable. Picking the right washer can improve how well your project works.
Washers are important for protecting soft or thin materials. Tightening a bolt without a washer can damage the material. The bolt might sink in, causing dents or even breaking it. Washers spread the pressure over a larger area, keeping the material safe.
For example, when working with wood, plastic, or thin metal, flat washers help. They stop the material from getting damaged. This is especially useful for furniture or lightweight structures. These projects need strong materials to last longer.
Tip: Pick a washer that fits your bolt size. A small washer won’t spread pressure well. A large washer might not fit correctly.
Spring washers can also help in these cases. They act like springs, keeping bolts tight and steady. Studies show spring washers reduce bolt loosening by 30%. This makes them great for protecting soft materials in moving environments.
Washers help spread the load when bolts are tightened. Without a washer, the force focuses on a small spot. This can weaken the material or cause it to break. Washers spread the force across a bigger area, making the joint stronger.
Washers are very helpful with weaker materials like aluminum or plastic. They stop bolts from bending or damaging the material. Industry data shows washers reduce stress and protect materials during use.
Function | Description |
|---|---|
Load Distribution | Spreads the fastener’s load over a larger area, reducing stress on the material. |
Surface Protection | Prevents scratches, marring, or deformation caused by tightening. |
Loosening Prevention | Adds tension to the fastener, reducing the risk of loosening. |
Washers also help with uneven surfaces or gaps. They fill these spaces, spreading the load evenly. This makes the joint stronger and more reliable.
Washers protect surfaces from damage when bolts are tightened. Without a washer, the bolt head or nut can scratch or dent the surface. This is a problem for projects where looks matter, like furniture or visible metal parts.
Flat washers act as a shield between the bolt and the material. They stop direct contact, preventing scratches or dents. For example, in cars or airplanes, washers protect painted or coated surfaces.
Note: Use soft washers like nylon or rubber for delicate finishes. These washers add extra cushioning and stop scratches.
Washers also keep your project looking good and working well. A good washer choice ensures bolts don’t harm the material, even under heavy use.
Washers help reduce shock and vibration in fastening systems. Vibrations can loosen bolts over time in moving environments. Shock-absorbing washers act like cushions, protecting the joint from damage. They absorb energy and keep the connection strong.
Some washers, like Sorbothane washers, are great for this purpose. Sorbothane is a special material that absorbs energy well. It handles shocks and vibrations while staying durable. These washers return to their original shape after being pressed. They can also be made in different sizes and shapes for specific needs. This makes them useful for machines or electronics where vibration control is important.
Tip: Use shock-absorbing washers in cars or industrial machines. They reduce wear and help parts last longer.
Not all surfaces are flat when fastening bolts. Uneven surfaces or gaps can make connections weak. Washers fill these gaps and spread the load evenly. This stops stress from building up in one spot and makes the joint stronger.
Spring washers work well for uneven surfaces. Their spring-like shape adjusts to small surface changes. This keeps bolts tight even if the surfaces don’t match perfectly. Spring washers are great for construction or heavy machines where alignment isn’t exact.
Uneven surfaces can weaken bolts over time. The right washer keeps the connection secure in tough conditions.
Materials expand or shrink with temperature changes. This can loosen bolts and weaken fastening systems. Washers help by keeping bolts tight during these shifts. They act as buffers, absorbing stress caused by heat or cold.
Belleville washers are ideal for handling thermal expansion. Their cone shape stores energy and adjusts to size changes. This makes them perfect for places with extreme temperatures, like power plants or airplanes.
Note: Pick washers that handle your application’s temperature range. Choose materials that stay effective in hot or cold conditions.
When two different metals touch, they can cause galvanic corrosion. This happens when moisture or salt speeds up a reaction. Over time, this weakens the metals. Washers help stop this problem by acting as barriers.
Insulating washers, made from materials like nylon or rubber, block contact. They stop the reaction by keeping metals apart. For example, if you join aluminum and steel, use an insulating washer. This protects both metals and makes your project last longer.
Tip: Check the metals you’re using. If they might corrode, add insulating washers to keep them safe.
This is especially important outdoors or near water. Moisture makes corrosion worse. Adding a washer keeps fasteners strong and reliable.
Washers can also block leaks in places with liquids. Liquid-sealing washers, made of rubber or silicone, squeeze tightly. This creates a seal that stops water, oil, or other fluids from escaping.
You’ll see these washers in plumbing, cars, and boats. For example, they stop leaks in faucets or pipe joints. In cars, they keep oil or coolant from leaking out of systems.
Note: Pick washers that match the liquid they’ll face. Some resist chemicals better, while others handle heat well.
Check these washers often for damage. Replace them when needed to avoid leaks and costly repairs.
In electrical systems, washers stop electricity from causing problems. Insulating washers, made from Teflon or nylon, block electricity between fasteners and surfaces.
For example, use insulating washers when attaching a circuit board. They keep screws from touching sensitive parts, preventing short circuits. These washers are also used in appliances to protect fasteners from live wires.
Tip: Choose washers that fit your project’s size and voltage needs. This improves safety and performance.
Insulating washers also reduce corrosion caused by electricity. By separating metals, they prevent galvanic corrosion and keep systems safe.
Washers help keep bolts tight by controlling preload. Preload is the tension applied to a bolt when tightened. This tension keeps the joint secure against outside forces. Without good preload control, bolts can loosen and cause joint failure. Washers spread the load evenly and reduce stress at contact points.
Washers sit between the bolt and the material. They stop direct pressure that can cause uneven force. By spreading the load, washers prevent damage or bending in the material. This helps bolts stay tight over time.
Some washers, like Belleville washers, are made to improve preload control. Their cone shape stores energy and adjusts to changes in tension. This makes them great for heavy machines or airplane parts where precise load control is needed.
Tests show washers improve how bolts handle outside forces. Researchers use calculations and experiments to study their effects on preload control. Results show washers prevent overstress and keep joints strong.
Aspect | Description |
|---|---|
Analysis Focus | How plain washers help bolted joints |
Key Findings | Reduce stress at contact points; improve bolt performance |
Methodology | Experiments and calculations to measure load effects |
Importance | Prevent damage and keep preload consistent |
These studies show washers are important for keeping bolts tight and joints reliable.
Picking the right washer is key to good preload control. Flat washers work for everyday use. Belleville washers are better for heavy loads. Spring washers add extra tension to stop bolts from loosening under vibration.
Tip: Match the washer material to the bolt and surface. For example, use stainless steel washers with stainless steel bolts to avoid rust or wear.
Using washers improves bolt reliability and makes joints last longer. Good preload control ensures your fastening system works well, even in tough conditions.
Washers aren’t always needed, especially with fasteners that have wide heads. These fasteners, like flange bolts, spread pressure well on their own. Adding a washer can create extra friction, which might weaken the connection.
Studies on timber joints show washers can lower stiffness. The friction between the washer and surface can cause uneven tension. This makes the connection less reliable instead of stronger.
If your fastener has a wide head or flange, skip the washer. The fastener itself spreads pressure and protects surfaces effectively.
Washers may not help when materials are tough and uniform. For example, steel-on-steel connections don’t need washers because steel resists damage. Bolts can tighten directly without harming the surface.
Tests show washers sometimes wear out faster than strong materials. In these cases, washers don’t improve the connection and might even cause problems.
When working with durable materials, skip the washer. This keeps the assembly simple and avoids unnecessary issues.
Washers are useful for stopping loosening from vibration or protecting against moisture. But in still environments, like indoor structures, washers aren’t needed. Bolts in these setups won’t face forces that loosen them over time.
Adding a washer in these cases can make assembly harder without helping. Tighten the bolt properly instead to save time and effort.
Tip: Check the environment and stresses on your fastener. If there’s no vibration, corrosion, or heat changes, you don’t need a washer.
Knowing when washers aren’t needed helps simplify projects. This keeps your fastening system strong and efficient.
Washers might not fit in small spaces. Tight areas, like electronics or tiny machines, often lack room for washers. Adding a washer can make assembly hard or impossible. Bolts and nuts may be the only parts that fit. Washers can cause alignment problems or clearance issues.
Check the size of your fastening system before using washers. If space is tight, try self-locking bolts or thread-locking compounds. These options keep bolts secure without needing extra room for washers.
Tip: Measure the space carefully. If washers don’t fit, use other fastening methods to ensure reliability.
Self-locking bolts don’t need washers in many cases. These bolts have features like nylon inserts or serrated threads to stop loosening. They work well in places with vibration or movement, where washers might be needed.
Place bolts are a type of self-locking bolt. They grip tightly without extra parts. Use them in cars, planes, or factories where strong connections matter.
Self-locking bolts save time during assembly and lower mistakes. They also make maintenance easier since washers don’t need checking or replacing.
Note: Pick self-locking bolts that match your project’s material and load needs.
Washers can change how visible assemblies look. In furniture or decorative designs, washers might seem bulky or out of place. Bolts without washers give a cleaner, simpler look.
Focus on appearance when the fastening system is part of the design. For example, modern furniture often uses exposed bolts without washers for a sleek style.
If washers are needed for strength, use low-profile or decorative washers. These blend better with the design while still working well.
Tip: Balance looks and strength. Pick fastening parts that improve the design without losing reliability.
Knowing where to place washers is key for strong connections. Washers make fasteners work better and protect materials. Here’s how to use washers in different situations:
Putting a washer under the bolt head spreads the pressure evenly. This stops damage and keeps the bolt tight. For soft materials like wood or plastic, flat washers stop the bolt from sinking into the surface.
Situation | What to Do |
|---|---|
Protecting surface during tightening | Place the washer where the bolt touches the material. |
Thin material assembly | Use a bigger washer to spread pressure and avoid bending. |
Bolt screwing into threads | Add a washer to keep the load even. |
Washers here also lower friction, which reduces wear during tightening.
Washers under the nut protect surfaces and spread pressure evenly. This is helpful when nuts tighten against delicate or uneven surfaces.
Tip: Check the material’s type and thickness before placing washers. This ensures the washer works best for protection and stability.
Locking washers, like conical ones, stop bolts from loosening due to vibrations. Place them where movement or stress is highest. For example, in machines, locking washers under the nut add grip and keep bolts tight.
Under the Bolt Head: Spreads pressure and lowers friction.
Under the Nut: Protects surfaces and spreads pressure evenly.
With Locking Washers: Stops loosening caused by vibrations.
Follow these steps to place washers correctly for better performance.
Sometimes, washers aren’t needed. Options like self-locking bolts or thread-locking glue can do the same job without extra parts.
Self-locking bolts stay tight without washers. They have features like nylon inserts or special threads to stop loosening. These bolts work well in cars or planes where vibrations are common.
Example: Place bolts grip tightly and don’t need locking washers. This makes assembly easier and lowers maintenance.
Thread-locking glue creates a strong hold between bolts and threads. It stops loosening from vibrations or heat changes. This is useful in tight spaces where washers or self-locking bolts won’t fit.
Feature | Benefit |
|---|---|
Friction Reduction | Stops movement between threads to prevent loosening. |
Cost Savings | Cheaper than washers or self-locking bolts. |
Faster Assembly | Speeds up work by skipping extra parts. |
Self-locking bolts and thread-locking glue are great for jobs where washers aren’t practical.
Some jobs need special washers, like conical or wave washers. These washers are made for specific uses and should follow manufacturer instructions.
Manufacturers give detailed instructions for using special washers. Belleville washers handle heavy loads, while wave washers absorb shocks in electronics.
The FDA has rules for medical washers to ensure safety and quality. These rules cover labeling, design, and how they work with medical devices. Always check these guidelines to use washers correctly for your project.
By following these rules, you can pick the right washer and make your project successful.
Washers are important for making fastening systems stronger and safer. They spread pressure, protect surfaces, and stop bolts from loosening. Research shows washers improve joint strength when used correctly. Use washers to protect soft materials or reduce vibrations. Skip them if they don’t help, like with self-locking bolts or in calm settings. Knowing your project needs helps you pick the best option for secure connections.
Washers help most of the time, but not always. Bolts with wide heads or tough materials might not need them. Think about your project before using washers.
Self-locking bolts don’t need washers to stay tight. Their special design stops loosening on its own. They work great in places with lots of movement.
Spring washers are great for uneven surfaces. Their springy shape fills gaps and keeps bolts secure. Use them in building projects or machines.
Insulating washers keep different metals from touching. This stops the reaction that causes rust. They’re perfect for outdoor or wet areas.
Rubber or silicone washers seal tightly to block leaks. Use them in plumbing, cars, or boats to keep water out. Check them often to make sure they’re not worn out.
