CONCRETE SCREW: The Fastening Technology Revolution Replacing Traditional Expansion Anchors

1 Technical Limitations of Traditional Expansion Anchors

In construction installation, expansion bolts have long been fundamental solutions for fixing objects to concrete structures, yet their inherent flaws are increasingly evident in practical applications. Traditional expansion bolts operate through mechanical expansion: tightening the nut pulls the tapered bolt into the expansion sleeve, forcing the sleeve to expand and generate friction against the hole wall. This seemingly simple mechanism contains structural deficiencies:

• Complex Installation: Requires four precise steps: drilling, hole cleaning, sleeve insertion, and bolt tightening. Even 0.5mm drilling deviation can reduce holding power by 30%.

• Single-Use Limitation: Become permanent fixtures after installation. Removal requires dangerous cutting and leaves hazardous protrusions (contributing to 12% of trip accidents on construction sites).

• Vibration Vulnerability: Exhibit poor vibration resistance. Testing shows 40% reduction in anchoring force after 72 hours under 10Hz/1mm vibration.

• Substrate Constraints: Perform poorly in low-density concrete, hollow bricks, or thin walls. Pull-out resistance can drop below 20% of substrate strength in aerated concrete blocks.

Table: Performance of Traditional Expansion Anchors in Different Substrates

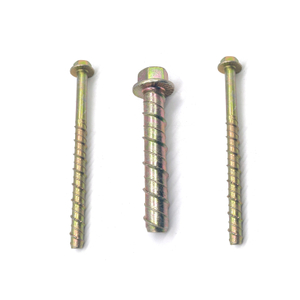

2 Revolutionary Advantages of CONCRETE SCREWS

CONCRETE SCREWS represent a disruptive technology addressing core limitations of expansion anchors through five breakthroughs:

2.1 Revolutionary Installation Efficiency

• Two-Step Process: Drilling → Direct screwing (2-3x faster than expansion anchors)

• Tolerance Compensation: Maintains 85% holding power even with 1mm hole deviation

• Non-Expansion Mechanism: Achieves fixation through mechanical interlock of threads

2.2 Removable & Reusable Design

• Non-Destructive Removal: Reverse rotation allows complete extraction

• Surface Hardening: Advanced coatings (nitriding/DLC) enable 5+ reuse cycles

2.3 Thin-Wall & Soft Substrate Adaptation

• Progressive Threading: Variable pitch/depth design enhances grip in weak substrates

• Micro-Expansion Tech: Front-end expansion mechanism increases diameter by 30%

2.4 Superior Vibration Resistance

• Full-Thread Engagement: Distributes stress evenly (<10% anchoring loss under vibration)

• Preload Maintenance: Elastic washer systems reduce maintenance needs by 70%

2.5 Flush Installation & Safety

• Countersunk Capability: Eliminates trip hazards

• Cold Installation: No welding/gas cutting required

3 Applications & Market Outlook

3.1 Construction Innovations

• HVAC/Piping/Railings: 65% faster adjustment in retail refits

• Prefab Construction: 75% lower rework costs for precast balconies

3.2 Specialized Scenarios

• Weak Substrates: 3kN pull-out resistance in 5MPa AAC panels

• Waterproof Engineering: 10-20x formwork efficiency in basements

3.3 Industrial Equipment Fixation

• Vibration Environments: Annual maintenance reduced from monthly to yearly

• Heavy Machinery: 100kN+ pull-out in C30 concrete with precision preload control

*Table: Economic Comparison (Annual 500,000-unit Project)*

Market penetration is accelerating globally (35% share in developed countries, >25% CAGR in China), driven by green construction trends. Emerging applications include PV mounting (40% efficiency gain), curtain walls, and urban renewal projects.

4 Development Trends & Challenges

4.1 Technical Optimization

• Smart Sensing: Embedded strain sensors for real-time monitoring

• Advanced Materials: Titanium alloys (marine use) and CFRP composites (EM-sensitive environments)

4.2 Standardization Barriers

• Lacking Standards: No unified global evaluation system (CEN developing EN 17340 by 2026)

• Industry Awareness: Only 35% of engineers specify screws despite 70% awareness

4.3 Cost & Competition

• Cost Sensitivity: Current price 2-3x higher (Chinese manufacturers targeting 40% cost reduction)

• Patent Landscape: Developing alternative mechanisms (e.g. bidirectional locking)

4.4 Sustainability Value

• Lifecycle Low-Carbon: 60% lower CO₂ when reused 3x

• Circular Economy: "Screw as a Service" models extending product life 3x

Conclusion

CONCRETE SCREWS overcome fundamental limitations of expansion anchors through self-tapping mechanisms and removable design, representing the future of construction fastening. Their core value lies in transforming connections from "permanent fixation" to "controllable joints" - aligning perfectly with circular construction principles. While cost control and standardization remain challenges, price parity is expected within three years. Early adoption provides competitive advantage in the green building transition, proving that this seemingly minor technical component can become a significant driver of industry transformation.
