HINA
HINA2024121601

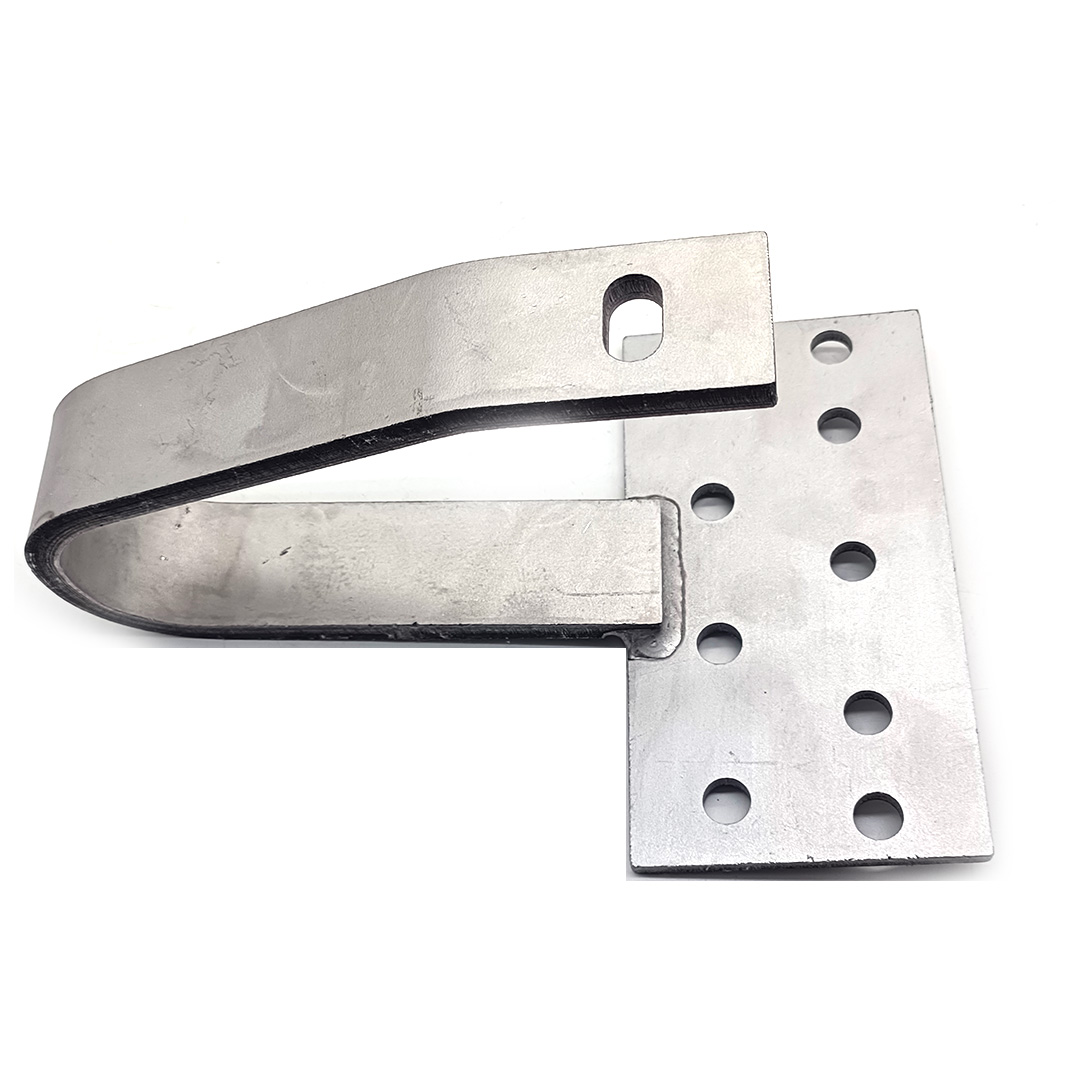

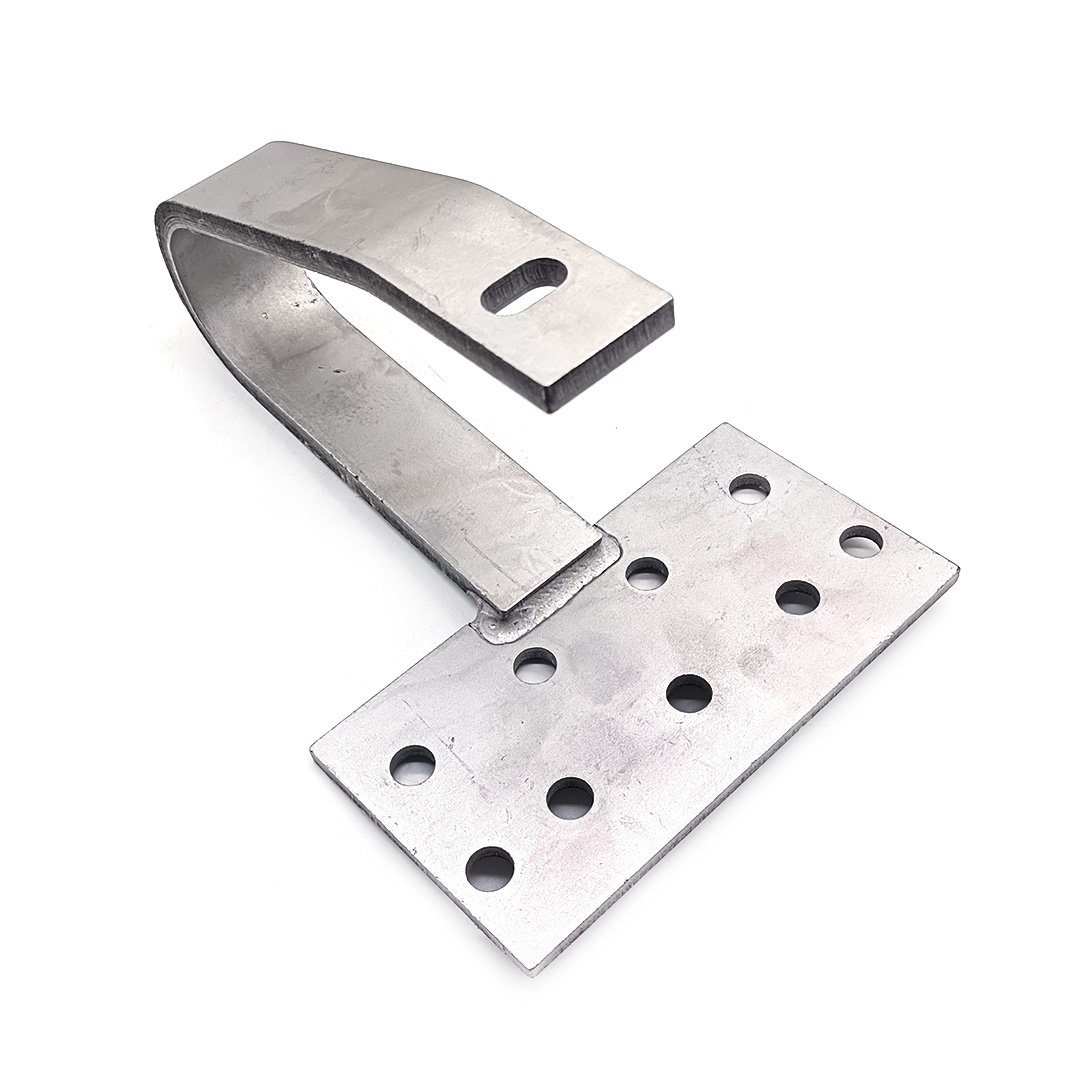

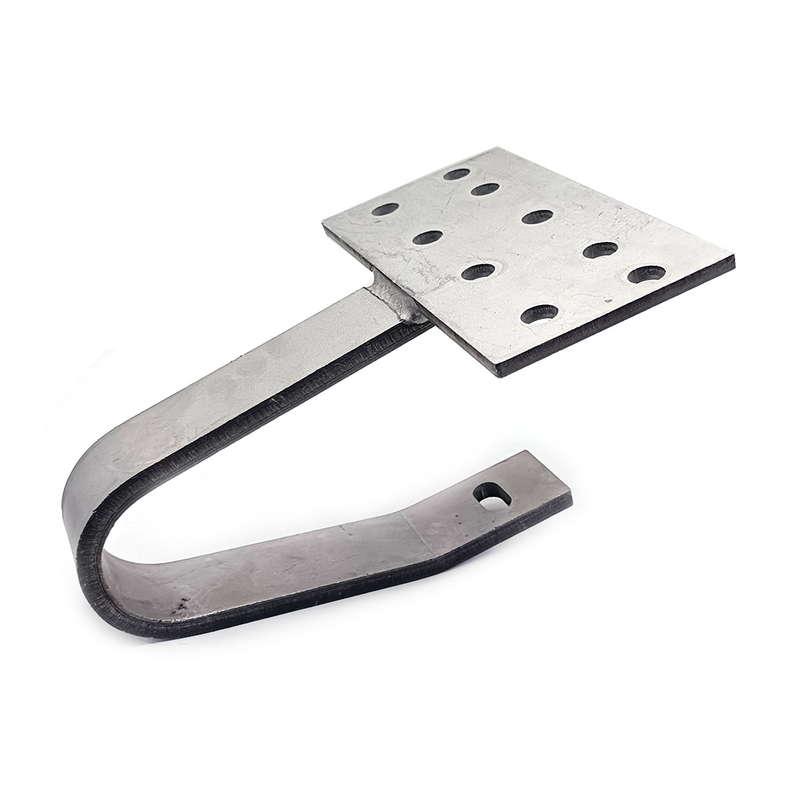

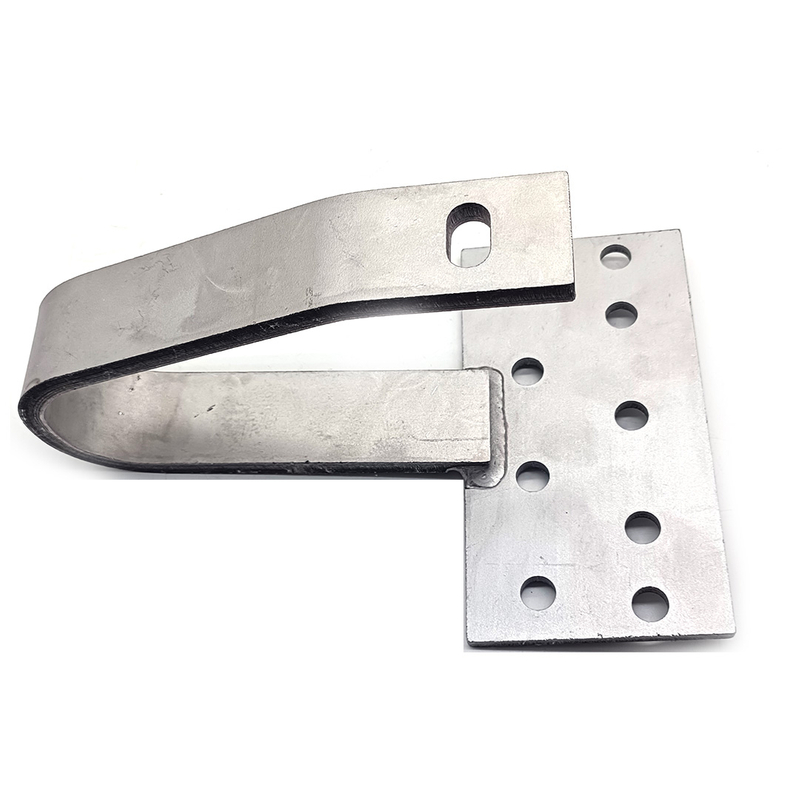

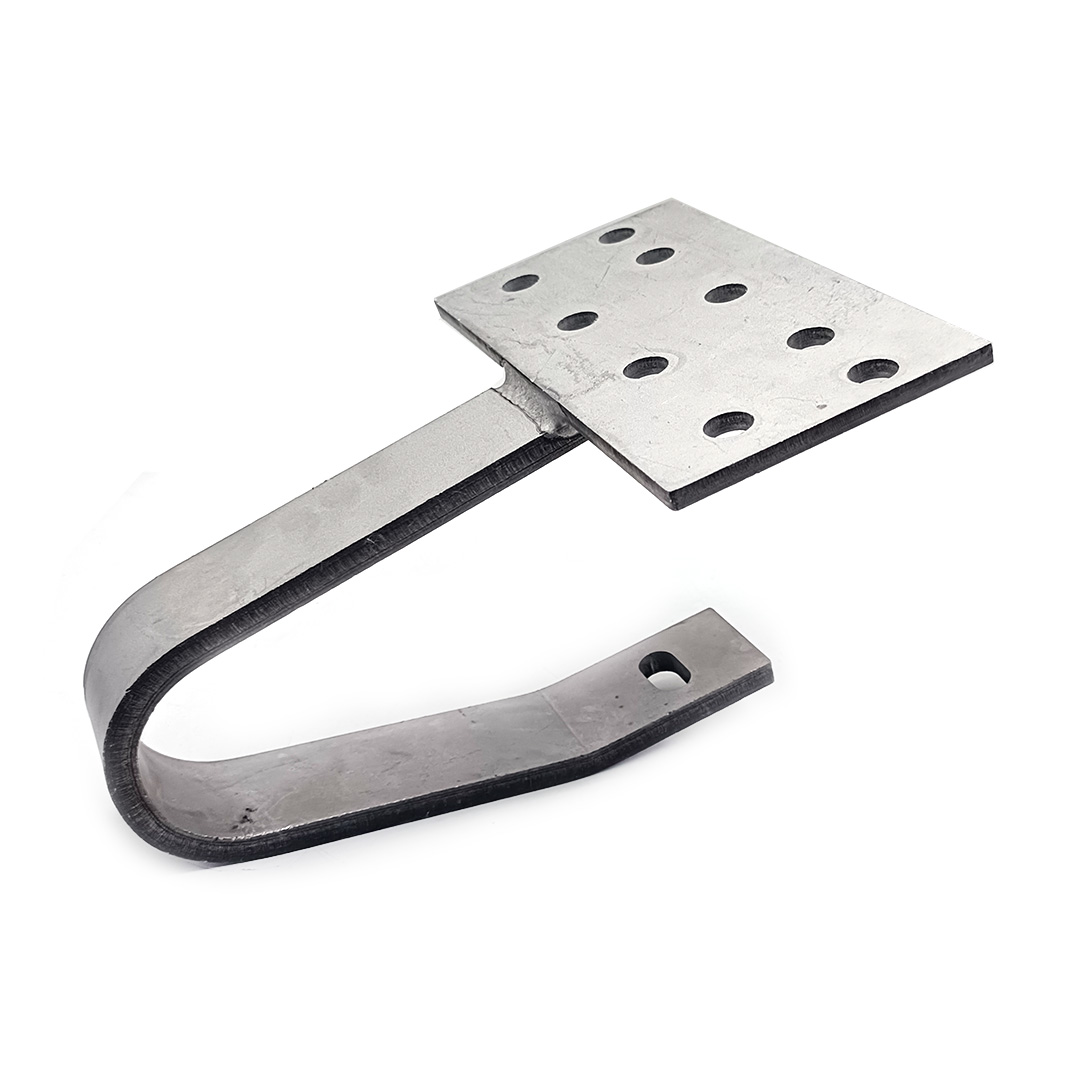

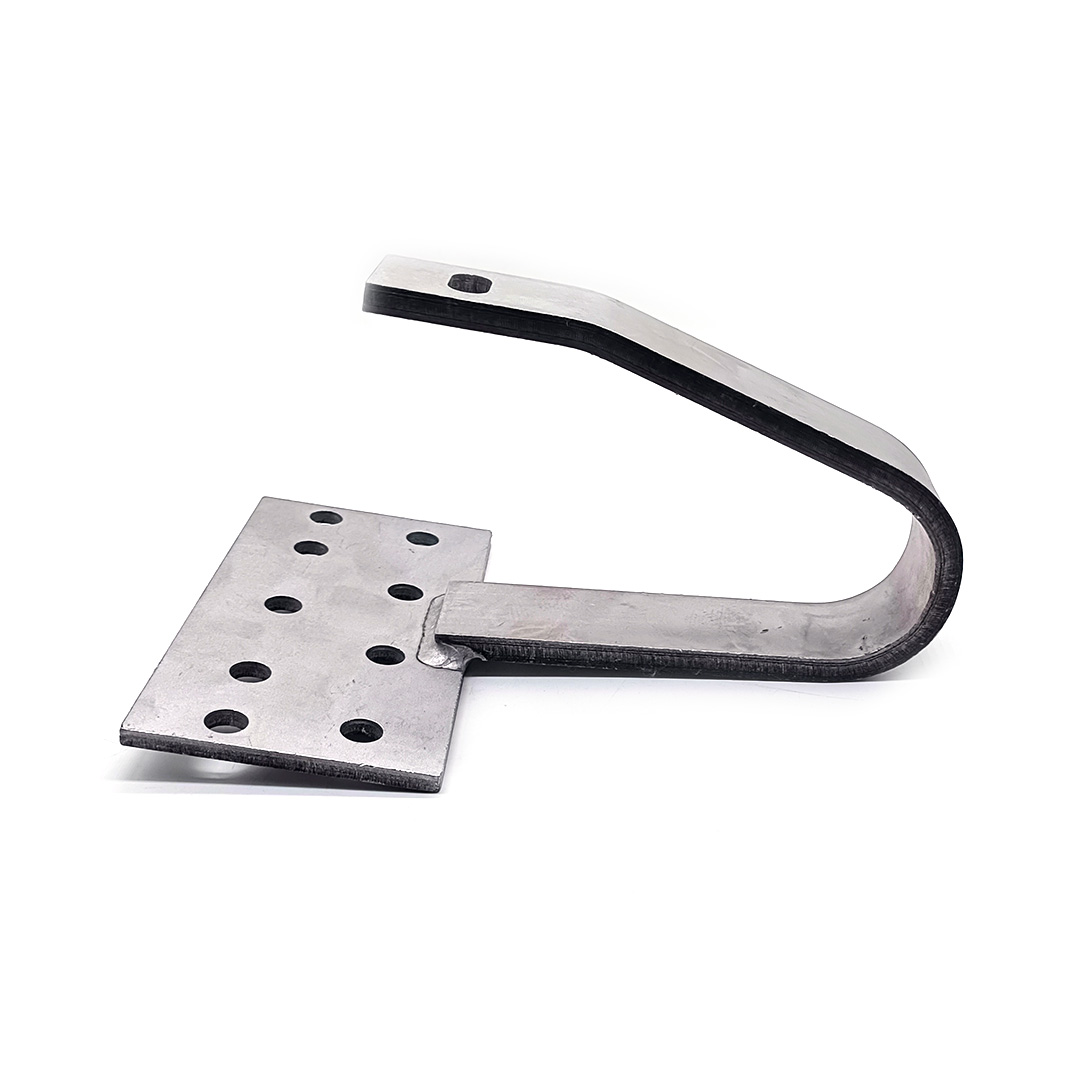

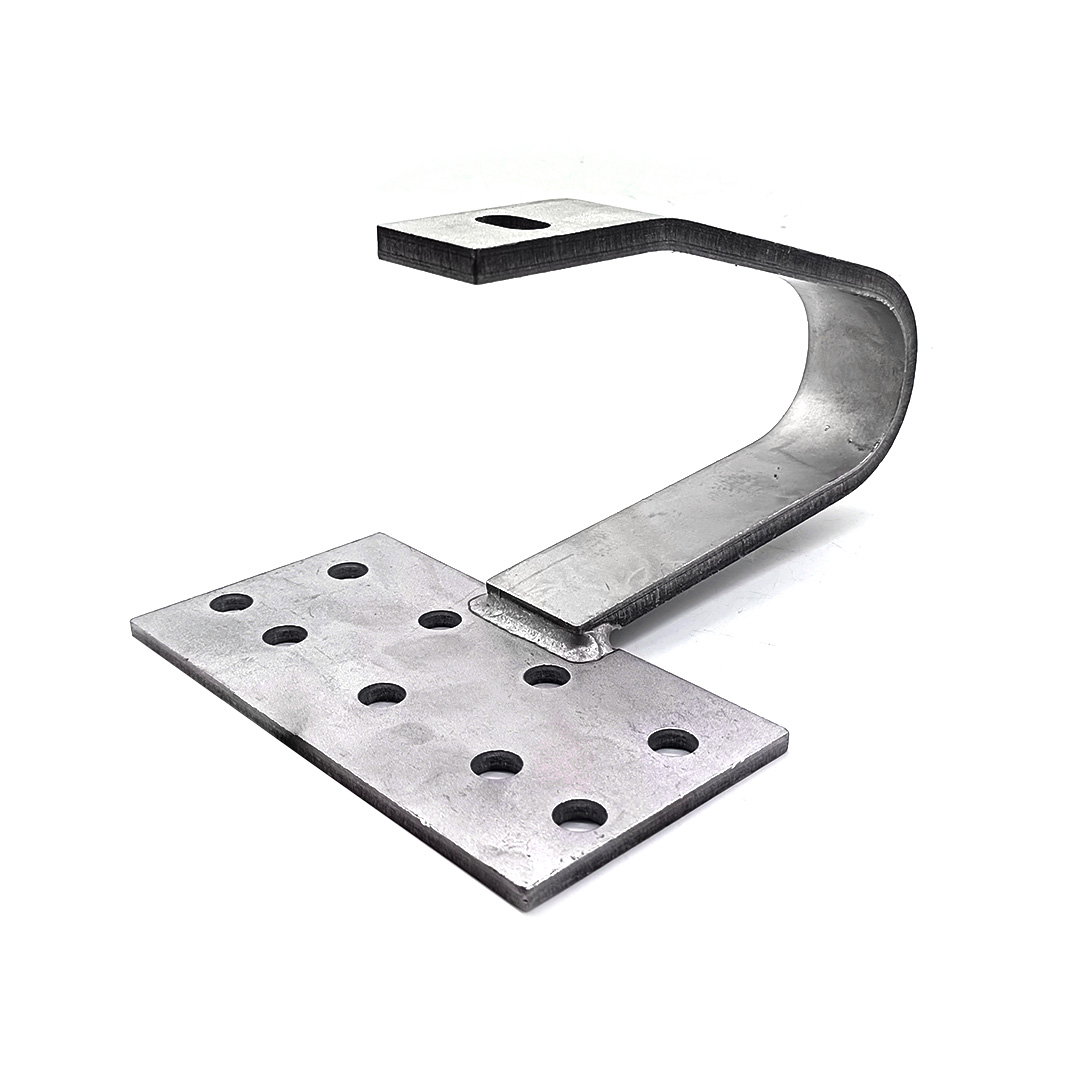

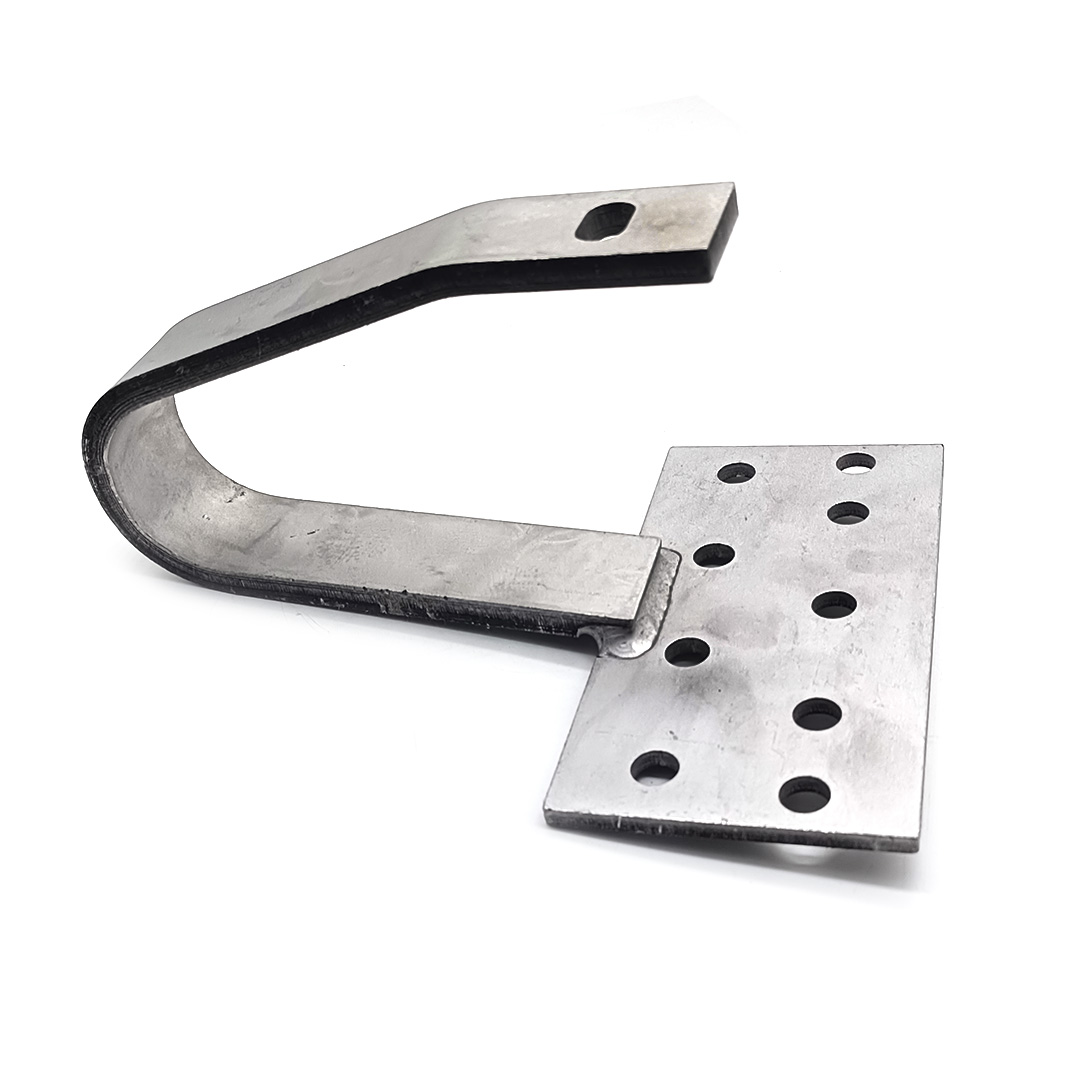

Structural features
Fixed shape: The fixed solar bracket hook has a specific shape, and its angle and size are designed according to the standard roof slope and solar bracket installation requirements. For example, in common slope roof installation, the bending angle of the hook will adapt to the inclination angle of the roof, generally between 10-60 degrees. This angle is to ensure that after the solar bracket is installed, the solar panel can achieve a good fit with the angle of sunlight, thereby improving the power generation efficiency.
Simple and compact: Its structure is relatively simple, usually consisting of a main hook body part and a fixed connection part. The hook body part is used to hook the roof purlin or other solid support structure, and the connection part has screw holes and other devices for bolting with the solar bracket. This compact structure makes it convenient and quick during installation, and the installer can understand and operate it more easily.
Material | Stainless steel |
Certificate | ISO9001: 2015、AS/NZS 1170、DIN 1055、JIS C8955：2017 |
Package | Carton+Pallet 25 Kg /Cartons+900 Kg /Pallets, 36 Cartons /Pallets Or According To The Customer's Requirements |
Surface Finishing | Zinc, HDG, Black, Anodized Polishing, Plain, Sand Blasting, Spray, Zinc Aluminum Magnesium |
Standard | DIN, ASTM /ASME, JIS, En, ISO, AS, GB |
Application | Machinery, Chemical Industry, Environmental, Building, Furniture, Electronic, Automobile |
Standard roof structure: This hook is suitable for buildings with relatively standard roof slopes and structures. For example, in some residential or industrial plants, the slope of the roof meets the conventional building design specifications, the roofing material is the common color steel plate or tile, and the purlin distribution inside the roof is regular. In this case, the fixed solar bracket hook can play a good role. It can be quickly installed on the purlin to provide stable support for the solar bracket.
Large-scale installation: For large-scale solar power station construction, if the conditions of the roof are relatively consistent, the fixed solar bracket hook can improve the installation efficiency. Because of its simple structure, the installer can master the installation skills after simple training, and because of its standardized design, it can be purchased and installed in batches, thereby reducing the installation cost and time.
Advantages:
Easy installation: As mentioned above, due to its simple structure and fixed shape, the installer does not need to perform complex angle adjustment and other operations, and can quickly install it on the roof, which is very helpful for increasing the construction speed of solar power stations.
Low cost: Compared with some adjustable solar bracket hooks, the fixed design and manufacturing process are relatively simple, and the material cost and processing cost are relatively low, so it can effectively reduce the construction cost of solar power stations in large-scale applications.
Limitations:
Lack of flexibility: Its biggest limitation is the lack of flexibility. Once the installation position and angle are determined, if it is found that the angle or position of the solar panel needs to be adjusted after installation, it will be difficult and may require reinstalling the hook or modifying the roof structure, which may cause inconvenience in some special cases.
Limited adaptability: It is only suitable for roofs with specific slopes and structures. If the slope or structure of the roof does not meet the design requirements of the hook, it may not be installed normally or the stability of the solar bracket and panel cannot be guaranteed after installation.
Professional Manufacturer : All of our Fastener are designed and manufactured according to buyers'specification and performance.
Quality is guaranteed : Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective : Wide range of parts selection , Competitive prices with professional factory supply.
Customized ideal Fasteners : customized services according to the samples and drawing offered.
Certification
Through scientific management, Jiaxing Haina fastener Ltd company has been obtained ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of Make in China.
RFQ
1. How do you let me trust you.
We have own import & export right, and we are gold mumber of alibaba and made in china, We get credit guarantee from Alibaba Group. You can make an order by alibaba to us directly.
2. How about your price.
High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you refer at once.
3. How do you control your quality.
We request QC inspect every productions links for each bacth goods. And we can provide you MTC and mill certificate when the goods is finished.
4. Could you provide free samples?
For new customer, We can provide free samples for standard fastener, But the clients will pay the express charges. For old customer, We will send you free samples and pay express charges by ourself.
5. Do you accept small order?
Sure, we can accept any orders, we keep lots of stock for all stainless steel,carbon steel nut and bolt, like hex weld nut, cage nut, wing nut, square weld nut,Cap nut, hex nut, flange nut. Metric 8.8Grade, 10.9Grade 12.9Grade Hex bolt and hex socket cap screw, part asme hex cap screw.
6. How about your delivery time
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days, if the quantity is more than 2 container and You are very urgent, we can let factory priority produce your goods.
7. What is your packing.
Our packing is 20-25kg for one carton, 36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers' requestment.
8. What is your payment term
We can accept T/T, LC for general order, Paypal and Western union for small order or samples order.
