Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts

Material: SS304 SS316 8.8Grade
Standard:GB898
Size:M2-M100
Min Order: 5pcs
Sample: Free sample
Delivery time:3-30 Days
Availability:
Quantity:
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
Stainless Steel 316 M2-M100 Double Ended Headed Stud Bolts
  • GB898

  • HNF

  • HNF2024121001


Stainless Steel 316 M2-M100 Double  Ended  Headed Stud Bolts




Product Description


A double-ended stud is a stud with threads on both ends, no threads or only a small number of threads in the middle, and is used to connect parts that need to be fixed on both sides. It is usually used to fix parts on a larger body, with one end screwed into the body and the other end connected to other parts through a nut to form a reliable connection. Double-ended studs are mostly used in occasions that require frequent loading and unloading or high precision, such as engines, mechanical equipment, and flange connections. Its structure is simple, provides high-strength fastening effect, and is easy to disassemble and maintain.



Advantages

- High strength: provides high fastening force, suitable for harsh environments.

- High temperature and high pressure resistance: suitable for high temperature and high pressure connection occasions.

- Easy to disassemble: easy to inspect and replace, no need to completely remove.


Disadvantages

- Complex installation: requires precise alignment and long installation time.

- Higher cost: special materials and processing increase costs.

- Large weight: when used for heavy connections, transportation and installation difficulties increase.



Product Details

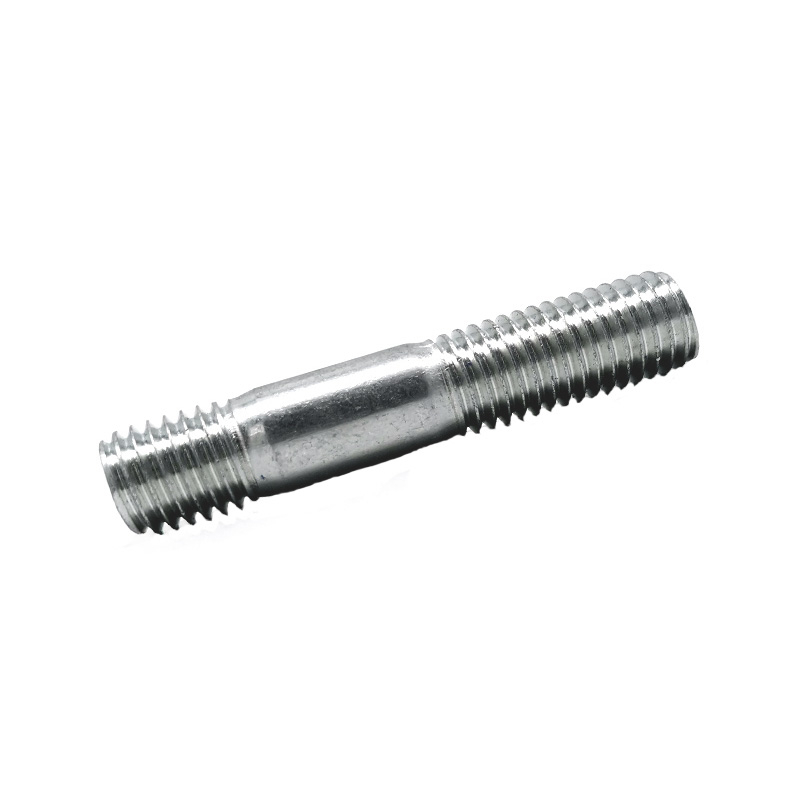

P4

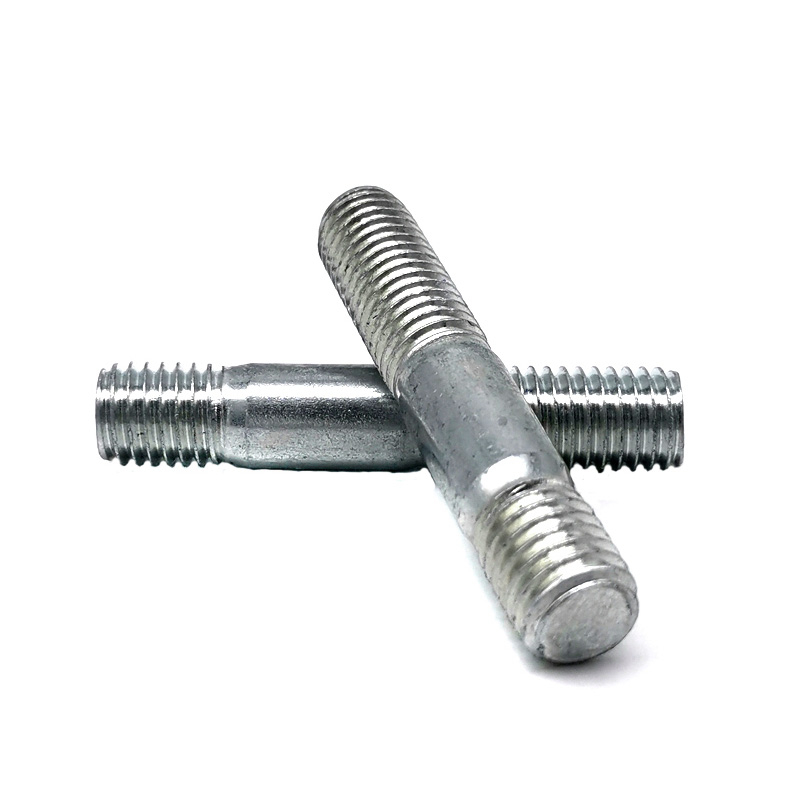

P8

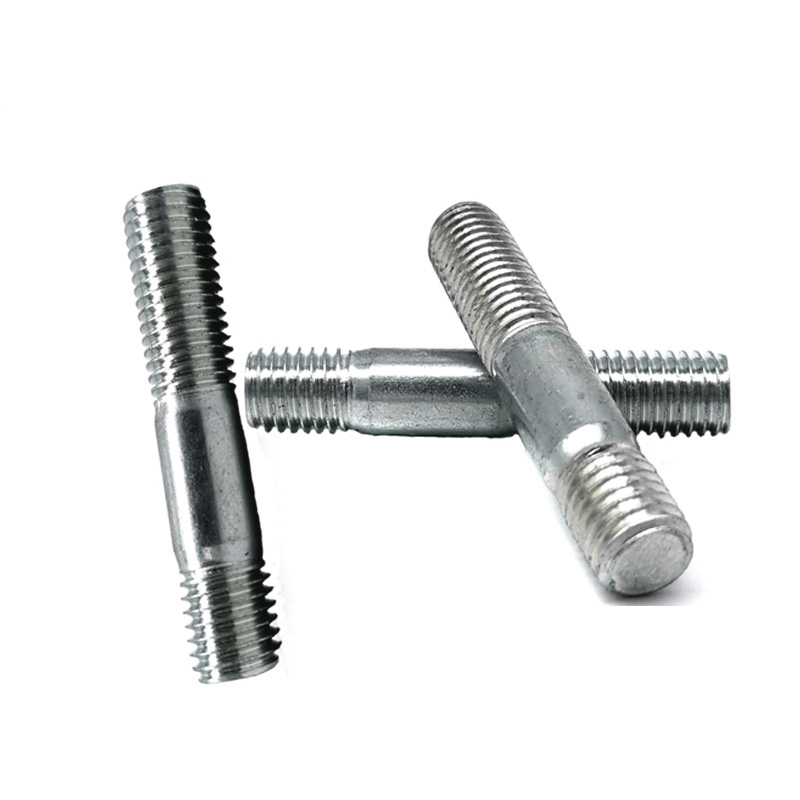

P7



Production Process


671d27fc609562fee6fb7f354e36ed8


Product Application



Stud Bolt is widely used for its high strength and reliability.

1. Pipe and flange connection: used for flange fastening in high-pressure pipelines and chemical equipment.

2. Oil and gas industry: suitable for equipment installation in harsh environments, withstanding high temperature and high pressure.

3. Construction and civil engineering: used for steel structure connection, providing high-strength fixation.

4. Machinery manufacturing: used for fixing heavy machinery parts such as engines and pumps.


Company Services



Haina is committed to providing customers with high-quality stainless steel standard fasteners and professional services to meet various engineering needs. We have a large amount of spot inventory to ensure fast delivery and save you waiting time. In addition, we provide the following value-added services to help your purchasing experience:

1. Free samples: provide samples for customer testing.

2. 3.1 Test report: quality test report that meets international standards.

3. Video factory inspection: support video factory inspection to demonstrate production process and quality management.


Advantages

- Sufficient inventory: quick response to order requirements.

- Quality assurance: strict quality control to ensure product reliability.

Haina is committed to providing efficient and high-quality fastener services.


certification


FAQ


1.What is the purpose of a double stud?

The main function of a double-ended stud is to provide a strong double-sided connection, which is suitable for structural parts that require high-strength fixing. One end of the double-ended stud is screwed into the main material, and the other end is connected to other components through a nut, so that it can remain stable under high pressure or vibration environments. It is widely used in occasions such as machinery, automobiles, and construction that require disassembly and maintenance, such as fixing engines, flanges, and heavy machinery and equipment. The double-headed stud design makes loading and unloading easier, and there is no need to frequently replace the main material, which effectively extends the service life.


2.What type of bolt commonly used in construction that is threaded in both ends?

The double-ended threaded bolt commonly used in construction is Double-Ended Stud, also known as Stud Bolt. This bolt has threads on both ends and no head in the middle. It is usually used to connect structural members that need to be fixed on both sides, such as steel beams, columns, or pipe flanges. During installation, one end is screwed into the main structure or fixed base, and the other end is connected to other components through a nut. Double-headed studs have high strength and are suitable for bearing heavy loads and high pressures. They are commonly used fasteners in construction, bridges, and heavy equipment installations.


3.What is the difference between a stud and a threaded rod?

The main difference between studs and threaded rods is their length and purpose. Studs are usually shorter and have threads at both ends, with no threads or only a small amount of threads in the middle. They are used for double-sided fixing, such as the connection between flanges and mechanical parts. Threaded rods are threaded throughout and have a longer length. They can be cut as needed and are widely used in construction, installation, and maintenance for fixing, tightening, or structural reinforcement. Studs are suitable for precision connections, while threaded rods are more flexible and suitable for general fixing.

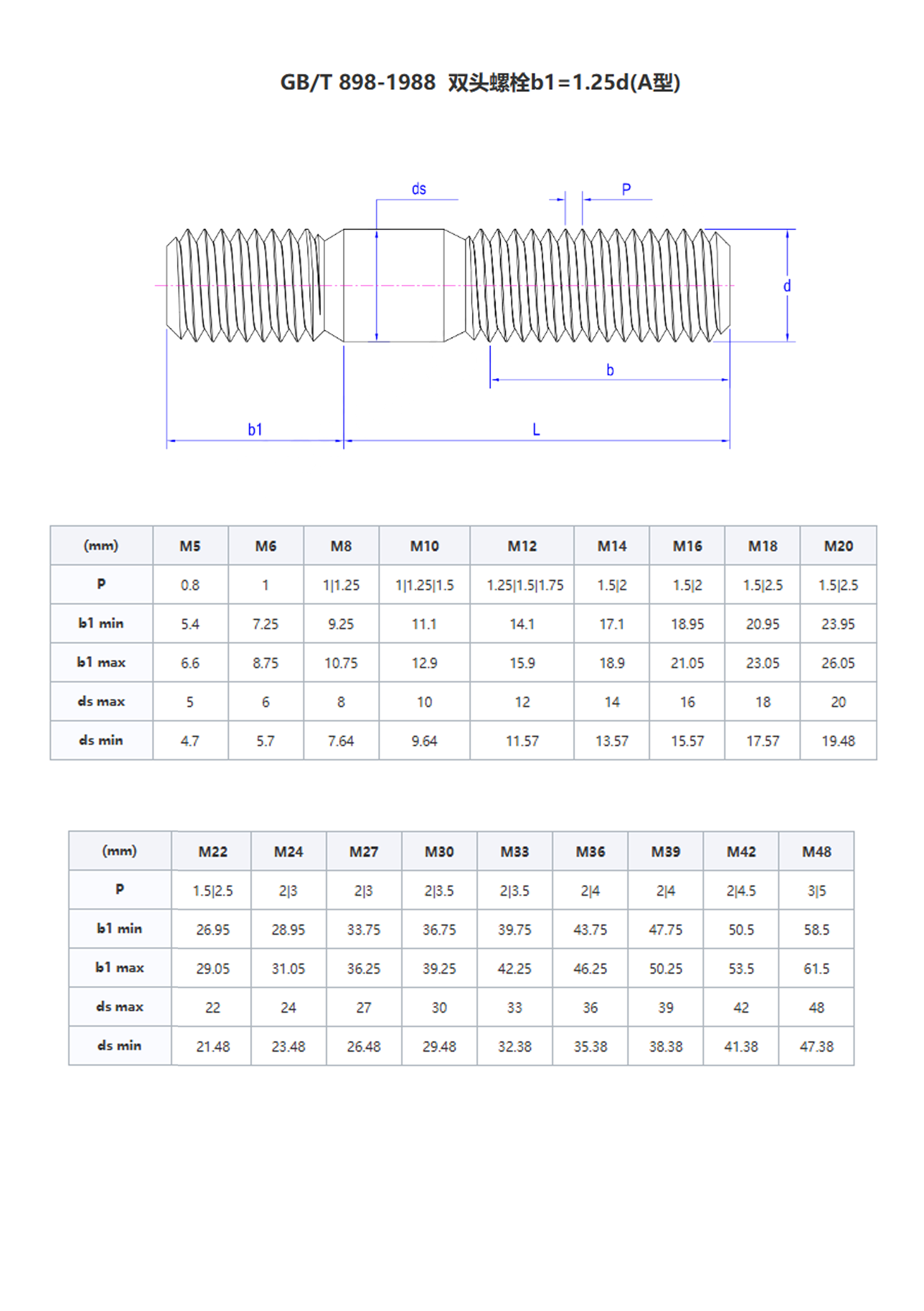

双头螺栓2
