Stone Cladding Support System Fixing Marble Angle / Curtain Wall Bracket

Product name: Stone Cladding Support System Fixing Marble Angle / Curtain Wall Bracket
Type: Thumb head screw
Service: Online Technical Support
Country of origin: CHINA
Engineering solution capability: Graphic design
QUALITYE: 1 year
Materal: Aluminium,stainless steel,carbon steel,steel
Quantity:
  • Fixing Marble Angle
  • HNF
  • 2020092502

H14f518f53b0149e5909ec378d9365e93x

Marble pendant is a connecting rod type slotted dry hang, back bolt type dry hang, bolt type dry hang.

The construction method of marble pendant is quick and convenient, can improve work efficiency,

accelerate construction progress, reduce labor intensity, reduce glue dosage, labor time, plate

thickness and so on. It is the most widely used pendant in all stone materials.

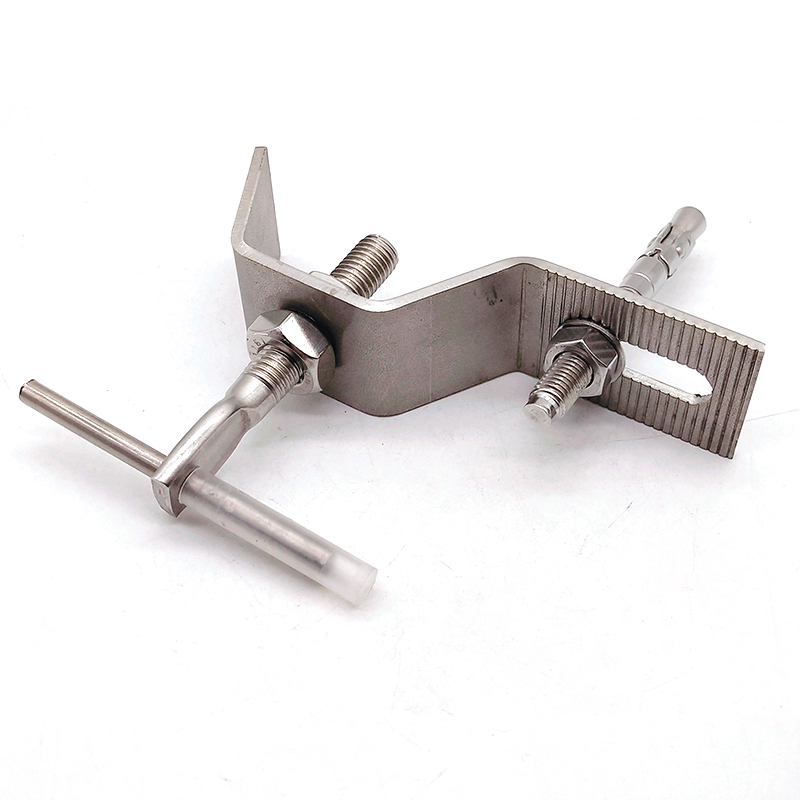

Anchors are fixed directly on to concrete walls with expansion bolts. In horizontal joint installation slabs

are pinned on the bottom and upper sides. Anchors act as load bearing carrying half

The weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining

 against wind suction and pressure. In vertical joints installation slabs are pinned at the left and right

sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab.

Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top

are restraint anchors holding the slabs and restraining against wind suction and pressure.


Products name
Stone Cladding Support System Fixing Marble Angle / Curtain Wall Bracket
Standard:

DIN,ASTM/ASME,JIS,EN,ISO,AS,GB

Material
Stainless Steel: SS304, SS316; Aluminum
Finishing
plain, polishing, hot dip galvanized ( HDG )
Applied Cladding Stone, granite, marble, tile, terracotta, ceramics, glass, aluminum
Type T type, L type, Y type, R type, SE type
Production
Process
Cold Froging,Hot Forging,Machining and CNC for Customized fastener
Customized Products
Lead time
Busy season:15-30days,Slack seaon:10-20days
Fress Samples for standard fastener
For more information visit: www.hainafastener.com
