HINA
HINA2024123002
Definition

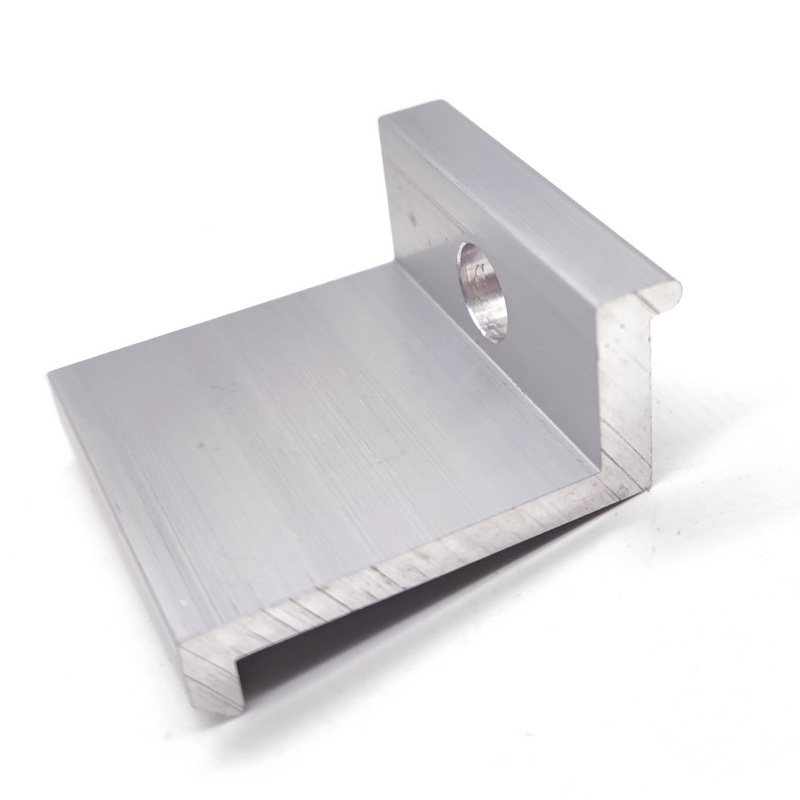

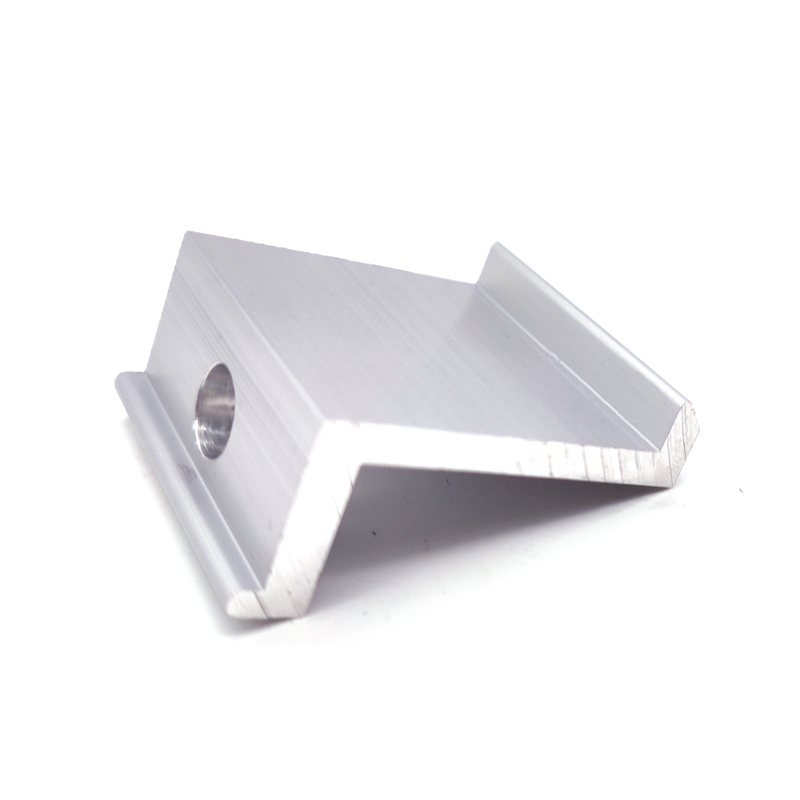

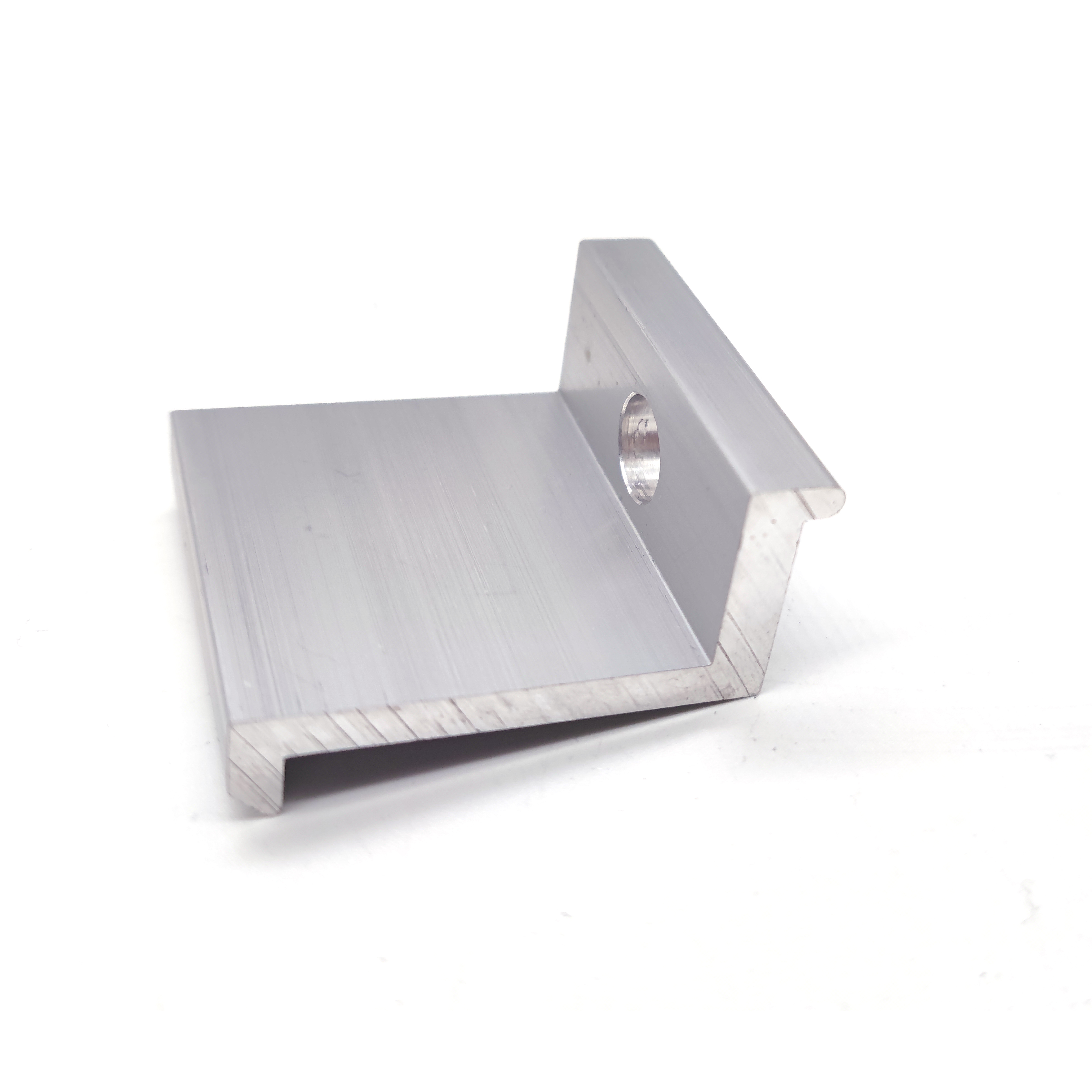

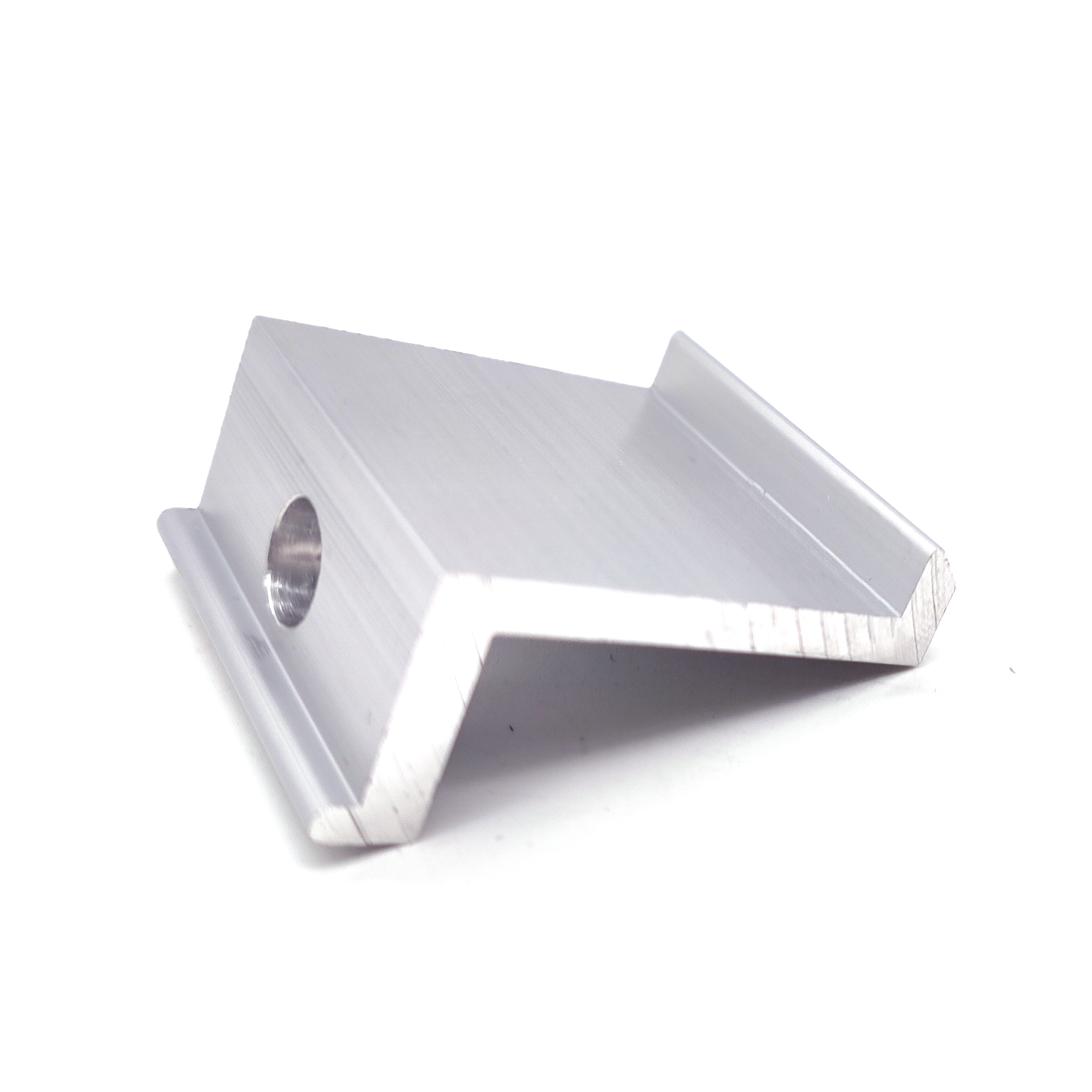

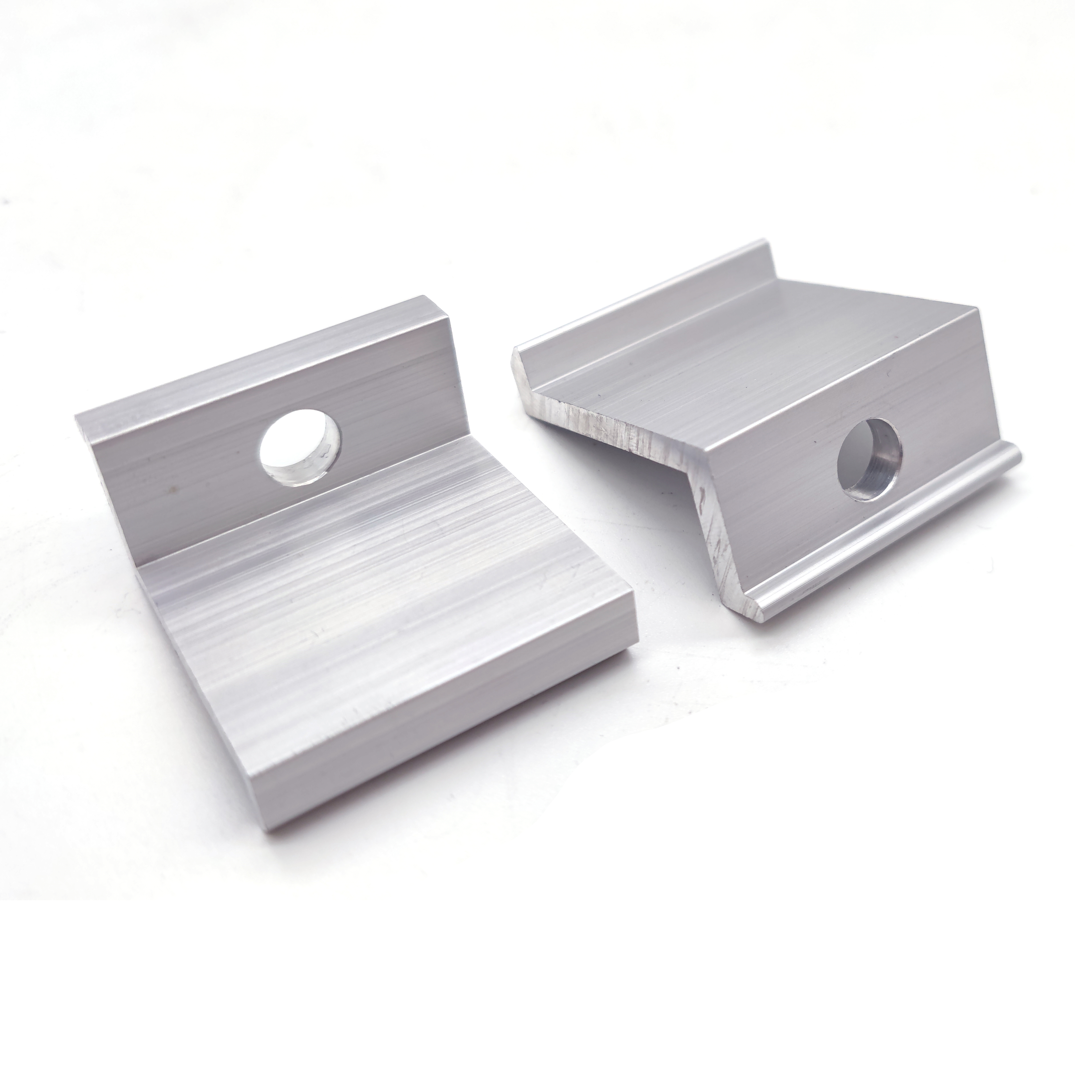

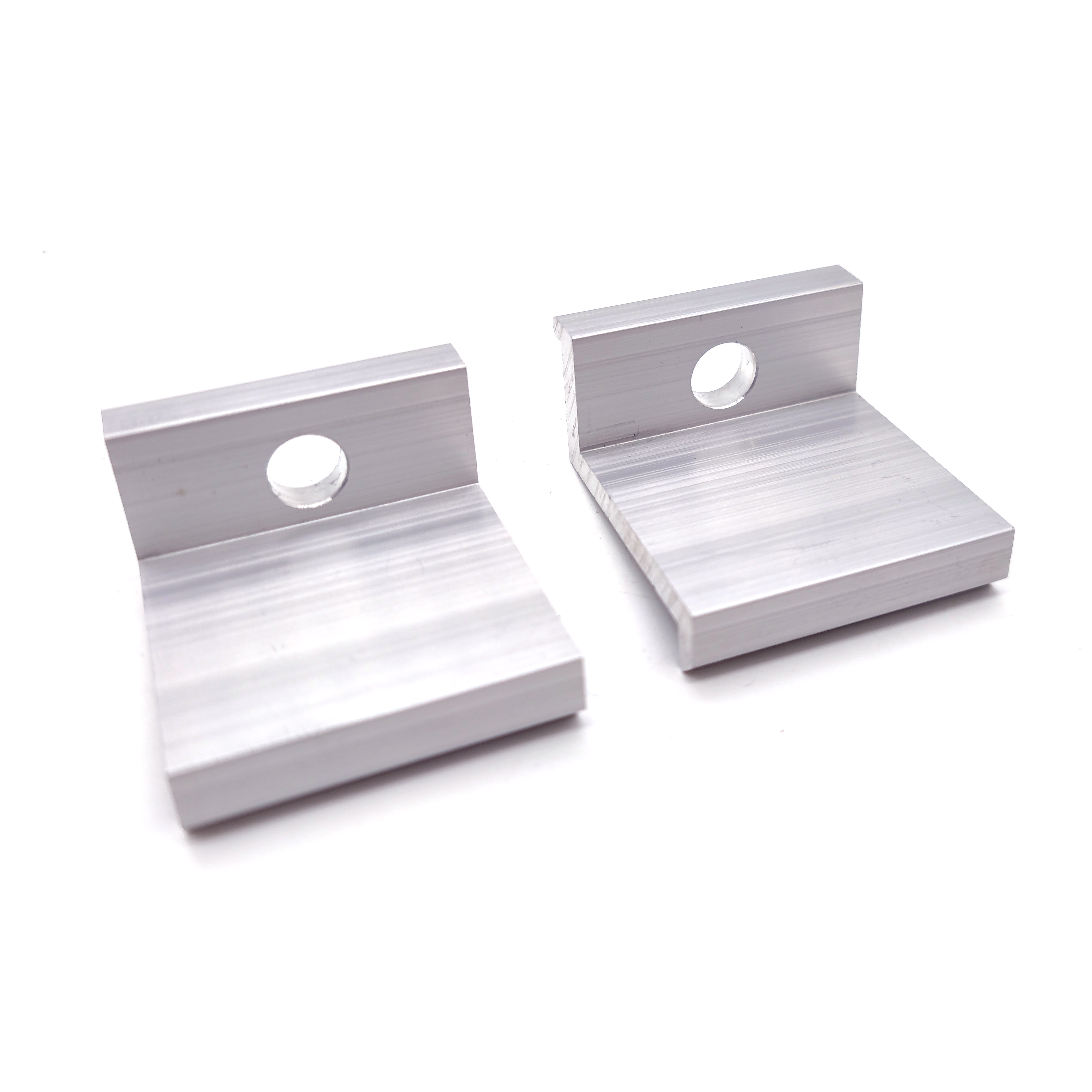

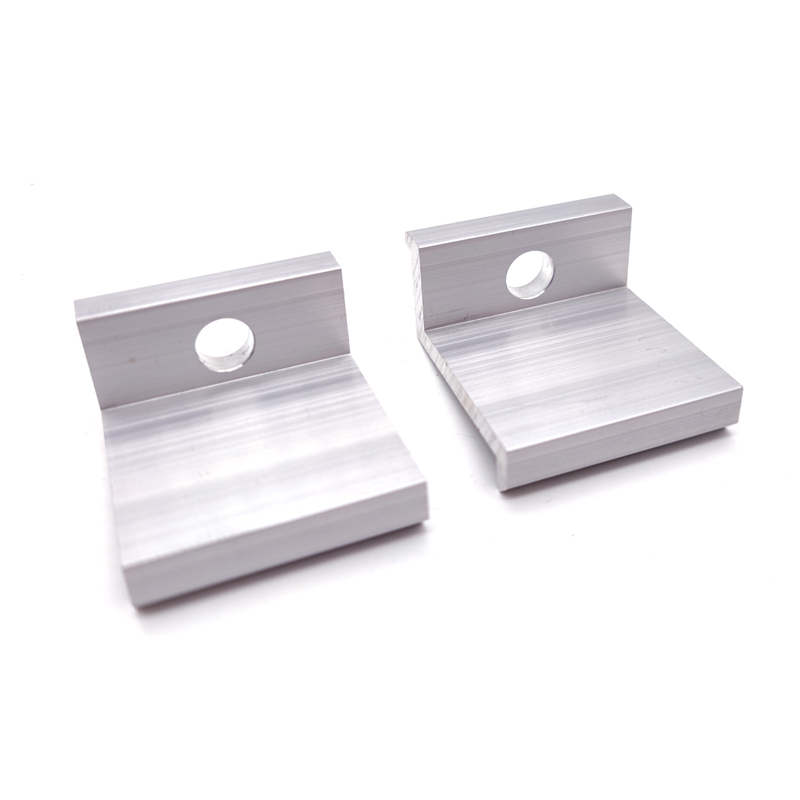

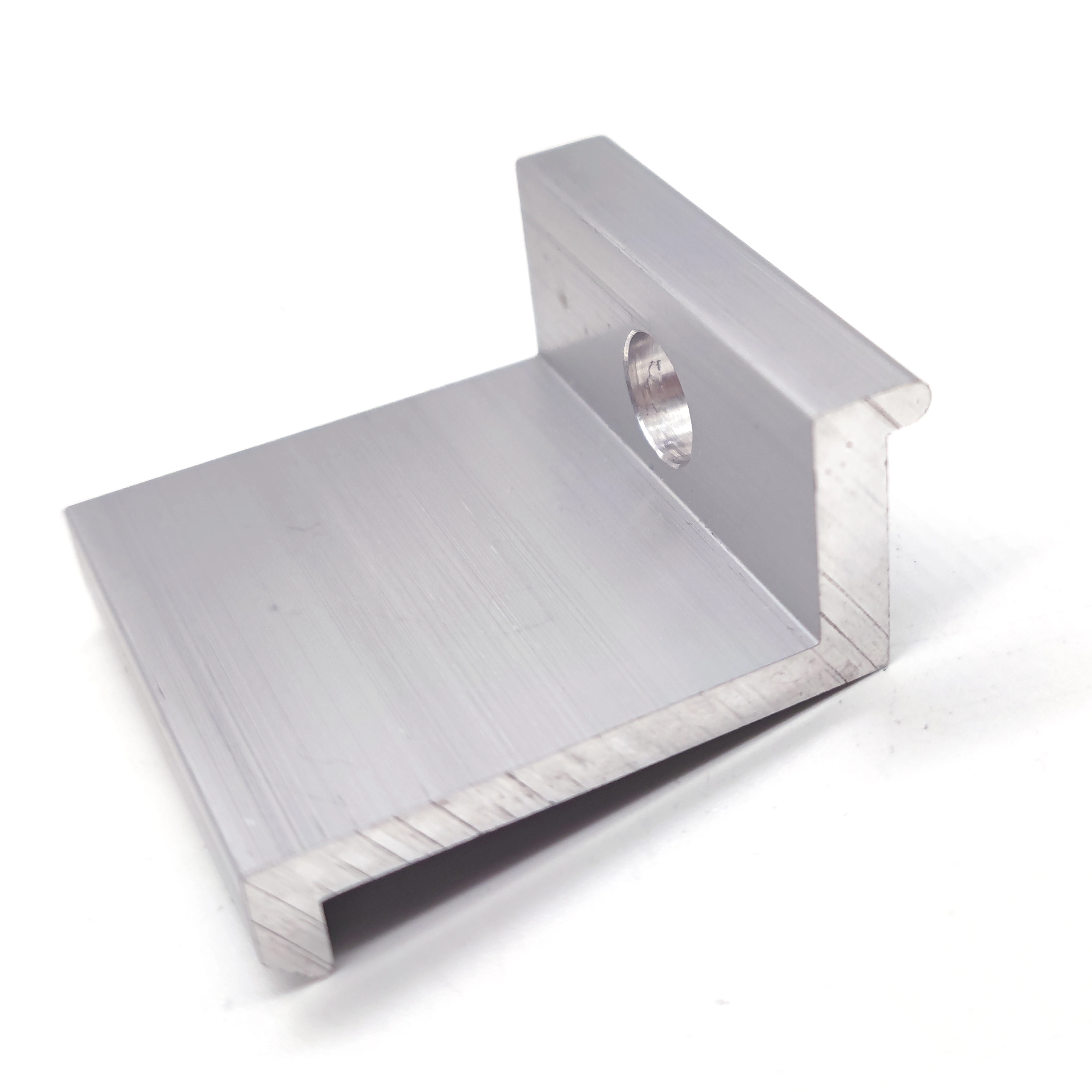

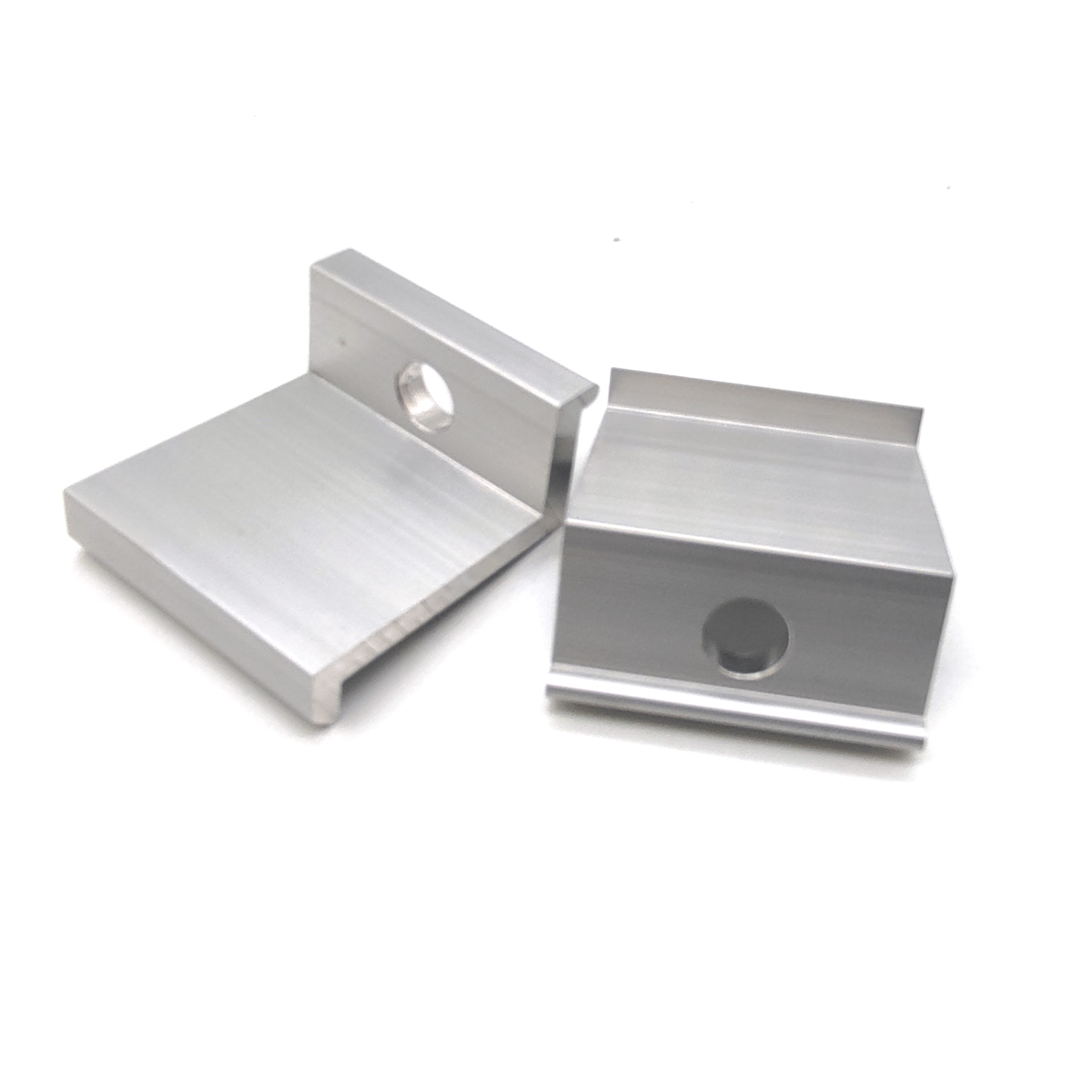

The solar end clamp is an accessory used in solar photovoltaic (PV) module mounting systems. It is primarily used to secure the edges of solar panels by applying pressure to the panel's edge, tightly fixing it to the mounting structure. The shape of the end clamp is typically designed to match the edge profile of the panel, usually in a strip-like form with an appropriate curvature to fit the panel's edge. Most end clamps are made of materials such as aluminum alloy, which offer excellent strength and corrosion resistance, capable of withstanding outdoor environmental challenges.
Applications
Distributed PV Systems:
End clamps are widely used in distributed PV projects, such as residential rooftops and commercial building rooftops. For example, in residential rooftop PV systems, end clamps are used to secure panels installed on sloped roofs. Given the limited and complex space and layout of rooftops, end clamps can precisely fix the panel edges, ensuring the panels fit tightly with the roof mounting structure and improving installation stability. In commercial buildings where aesthetic requirements are high, end clamps contribute to a more orderly and visually appealing installation.
Large-Scale PV Power Plants:
End clamps also play a crucial role in large-scale ground-mounted and floating PV power stations. For instance, in ground-mounted PV power plants, where solar panel arrays are extensive, end clamps are used to secure the edges of each panel. Working in conjunction with mid clamps, they ensure the entire panel array remains stable under extreme weather conditions such as sandstorms, heavy rain, and snow accumulation. In floating PV power plants, end clamps prevent panel displacement caused by water flow, waves, or impact from water currents.
Advantages
Precise Edge Fixation:
One of the key advantages of solar end clamps is their ability to precisely secure the edges of solar panels. Thanks to their specialized shape and design, they tightly conform to the panel edge, effectively preventing edge lifting or displacement. This precise fixation helps maintain the flatness of the panels, which is crucial for improving PV power generation efficiency. Flat installation ensures uniform sunlight exposure, reducing shading effects caused by panel deformation and thereby enhancing overall performance.
Improved Wind Resistance:
Wind is a significant factor affecting the stability of solar panels in outdoor environments. End clamps enhance the wind resistance of solar panels by firmly securing the panel edges to the mounting structure. When strong winds occur, the panels are better able to resist the wind's force, reducing the risk of wobbling or damage. Compared to installations without end clamps, panels with end clamps demonstrate significantly improved stability in windy conditions, lowering the likelihood of damage or power generation interruptions caused by wind.
Protection Against Edge Damage:
In addition to securing the panels, end clamps also help protect the edges of the panels. Often, the clamps include softer materials (such as rubber pads) on the inside to prevent direct metal contact with the panel edges, reducing the risk of scratches or abrasion. This protective feature is especially valuable during prolonged outdoor use, as it extends the lifespan of the panels and minimizes performance degradation and maintenance costs caused by edge damage.
Haina is committed to providing customers with high-quality stainless steel standard fasteners and professional services to meet various engineering needs. We have a large amount of spot inventory to ensure fast delivery and save you waiting time. In addition, we provide the following value-added services to help your purchasing experience:
1. Free samples: provide samples for customer testing.
2. 3.1 Test report: quality test report that meets international standards.
3. Video factory inspection: support video factory inspection to demonstrate production process and quality management.
Advantages
- Sufficient inventory: quick response to order requirements.
- Quality assurance: strict quality control to ensure product reliability.
Haina is committed to providing efficient and high-quality fastener services.
How do I choose the right solar end clamp?
Ensure the end clamp matches your panel’s thickness, the rail type, and the installation environment.
How many solar end clamps are needed for a panel?
Each panel typically requires 4 end clamps—2 on each end of the panel.
Are solar end clamps compatible with all solar panels?
Most clamps are designed to fit a wide range of panels, but compatibility should be confirmed based on the panel's specifications
