HNF
2021010704

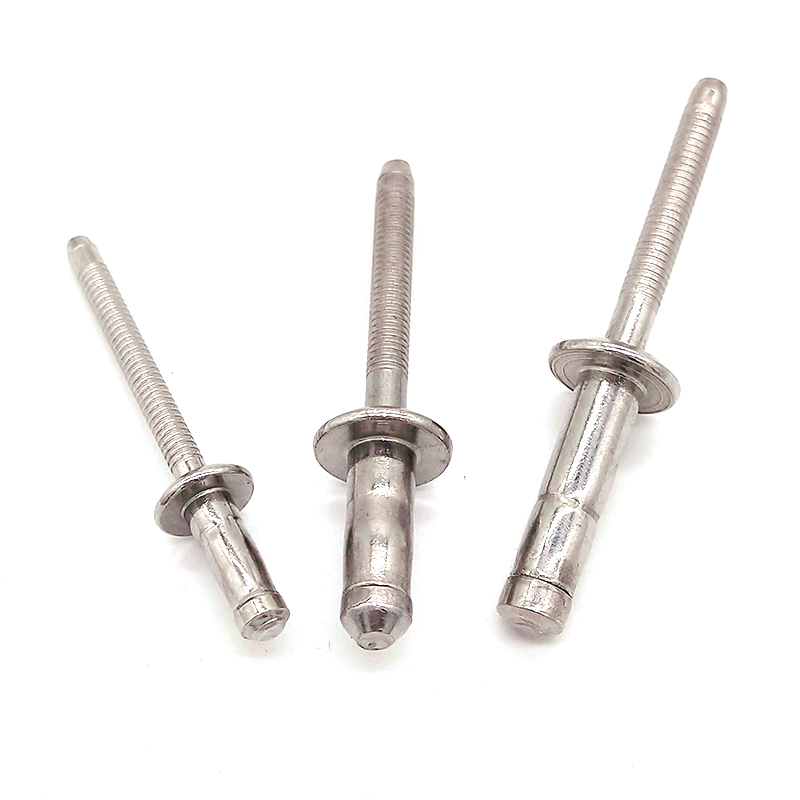

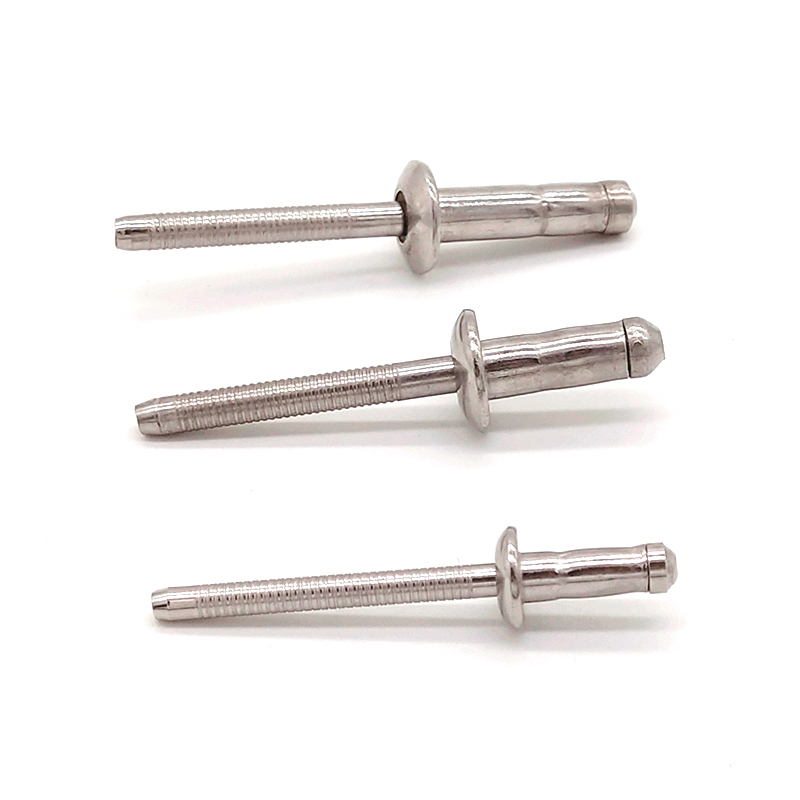

Stainless Steel / Stainless Steel Hem-Luk Blind Rivet for Solar System
Product Information
Hem-luk Rivet has been designed for the fastening of elements that require exceptional tensile and shear strengths.
The mandrel will break nearly flush with the head and contains a locked mandrel to prevent vibration, therefore it can
avoid thus any kind of electrical problems and noises caused by loose mandrels.
Features
· Extremely high shear and tensile strength.
· Large blind end bearing surface disperses the axial load/clamping load acting on the blind end workpiece.
· High clamping force to prevent riveted workpiece from being pulled out.
· Spline type locking nail core design provides strong shock-proof connection. Avoid the problem of power short
circuit caused by the loosening of the nail core and falling off due to violent vibration.
| Materials | Grades/ Specification | |
| •Stainless Steel | 303 304 304L 309 310 316 316L 317L 321 330 347 410 416 422 430 431 440C 501HT | SAE J429(Gr.2,Gr.5,Gr8) |
| ASTM A193 Grade B8 ASTM A193 Grade B8M ASTM A194 Grade 8 ASTM A194 Grade 8M ASTM A320 Grade B8 ASTM A320 Grade B8M | A193/A193M(B6,B7,B8,B8M,B16) | |
| •Carbon Steel | C1018 C1035 C1040 C1045 1215 ASTM A36 Q235 1117 12L14 ASTM A194 Grade 2H ASTM A194 Grade 2HM | A307(A,B,C) |
| •Alloy Steel | 4130 4140 4340 8620 8740 ASTM A193 Grade B7 ASTM A193 Grade B7M ASTM A193 Grade B16 ASTM A194 Grade 7 | A325/A325M |
| ASTM A194 Grade 7M ASTM A320 Grade L7 ASTM A320 Grade L7M SAE J429 Grade 8 | A449 | |
| •Brass | H62 H65 H70 C28000 C27000 C26000 | A490/A490M |
| •Aluminum | 6061 7075 | F568(5.6,8.8,10.9,12.9) |
Our service
Professional Manufacturer : All of our Fastener are designed and manufactured according to buyers'specification and performance.
Quality is guaranteed : Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective : Wide range of parts selection , Competitive prices with professional factory supply.
Customized ideal Fasteners : customized services according to the samples and drawing offered.
