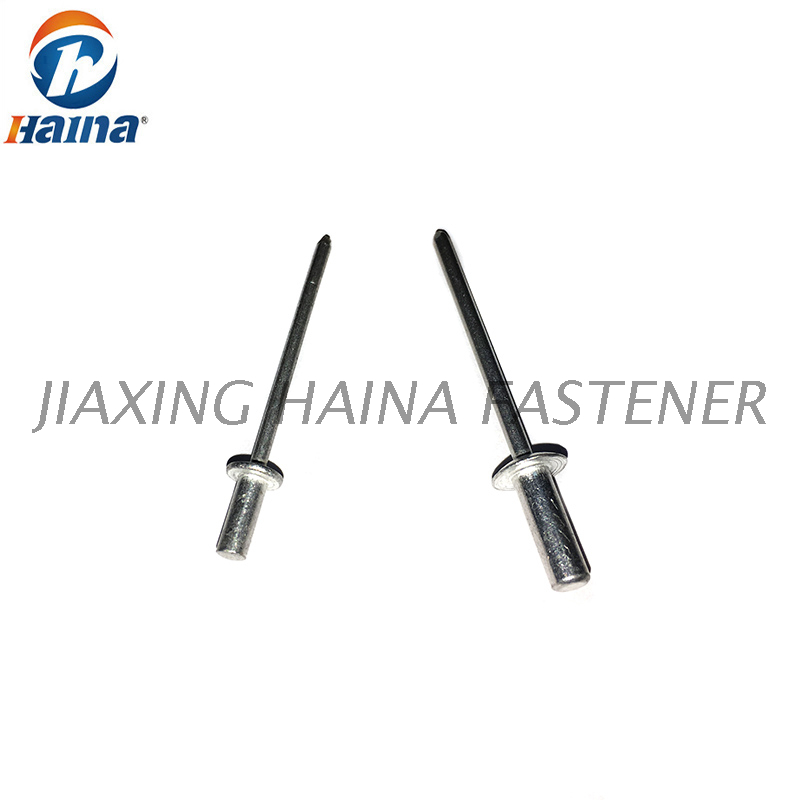

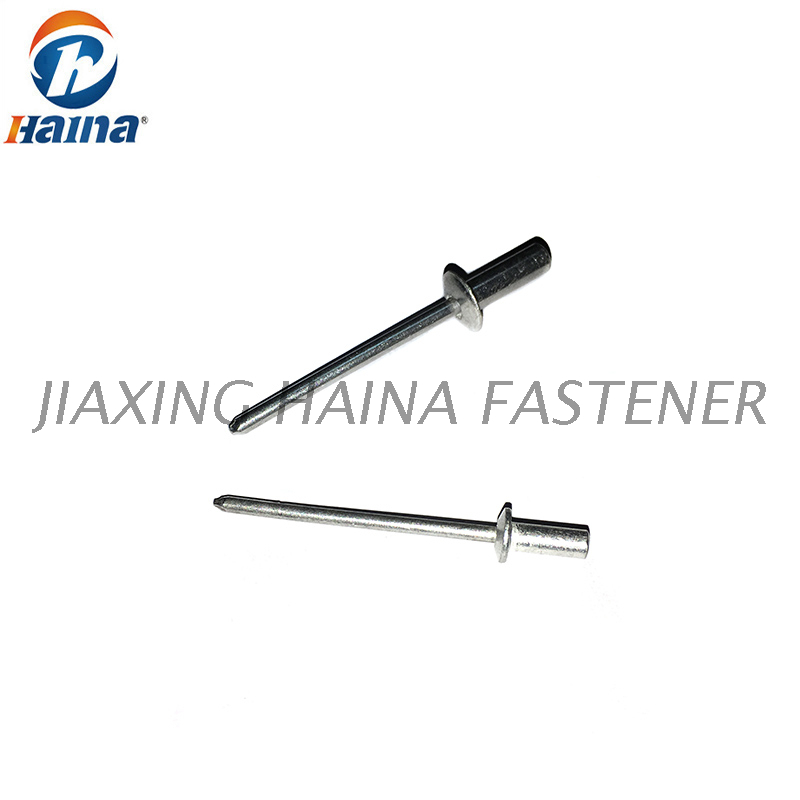

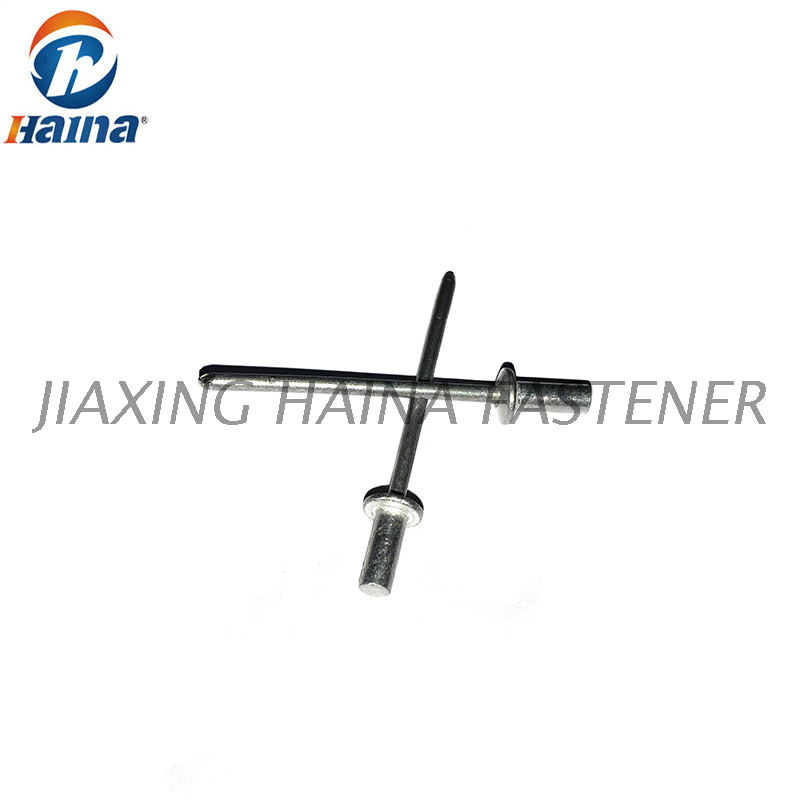

DIN7337 Flat Head Aluminum Blind Rivet

Surface: polished
Material: stainless steel
MOQ: ≥1000PCS

Quantity:
  • DIN7337
  • HNF
  • HNT170523

DIN7337 Flat Head Aluminum Blind Rivet

Blind rivets, commonly referred to as "pop" rivets (POP is the brand name of the original manufacturer, now owned by Stanley Engineered Fastening, a division of Stanley Black & Decker) are tubular and are supplied with a mandrel through the center. The rivet assembly is inserted into a hole drilled through the parts to be joined and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and then the mandrel snaps off.

Materials
Grades/      Specification
•Stainless Steel 303    304    304L    309    310     316    316L    317L    321    330    347    410    416    422    430    431    440C    501HT SAE J429(Gr.2,Gr.5,Gr8)
ASTM A193 Grade B8  ASTM A193 Grade B8M ASTM A194 Grade 8    ASTM A194 Grade 8M     ASTM A320 Grade B8  ASTM A320 Grade B8M       A193/A193M(B6,B7,B8,B8M,B16)
•Carbon Steel C1018    C1035    C1040    C1045    1215          ASTM A36    Q235    1117    12L14                 ASTM A194 Grade 2H  ASTM A194 Grade 2HM             A307(A,B,C)
•Alloy Steel 4130    4140    4340    8620    8740                      ASTM A193 Grade B7  ASTM A193 Grade B7M     ASTM A193 Grade B16   ASTM A194 Grade 7   A325/A325M
ASTM A194 Grade 7M   ASTM A320 Grade L7   ASTM A320 Grade L7M   SAE J429 Grade 8              A449
•Brass H62    H65    H70                                          C28000    C27000    C26000 A490/A490M
•Aluminum 6061    7075 F568(5.6,8.8,10.9,12.9)

 Application:
blind rivets are used mainly when access to the joint is available from only one side. The rivet is placed in a drilled hole and is set by pulling the mandrel head into the rivet body, expanding the rivet body and causing it to flare against the reverse side. As the head of the mandrel reaches the face of the blind side material, the pulling force is resisted, and at a predetermined force, the mandrel snaps at its break point, also called blind setting. A tight joint formed by the rivet body remains, the head of the mandrel remains encapsulated at the blind side, although variations of this are available, and the mandrel stem is ejected.
