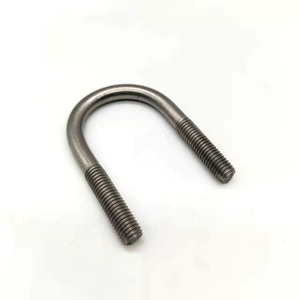

Stainless Steel Ss304 U Bolts for Power Fitting

Production technology: Cold forging and hot forging
Sales Models: Wholesale
Min Order: 1000 pcs
Sample: Free sample
Certificate: MTC, Test report
Export country: Asia, Middle East, Europe, America and so on

Availability:

Quantity:


Inquire Add to Basket

Model:
U Type
Brand:
HNF
Code:
170618

Stainless Steel Ss304 U Bolts for Power Fitting

U-Bolts are U-shaped bolts with two threaded arms protruding from a curved base. Round U-Bolts are typically used for attaching pipe or steel round bar to wood or steel post. They are also used to hang wrought iron pipe in mechanical installations.

Long tangent U-Bolts are also available. Their long legs are perfect for mounting to thick flanges. Long tangent U-Bolts are basically the same thing as the standard round U-Bolt, except that they have longer legs and more thread

A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

U-bolts have primarily been used to support pipework, pipes which fluids and gasses pass through. As such, U-bolts were measured using pipe work engineering speak. A U-bolt would be described by the size of pipe it was supporting.
For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the u-bolt.

The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar then a more convenient measurement system needs to be used.

8-2

Selling points

1. Over 8 years of manufactiring experience
2. Well equiped with complete facilities
3. High quality with competitive price
4. Strict quality control systemSample available

5. Professional Workers
6. OEM workable

7. Provide customized services

Certification（证书有图）

Through scientific management, Jiaxing Haina fastener Ltd company has been obtained ISO9000 certificate of Quality Managerment System, SGS and BV international certificate system of Make in China.

iso 1 (1)

316 Stainless Steel Square U Bolts

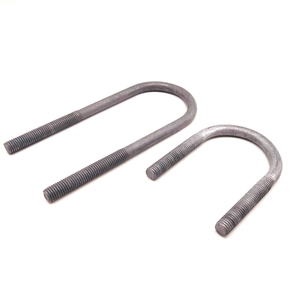

Stainless Steel U Bolts

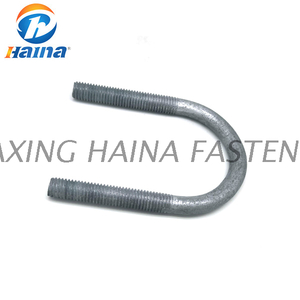

Galvanized Carbon Steel U Bolt with Hexagon Nuts for Transimission Lines Tower

Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower

Grade 5.8/6.8/8.8 Carbon Steel Hot Dip Galvanized U Bolt with Nuts for Power

Grade 2/5 galvanized carbon steel U bolt for tower and hardware of transimission lines

Carbon Steel Grade 5.8 Grade 6.8 M16 M20 M24 HDG U Type Power Bolt

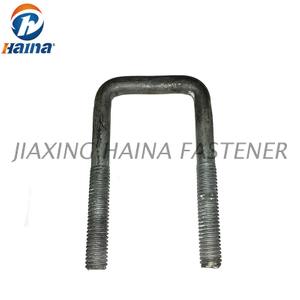

Carbon Steel Square U Shape Grade 8.8 HDG Electric Power Iron Tower Bolt

grade 6.8 carbon steel hot dip galvanized square U shape bolt for electric equipment

China Manufacturer M10 M12 M16 carbon steel HDG square U type Bolt for electric power

4.8/8.8 Grade Carbon Steel Hot DIP Galvanized Electric tower Fitting polishing HDG DIN3570 U Bolts with Nuts

OEM Wholesale DIN3570 Carbon Steel U Bolt for Electric Tower Equipment HDG U Shape Bolt

OEM Carbon Steel 4.8/8.8 Grade Zinc Plated Hot DIP Galvanized HDG U Bolt with Nut for Electric Power

4.8/8.8/109/12.9 Grade Carbon Steel /stainless Steel ss304/316 Hot DIP Galvanized HDG DIN3570 U Bolt for Electric Tower

DIN3570 Stainless Steel A4-80 U Bolt or Square U Bolt

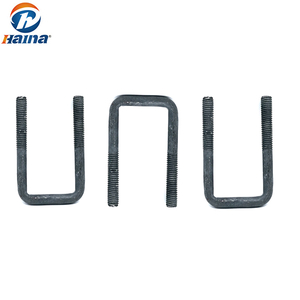

DIN 3570 hot-dip galvanized square U-bolt

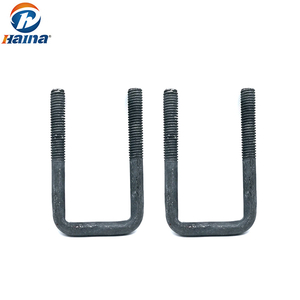

Stainless Steel A2 SS 304 Square U Bolts

Carbon Steel HDG Grade 8.8 Square Bend U Bolt

Stainless Steel A4-80 U Bolt or U Shaped Bolt

U-BOLT SPECIFICATIONS
Thread Diameter	Width Between Legs	Inside Length	Thread Length	Pipe Size

1/4"-20	3/4"	1 1/4	3/4"	3/8"
1/4"-20	3/4"	1 3/4	3/4"	3/8"
1/4"-20	3/4"	2 1/4	1 1/2	3/8"
1/4"-20	1"	1 3/4	3/4"	1/2"
1/4"-20	1-1/8"	2	3/4"	3/4"
1/4"-20	1-3/8"	2 1/4	3/4"	1"
1/4"-20	1 3/4	2 3/4	1	1 1/4
1/4"-20	2	3 1/4	1 1/4	1 1/2
1/4"-20	1 1/2	3 1/2	2	1
5/16"-18	1 3/8	2 3/16	1	1
5/16"-18	1 3/8	3 11/16	1 1/2	1
5/16-18	1 3/4	2 11/16	1	1 1/4
5/16-18	2	2 11/16	1	1 1/2
5/16-18	2	3 11/16	1 1/2	1 1/2
5/16-18	2 1/2	3 3/16	1 1/2	2
3/8"-16	1	2 1/4	1 1/4	1/2"
3/8"-16	1 3/8	3 1/8	1 1/2	1
3/8"-16	1 1/2	2 1/2	1 1/4	1
3/8"-16	2	3 1/8	1 1/4	1 1/2
3/8"-16	2 1/2	3 5/8	1 1/2	2
3/8"-16	3	4 1/8	1 1/2	2 1/2
3/8"-16	3 5/8	4 5/8	1 1/2	3
1/2"-13	3	4 1/2	1 1/2	2 1/2
1/2"-13	3.5	5	1 1/2	3
1/2"-13	4	5 1/2	1 1/2	3 1/2
1/2"-13	4.625	6	1 1/2	4
1/2"-13	5.625	7	2	5
1/2"-13	6.75	8	2	6
1/2"-13	8.75	10 3/8	2	8
5/8"-11	8.75	11 1/2	4	8
