DIN127, GB93
HNF
HNT1706703

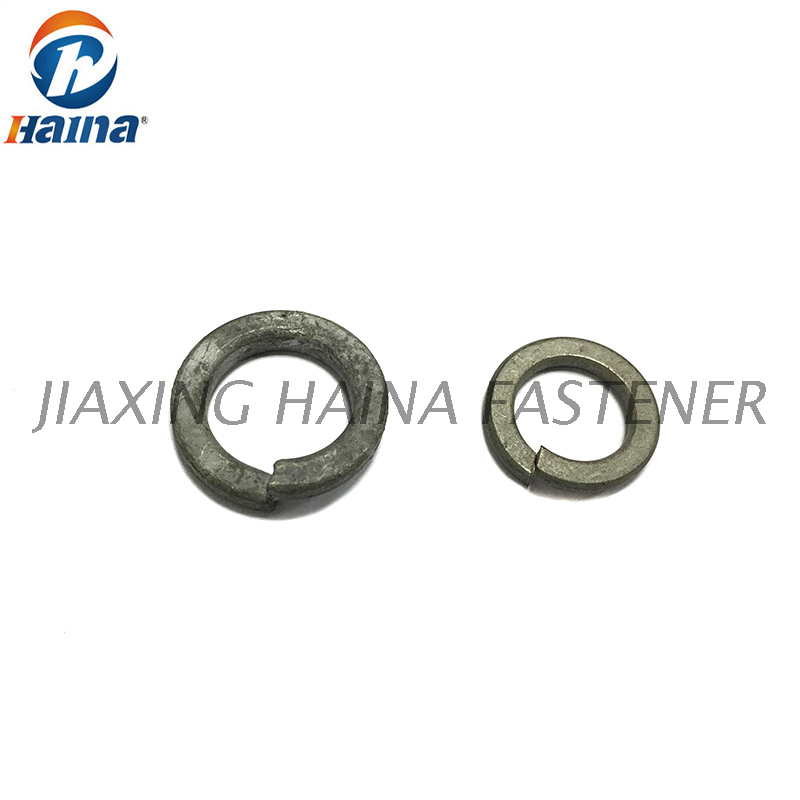

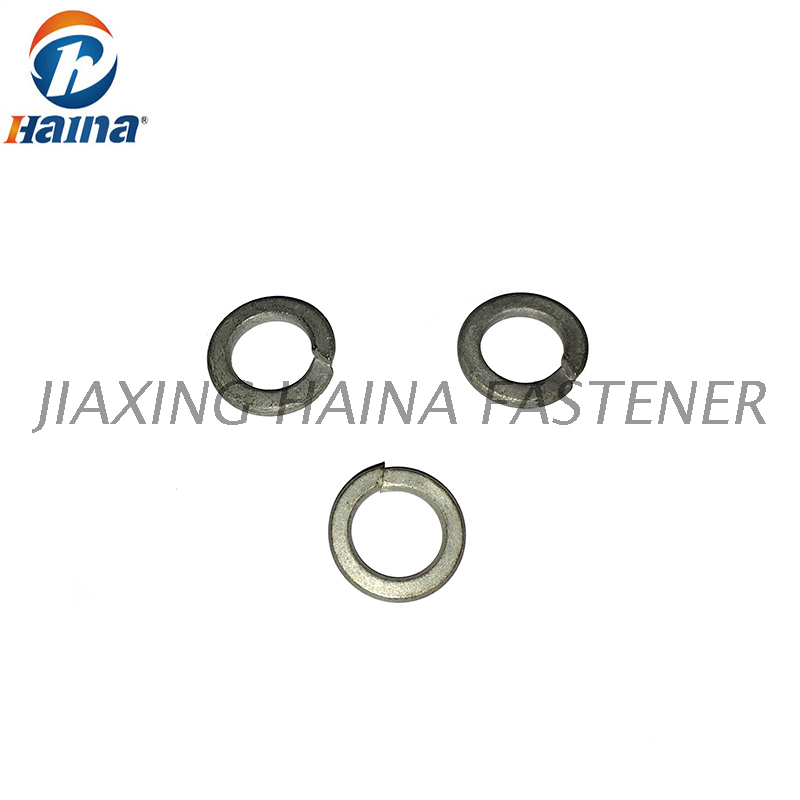

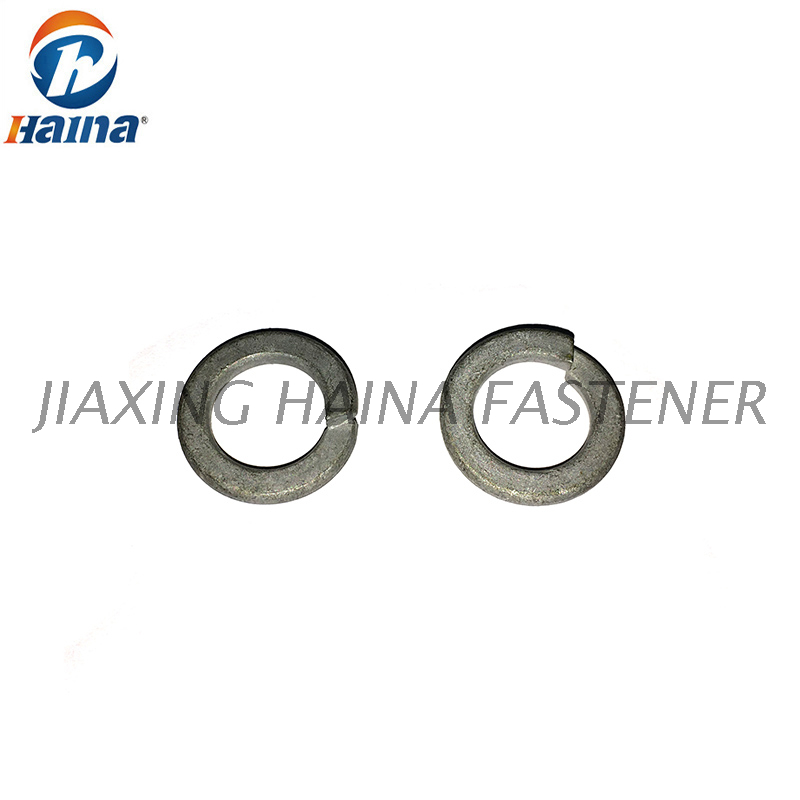

DIN127 GB93 HDG Grade 4.8 Carbon Steel Spring Washer
DIN127 Spring Lock Washers with Square End is one of our common standard wahsers. It's different from DIN125 flat washer. Spring lock washer with square end or tang ends.We can manufacture this product in accordance GB, DIN, ANSI, JIS, ISO, ASTM and customers' requirements.
Carbon Steel Spring Washer Material and chemical composition:
| Material No. | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ti≤ |
| Q195 | 0.12 | 0.3 | 0.5 | 0.035 | 0.04 | — |
| Q235 | 0.22 | 0.35 | 1.4 | 0.04 | 0.05 | — |
| Q275 | 0.24 | 0.35 | 1.5 | 0.45 | 0.05 | — |
| Q345 | 0.2 | 0.5 | 1.7 | 0.035 | 0.035 | 0.2 |
| Q500 | 0.18 | 0.6 | 1.8 | 0.03 | 0.025 | 0.2 |
| Q550 | 0.18 | 0.6 | 1.8 | 0.03 | 0.03 | 0.2 |
Carbon Steel Spring Washer Specification:
| Size | M4 | M5 | M6 | M7 | M8 | M10 |
| d1 max | 4.10 | 5.10 | 6.10 | 7.10 | 8.10 | 10.20 |
| d2 max | 7.60 | 9.20 | 11.80 | 12.80 | 14.80 | 18.10 |
| s max | 0.90 | 1.20 | 1.60 | 1.60 | 2.00 | 2.20 |
Carbon Steel Spring Washer Application:
Floor, bearing plates,metal structures, railings,profiles, brackets,walls,machines, beams, etcelectric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, open places, etc.
DIN127 GB93 HDG Grade 4.8 Carbon Steel Spring Washer
DIN127 Spring Lock Washers with Square End is one of our common standard wahsers. It's different from DIN125 flat washer. Spring lock washer with square end or tang ends.We can manufacture this product in accordance GB, DIN, ANSI, JIS, ISO, ASTM and customers' requirements.
Carbon Steel Spring Washer Material and chemical composition:
| Material No. | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ti≤ |
| Q195 | 0.12 | 0.3 | 0.5 | 0.035 | 0.04 | — |
| Q235 | 0.22 | 0.35 | 1.4 | 0.04 | 0.05 | — |
| Q275 | 0.24 | 0.35 | 1.5 | 0.45 | 0.05 | — |
| Q345 | 0.2 | 0.5 | 1.7 | 0.035 | 0.035 | 0.2 |
| Q500 | 0.18 | 0.6 | 1.8 | 0.03 | 0.025 | 0.2 |
| Q550 | 0.18 | 0.6 | 1.8 | 0.03 | 0.03 | 0.2 |
Carbon Steel Spring Washer Specification:
| Size | M4 | M5 | M6 | M7 | M8 | M10 |
| d1 max | 4.10 | 5.10 | 6.10 | 7.10 | 8.10 | 10.20 |
| d2 max | 7.60 | 9.20 | 11.80 | 12.80 | 14.80 | 18.10 |
| s max | 0.90 | 1.20 | 1.60 | 1.60 | 2.00 | 2.20 |
Carbon Steel Spring Washer Application:
Floor, bearing plates,metal structures, railings,profiles, brackets,walls,machines, beams, etcelectric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, open places, etc.
