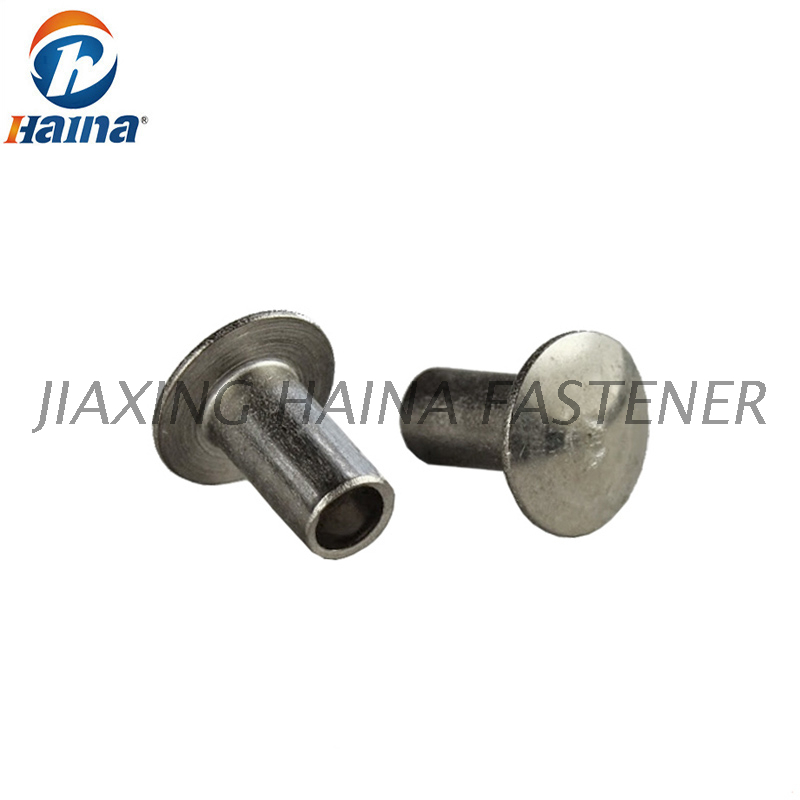

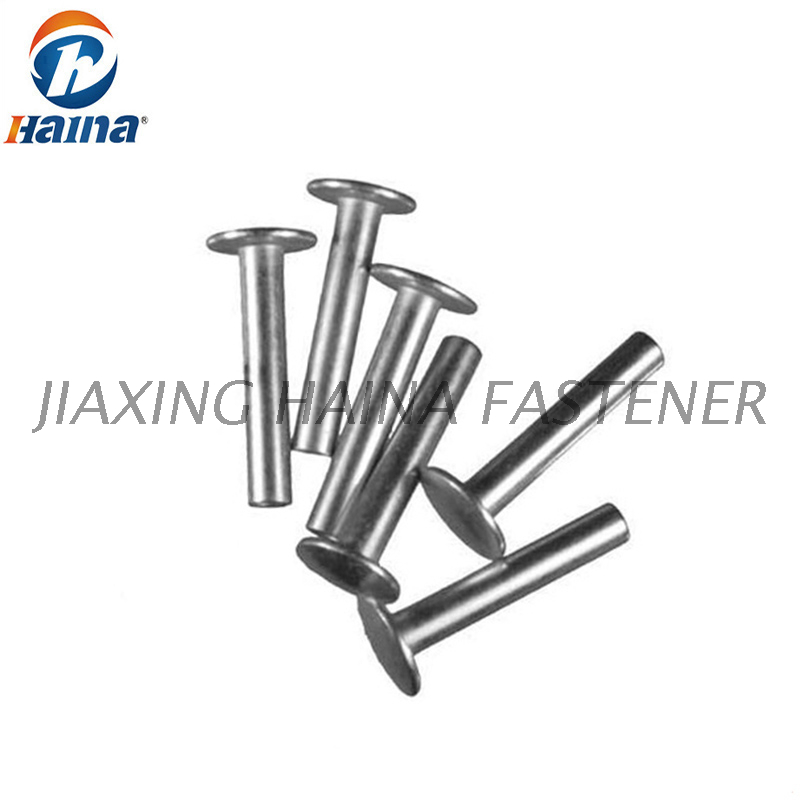

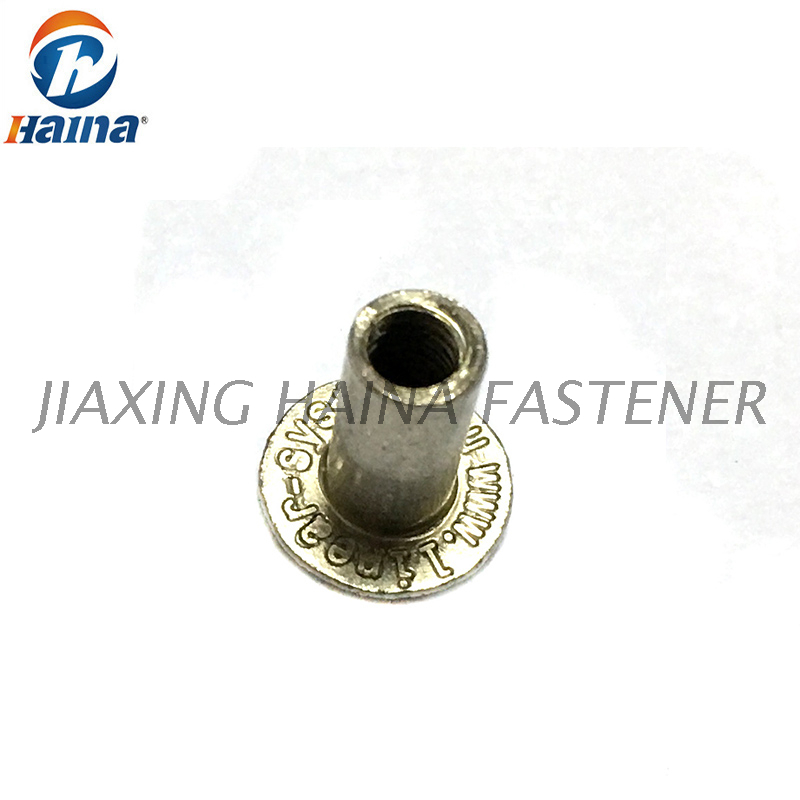

Stainless Steel Flat Head Semi-Tubular Rivets for Furniture
Semi-tubular rivets which is also known as tubular rivets, are similar to solid rivets. But they have a partial hole at the tip. The purpose of this hole is to reduce the amount of force needed for application by rolling the tubular portion outward. The force needed to apply a semitubular rivet is about 1/4 of the amount needed to apply a solid rivet. Tubular rivets can also be used as pivot points (a joint where movement is preferred) since the swelling of the rivet is only at the tail.
Products name | Nuts(Hex Nut,Heavy hex nut,Flange nut,Nylon lock nut, Weld nut Cap nut,Cage nut,Wing nut) | ||||||
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,F594 | ||||||
Steel Grade: DIN: Gr.4,5,6,8.8,10,; SAE: Gr.2,5,8; ASTM: A563 | |||||||
Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
Production Process | M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener | ||||||
Customized Products Lead time | Busy season:15-30days,Slack seaon:10-15days | ||||||
Stock Products | Carbon steel:DIN934,DIN6923,DIN928,DIN929,ISO4032,Cage nut,Cap nut Stainless steel: All DIN Or GB Standard stainless steel Nut | ||||||
Free Samples for standard fastener | |||||||
For more information visit: www.hainafastener.com |
Application:
Cloth decoration
Stainless Steel Flat Head Semi-Tubular Rivets for Furniture
Semi-tubular rivets which is also known as tubular rivets, are similar to solid rivets. But they have a partial hole at the tip. The purpose of this hole is to reduce the amount of force needed for application by rolling the tubular portion outward. The force needed to apply a semitubular rivet is about 1/4 of the amount needed to apply a solid rivet. Tubular rivets can also be used as pivot points (a joint where movement is preferred) since the swelling of the rivet is only at the tail.
Products name | Nuts(Hex Nut,Heavy hex nut,Flange nut,Nylon lock nut, Weld nut Cap nut,Cage nut,Wing nut) | ||||||
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,F594 | ||||||
Steel Grade: DIN: Gr.4,5,6,8.8,10,; SAE: Gr.2,5,8; ASTM: A563 | |||||||
Finishing | Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated | ||||||
Production Process | M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener | ||||||
Customized Products Lead time | Busy season:15-30days,Slack seaon:10-15days | ||||||
Stock Products | Carbon steel:DIN934,DIN6923,DIN928,DIN929,ISO4032,Cage nut,Cap nut Stainless steel: All DIN Or GB Standard stainless steel Nut | ||||||
Free Samples for standard fastener | |||||||
For more information visit: www.hainafastener.com |
Application:
Cloth decoration
Nominal Shank Diameter | Shank Diameter D | Head Style | Head Diameter A | Head Thickness H | Hole Diameter B | Hole Depth C | Suggested Clinch Allowance | Hole Dia. in Assembly | ||||
Min. | Max. | Basic | Tol. | Basic | Tol. | Min. | Max | |||||
1/16 | 0.058 | 0.061 | Oval | 0.109 | ± .005 | 0.017 | ± .002 | 0.039 | 0.044 | 0.046 | 0.04 | 0.067 |
1/16 | 0.058 | 0.061 | Truss | 0.125 | ± .005 | 0.017 | ± .002 | 0.039 | 0.044 | 0.046 | 0.04 | 0.067 |
3/32 | 0.085 | 0.089 | Oval | 0.147 | ± .005 | 0.023 | ± .003 | 0.062 | 0.068 | 0.064 | 0.045 | 0.093 |
3/32 | 0.085 | 0.089 | Truss | 0.187 | 0.005 | 0.023 | ± .003 | 0.062 | 0.068 | 0.064 | 0.045 | 0.093 |
3/32 | 0.095 | 0.099 | Oval | 0.156 | ± .005 | 0.023 | ± .003 | 0.07 | 0.076 | 0.077 | 0.05 | 0.1 |
3/32 | 0.095 | 0.099 | Truss | 0.187 | ± .005 | 0.029 | ± .003 | 0.07 | 0.076 | 0.077 | 0.05 | 0.1 |
1/8 | 0.118 | 0.123 | Oval | 0.218 | ± .005 | 0.034 | ± .004 | 0.084 | 0.09 | 0.094 | 0.075 | 0.128 |
1/8 | 0.118 | 0.123 | Truss | 0.281 | ± .005 | 0.034 | ± .004 | 0.084 | 0.09 | 0.094 | 0.075 | 0.128 |
9/64 | 0.141 | 0.146 | Oval | 0.234 | ± .005 | 0.04 | ± .005 | 0.1 | 0.107 | 0.126 | 0.092 | 0.152 |
9/64 | 0.141 | 0.146 | Truss | 0.312 | ± .006 | 0.04 | ± .005 | 0.1 | 0.107 | 0.126 | 0.092 | 0.152 |
5/32 | 0.151 | 0.156 | Oval | 0.312 | ±..006 | 0.046 | ±..005 | 0.11 | 0.117 | 0.155 | 0.096 | 0.165 |
5/32 | 0.151 | 0.156 | Truss | 0.328 | ± .006 | 0.046 | ± .005 | 0.11 | 0.117 | 0.155 | 0.096 | 0.165 |
3/16 | 0.182 | 0.188 | Oval | 0.312 | ±..006 | 0.06 | ±..005 | 0.134 | 0.141 | 0.155 | 0.12 | 0.196 |
3/16 | 0.182 | 0.188 | Truss | 0.375 | ±..006 | 0.06 | ±..005 | 0.134 | 0.141 | 0.155 | 0.12 | 0.196 |
1/4 | 0.244 | 0.252 | Oval | 0.437 | ± .007 | 0.068 | ± .007 | 0.176 | 0.184 | 0.219 | 0.157 | 0.265 |
1/4 | 0.244 | 0.252 | Truss | 0.5 | ± .007 | 0.078 | ± .007 | 0.176 | 0.184 | 0.219 | 0.157 | 0.265 |
5/16 | 0.302 | 0.31 | Oval | 0.5 | ± .008 | 0.093 | ± .007 | 0.211 | 0.219 | 0.243 | 0.188 | 0.328 |
5/16 | 0.302 | 0.31 | Truss | 0.562 | ± .008 | 0.093 | ± .007 | 0.211 | 0.219 | 0.243 | 0.188 | 0.328 |
3/8 | 0.37 | 0.38 | Oval | 0.5 | ± .008 | 0.125 | ± .007 | 0.276 | 0.286 | 0.281 | 0.219 | 0.39 |
3/8 | 0.37 | 0.38 | Truss | 0.75 | ± .010 | 0.156 | ± .007 | 0.276 | 0.286 | 0.281 | 0.219 | 0.39 |
Note: Special Sizes or Tolerances Quoted upon request. |
