HNF
HINA2025021207

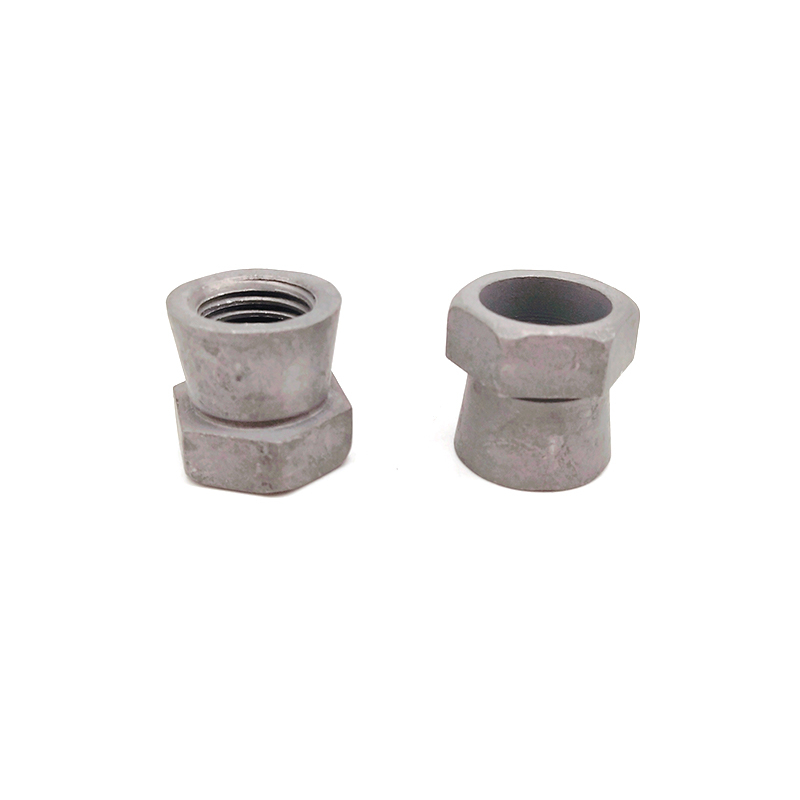

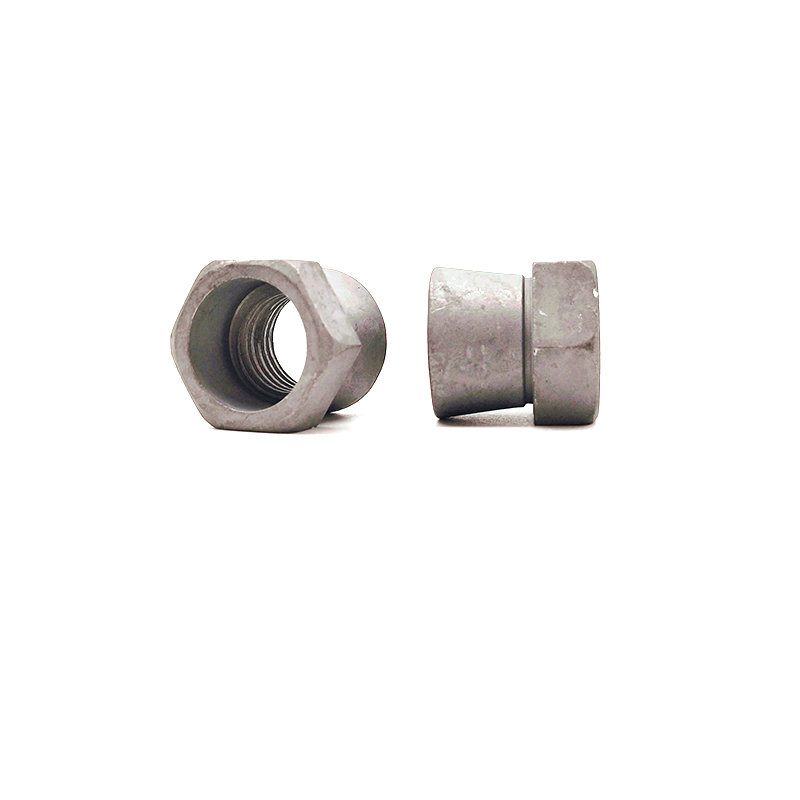

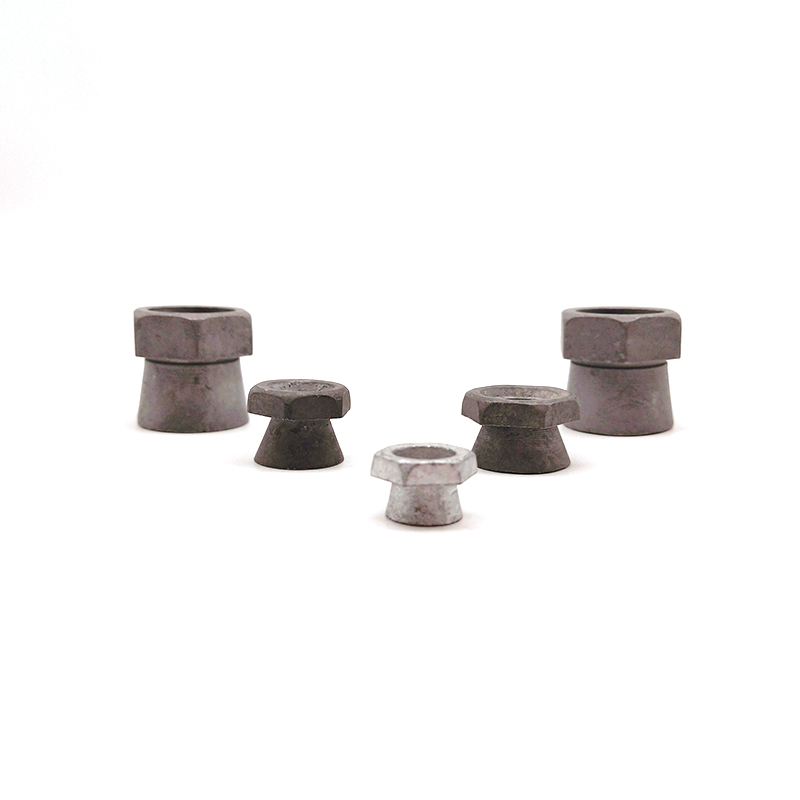

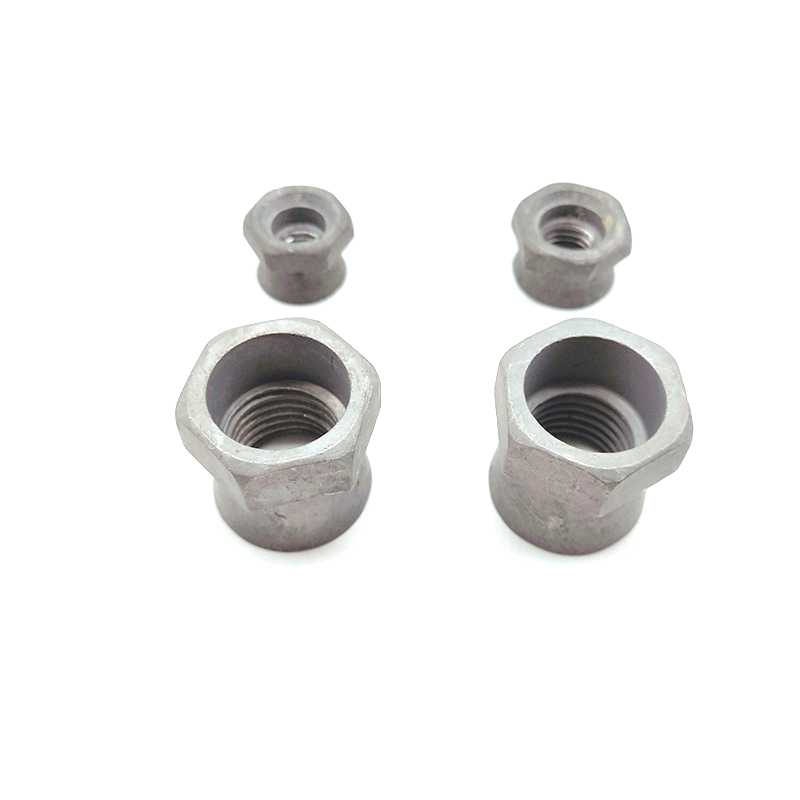

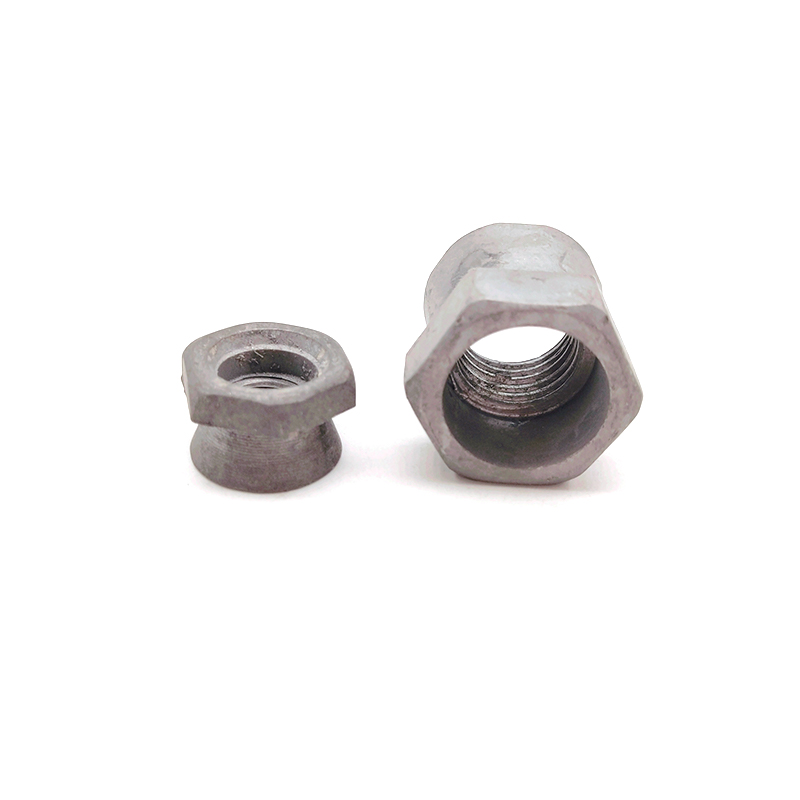

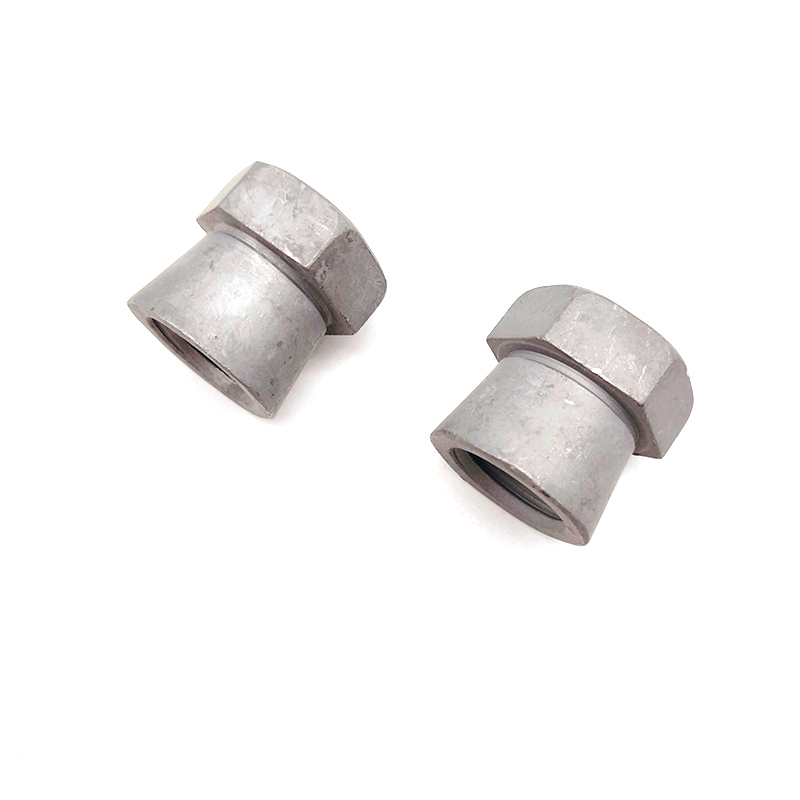

M8 M10 M12 M16 Stainless Steel 304 Security Shear Nut
The shear nuts is also a kind of nut. It has a bowl and a hex nut, combination. They are designed to be a permanent fixture after installation. The hexagonal part of the nut shears off at a pre-determined torque leaving only a tamperproof non-removeable cone. Available in either bright zinc plated steel (EN1A) or stainless steel (304).
Stainless steel Shear Nut Mechanical Properties:
| Size | M6 | M8 | M10 | M12 | M16 | M20 | |
| Shear Torque | LB/FT | 5-9 | 10-15 | 23-28 | 38-44 | 54-60 | 72-82 |
| NM | 7-14 | 14-20 | 31-38 | 52-60 | 74-82 | 100-113 |
| Stainless steel Shear Nut Material and chemical composition: | |||||||||
| Stainless steel material including SS201, SS304,SS316, SS316L | |||||||||
| GRADE | CHEMICAL COMPOSITION1(%MAXIMA UNLESS STATED) | ||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | ||
| A1 | 0.12 | 1 | 6.5 | 0.2 | 0.15/0.35 | 16-19 | 0.7 | 1.75-2.25 | |
| A2 | 0.1 | 1 | 2 | 0.05 | 0.03 | 15-20 | 5 | 4 | |
| A3 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17-19 | 5 | 1 | |
| A4 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18.5 | 2.3 | 4 | |
| A5 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18.5 | 2.7 | 1 | |
| C1 | 0.09-0.15 | 1 | 1 | 0.05 | 0.03 | 11.5-14 | - | - | |
| C3 | 0.17-0.25 | 1 | 1 | 0.04 | 0.03 | 16-18 | - | - | |
| C4 | 0.08-0.15 | 1 | 1.5 | 0.06 | 0.15-0.35 | 12-14 | 0.8 | ||
| F1 | 0.12 | 1 | 1 | 0.04 | 0.03 | 15-18 | 10 | ||
Application:
Shear Nut offer an inexpensive solution to many types of theft.
They are used to prevent the theft of the unanthorised relocation of seating or something.
They are installed by using standard tooling. When the nut or bolt is fully tighened, the hex drive head is designed to sgear off the additional torque is applied, leaving the sear bolt or the threaded conicak lower collar of the shear nut in position on the standard bolt or stud thread, so making the products permanent fixed.
