DIN7337
HNF
2021010701

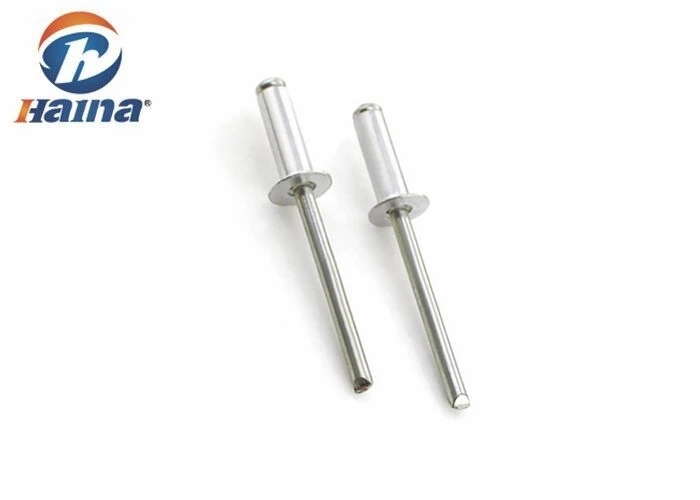

DIN7337 Aluminium/ Stainless Steel Open Type Waterproof Multi Grip Pop Rivet/ Dome Head Blind Rivet
Product Description
Open blind rivets are designed for quick and easy fastening, Open rivets have a variety of materials to choose from, such as
AL.5050, AL.5052, AL.5154, AL.5056, SS304(A2), SUS 316(A4), Steel and copper.
Specific benefits such as joint strength, material compatibility, corrosion resistance and cost are provided. Along the same line,
the finishing options are huge, from paints to different protective coatings, and the customization possibilities are endless.
Application
The core rivets are mainly used in cases where only one side has access to the connector. The rivets are placed in a drill hole and are set
by pulling the shaft head into the rivet body, expanding the rivet body and expanding it on the back. When the head of the core rod reaches
the surface of the blind edge material, the pull is resisted, and at a predetermined force, the core bar breaks at its break point, also known as
the blind setting. The tight connection formed by the main body of the rivet remains, and the head of the spindle is still encased on the defect
side, although various forms can be used and the spindle stem is ejected.
Advantage
All of our fastener are designed and manufactured according to buyers' specification and performance. And we improve the service life of
fasteners through durability testing and key technical design. Also we have wide range of parts selection and Competitive prices with
professional factory supply. We can also support customized services according to the samples and drawings provided.
Materials | Grades/ Specification | |
•Stainless Steel | 303 304 304L 309 310 316 316L 317L 321 330 347 410 416 422 430 431 440C 501HT | SAE J429(Gr.2,Gr.5,Gr8) |
ASTM A193 Grade B8 ASTM A193 Grade B8M ASTM A194 Grade 8 ASTM A194 Grade 8M ASTM A320 Grade B8 ASTM A320 Grade B8M | A193/A193M(B6,B7,B8,B8M,B16) | |
•Carbon Steel | C1018 C1035 C1040 C1045 1215 ASTM A36 Q235 1117 12L14 ASTM A194 Grade 2H ASTM A194 Grade 2HM | A307(A,B,C) |
•Alloy Steel | 4130 4140 4340 8620 8740 ASTM A193 Grade B7 ASTM A193 Grade B7M ASTM A193 Grade B16 ASTM A194 Grade 7 | A325/A325M |
ASTM A194 Grade 7M ASTM A320 Grade L7 ASTM A320 Grade L7M SAE J429 Grade 8 | A449 | |
•Brass | H62 H65 H70 C28000 C27000 C26000 | A490/A490M |
•Aluminum | 6061 7075 | F568(5.6,8.8,10.9,12.9) |
